Schneider Electric 460R480 — Unclassified

Schneider 460R480 voltage transformer, 150 VA, 480 V, NEMA 1 (discontinued)

MPN460R480
Obsolete

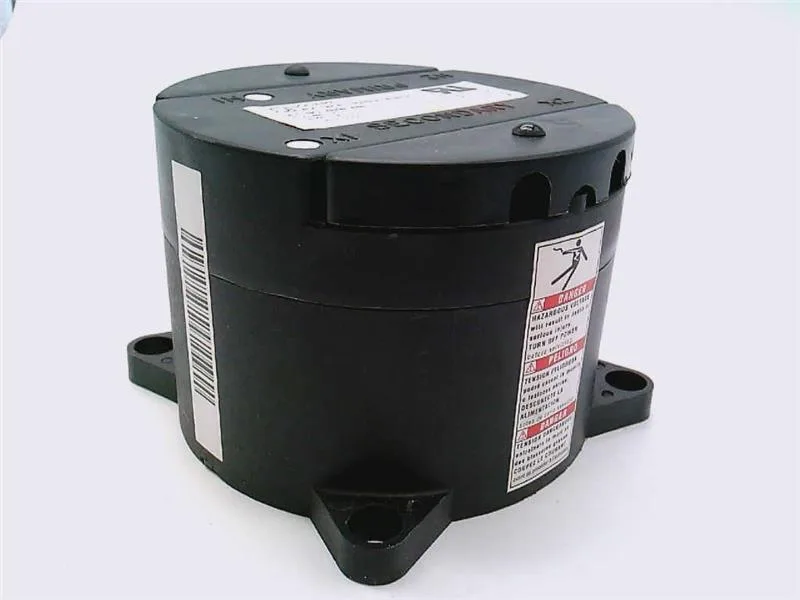

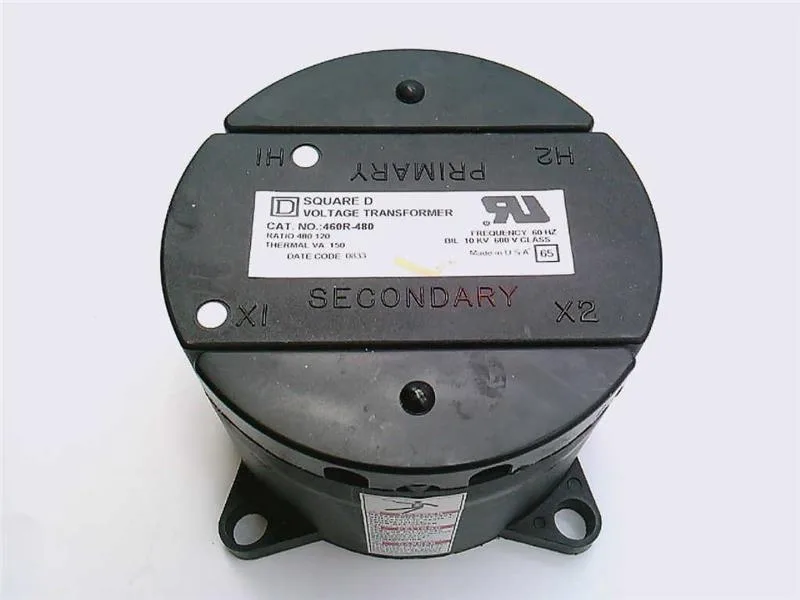

Schneider Electric 460R480 voltage transformer, 150 VA, 480 V primary, 4/1 ratio, 1-phase, NEMA 1 enclosure, UL Listed, discontinued.

Schneider Electric 460R480 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

460R480 — Electrical
ParameterValue
Phase1 phase
460R480 — Other specifications
ParameterValue
Ratio4/1
ProductVoltage transformer
Power rating150 VA
CertificationsUL Listed
Enclosure typeNEMA 1
Primary voltage480 V
Secondary voltage120 V
Electrical connectionStuds

Product details

Overview

The 460R480 is a Schneider voltage transformer rated 150 VA with a 4/1 ratio on a 480 V primary, housed in a NEMA 1 enclosure. It is UL Listed and built for single-phase potential transformer duty.

Schneider has discontinued the 460R480. An RFQ confirms current availability and lead time for line-down or last-time-buy needs.

Compared to the 9070T250D1SF41 — an active 250 VA industrial control transformer on a 120 V primary with an open device enclosure — the 460R480 delivers 150 VA at 480 V in a NEMA 1 enclosure, making it the correct choice for a 480 V potential transformer application where a NEMA 1 enclosure is required. The 9070T250D1SF41 suits 120 V control circuits at a higher VA but lacks the enclosure and the 4/1 ratio.

MPN
460R480
