Schneider Electric 470R288

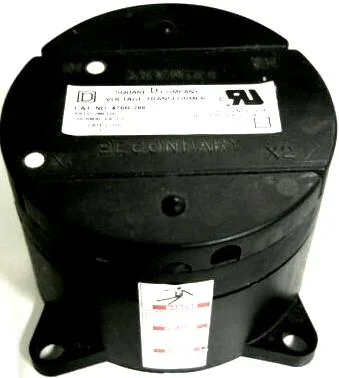

Schneider 470R288 voltage transformer, 150 VA, 288 V primary, NEMA 1

MPN470R288
Obsolete

Schneider 470R288 Electrical Control Transformers — now discontinued, supplied from remaining surplus and broker stock.

$944.71Ref. price · indicative, final on quote
Schneider Electric 470R288 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

470R288 specifications
ParameterValue
Enclosure typeNEMA 1
Primary voltage288 V
Secondary voltage120 V
Power rating150 VA
Phases1 phase
Electrical connectionStuds
CertificationsUL Listed
Ratio2.4/1
ProductVoltage transformer
Category15505-CLASS 4210 VT'S (LC 5101)

Product details

Overview

The 470R288 is a Schneider voltage transformer rated 150 VA with a 288 V AC primary to 500Y V AC secondary, ratio 2.4/1, in a NEMA 1 enclosure with stud terminals. It carries a UL Listing and is now discontinued, so sourcing runs through surplus and broker channels.

Selection and comparison

Compared to the 9070T250D1SF41, an open-frame industrial control transformer rated 250 VA with a 120 V primary, the 470R288 delivers 150 VA at a 288 V primary in a NEMA 1 enclosure — the 9070T250D1SF41 suits lower-voltage, higher-power applications without enclosure protection.

MPN
470R288
