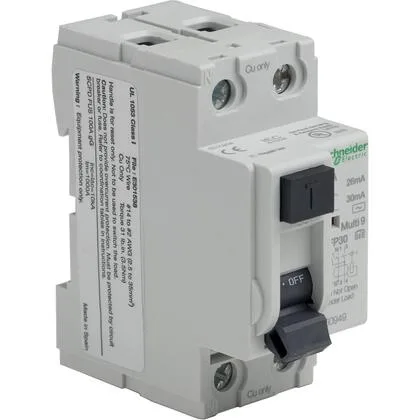

Schneider Electric 60949
MPN60949
Obsolete
GFP 2P 25A 30MA AC SIE 120/240V|GFP 2P 25A 30MA AC SIE 120/240V
$845.96Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Residual current circuit breaker (RCCB) |
| [Ue] rated operational voltage | 230/240 V AC 50 Hz 120/240 V AC 60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Line rated current | 25 A |
| Rated conditional short-circuit current | 10 kA |
| Network frequency | 50/60 Hz |
| Poles description | 2P |
| Utilisation category | AC-23A |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 conforming to IEC 60529 IPxx B conforming to IEC 60529 |
| Connection pitch | 0.7 in (18 mm) between phases |
All specifications
| Parameter | Value |
|---|---|
| Connections - terminals | Tunnel type terminals 0.004...0.05 in² (2.5...35 mm²) flexible Tunnel type terminals 0.004...0.05 in² (2.5...35 mm²) rigid |
| Relative humidity | 95 % 131 °F (55 °C) |
| Color | Gray |
| Depth | 3.0 in (75 mm) |
| Width | 1.4 in (36 mm) |
| Height | 3.2 in (81 mm) |
| Mechanical durability | 20000 cycles |
| Standards | IEC 61008 UL 1053 |
| Range | Multi9 |
| Category | US10DE200908 |
| 9 mm pitches | 4 |
| Tropicalisation | 2 |
| Local signalling | Fault indication |
| Neutral position | Left |
| Device short name | GFP |
| Tightening torque | 31.0 lbf.in (3.5 N.m) |
| Provision for padlocking | Padlockable |
| Earth-leakage sensitivity | 30 mA |
| Locking options description | Padlocking in OFF position |
| Earth-leakage protection class | Type AC-SIE |
| Ambient air temperature for storage | -40...158 °F (-40...70 °C) |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -13...140 °F (-25...60 °C) |
MPN
60949
