Schneider Electric 70-750E11-1
MPN70-750E11-1
Obsolete

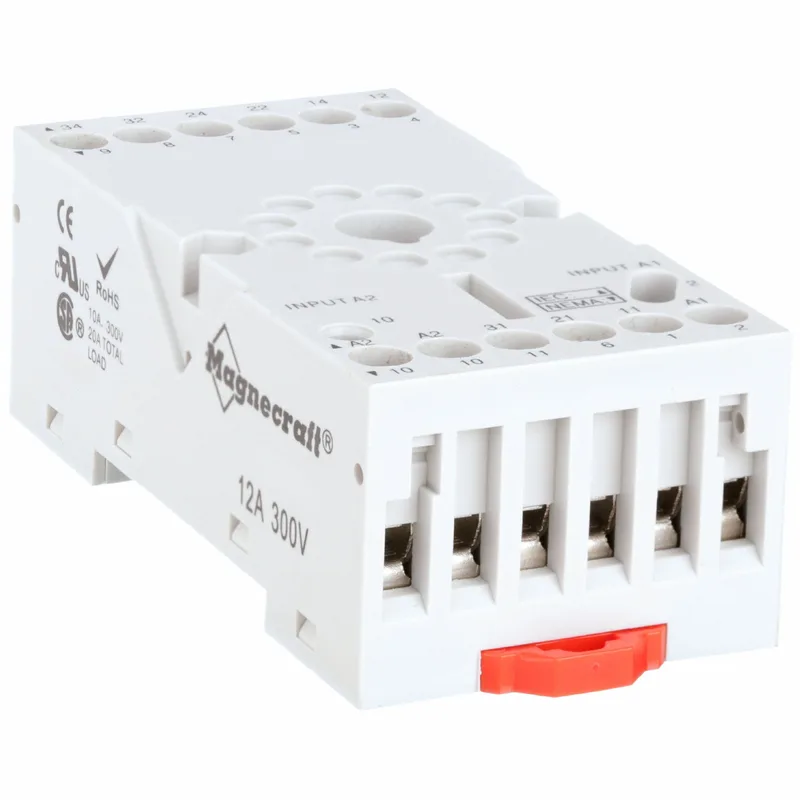

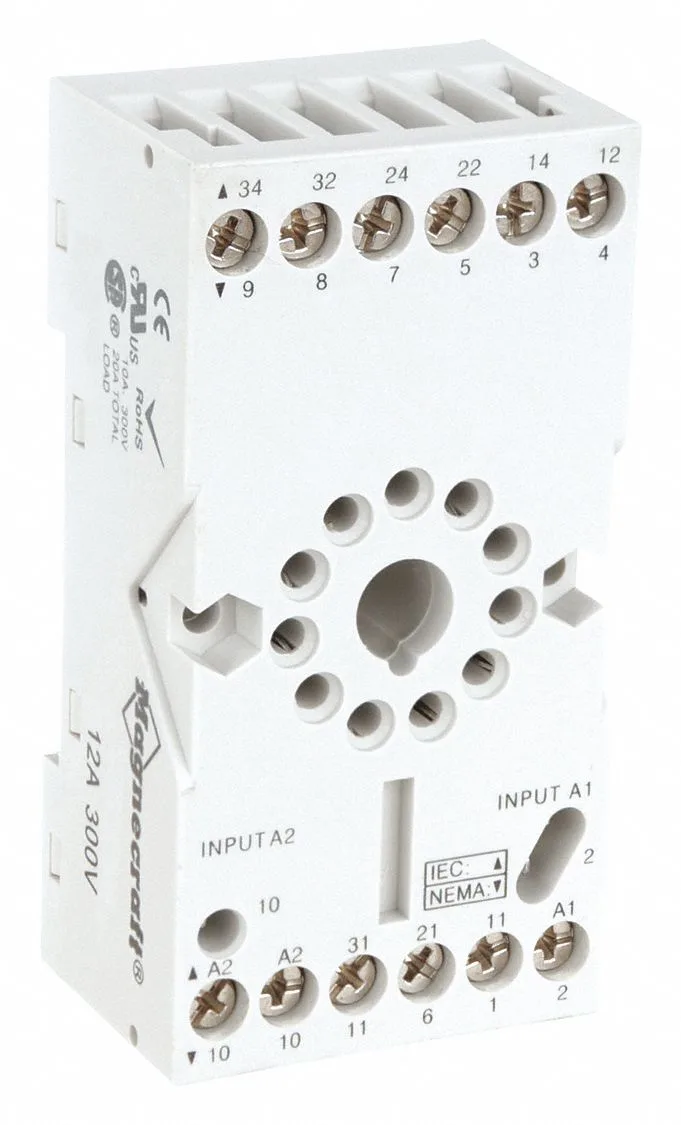

SCHNEIDER Relay Socket: 12 A Rating, DIN-Rail Socket Mounting, 11 Pins, B Socket, Std, Finger Safe
$10.58Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Socket |
| [Ue] rated operational voltage | 300 V |
| Current | 12 A |
| IP degree of protection | IP20 |
| Number of terminals | 11 |
| Connections terminals | Panel lift terminals, clamping connection capacity:2 x 2.5...2 x 4 mm², AWG 14...AWG 12 flexible with cable end |
| Contact terminal arrangement | Separate |
| Depth | 2.2 in (57 mm) |
| Width | 1.5 in (38 mm) |
| Product weight | 3.0 oz (85 g) |
| Category | US10CP221127 |
| Fixing mode | By screw M3.5, M3.5 panel Clip-on 35 mm DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Product range | Legacy |
| Switch function | 3PDT |
| Flame retardance | UL94-V0 |
| Tightening torque | < 0.8 N.m |
| Contact composition | 3 NO + 3 NC |
| Shape of screw head | Combination roundhead |
| Ambient air temperature for storage | -40...221 °F (-40...105 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
70-750E11-1
