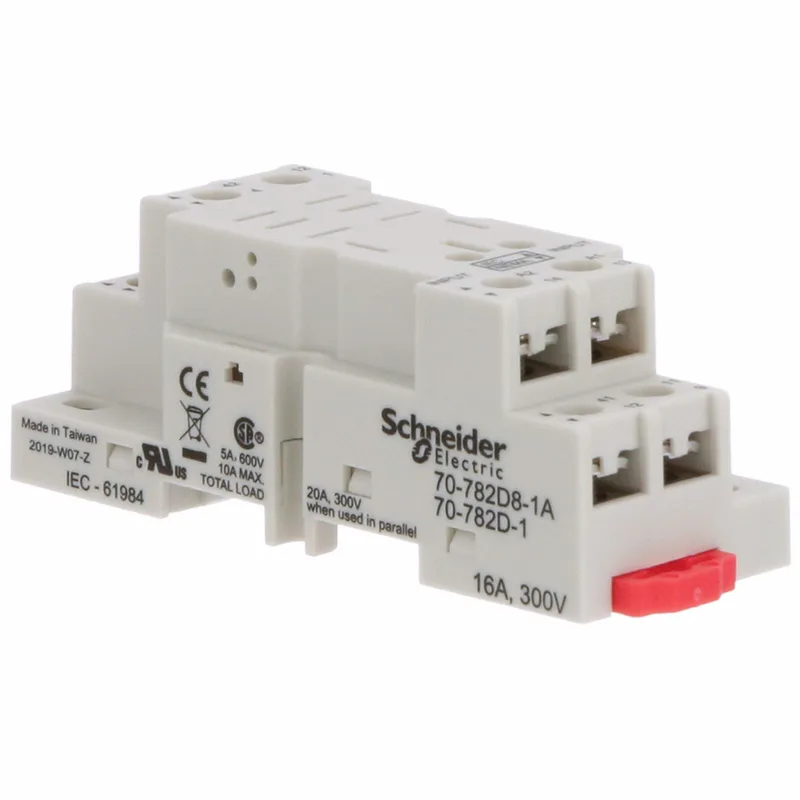

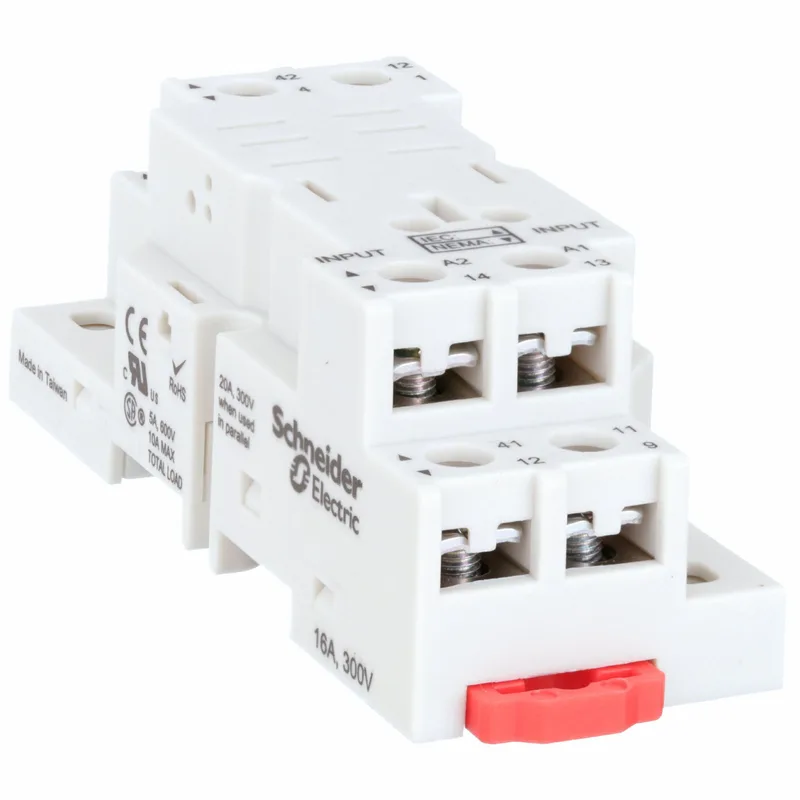

Schneider Electric 70-782D8-1A
MPN70-782D8-1A
Obsolete
Mounting Socket, 8 Blade, Screw Terminals, DIN Rail Mount|Mounting Socket, 8 Blade, 16 Amp, 300 Volt AC, Screw Terminals, DIN Rail Mount, 10 per Package
$11.47Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Socket |
| [Ue] rated operational voltage | 300 V |
| Current | 16 A |
| IP degree of protection | IP20 |
| Number of terminals | 8 |
| Connections terminals | screw clamp terminals solid for output screw clamp terminals stranded for output |
| Contact terminal arrangement | Mixed |
| Depth | 2.2 in (57 mm) |
| Width | 1.2 in (30 mm) |
| Product weight | 1.9 oz (55 g) |
| Category | US10CP221127 |
| Fixing mode | By screw M3.5, M3.5 panel Clip-on 35 mm symmetrical DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Product range | Legacy |
| Switch function | DPDT |
| Flame retardance | UL94-V0 |
| Tightening torque | < 0.8 N.m |
| Contact composition | 2 NO + 2 NC |
| Shape of screw head | Combination roundhead |
| Ambient air temperature for storage | -40...221 °F (-40...105 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
70-782D8-1A
