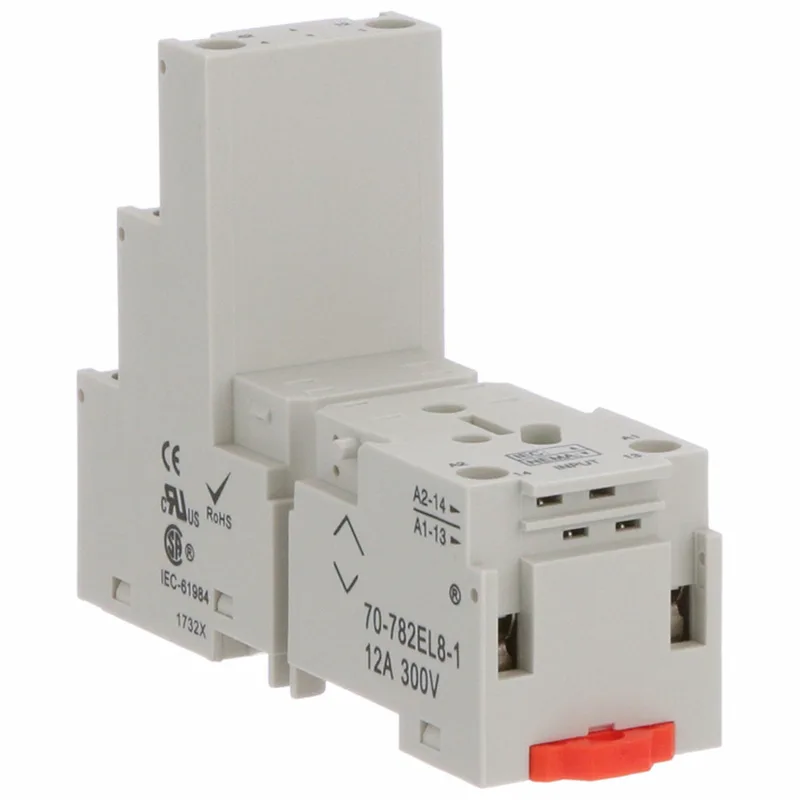

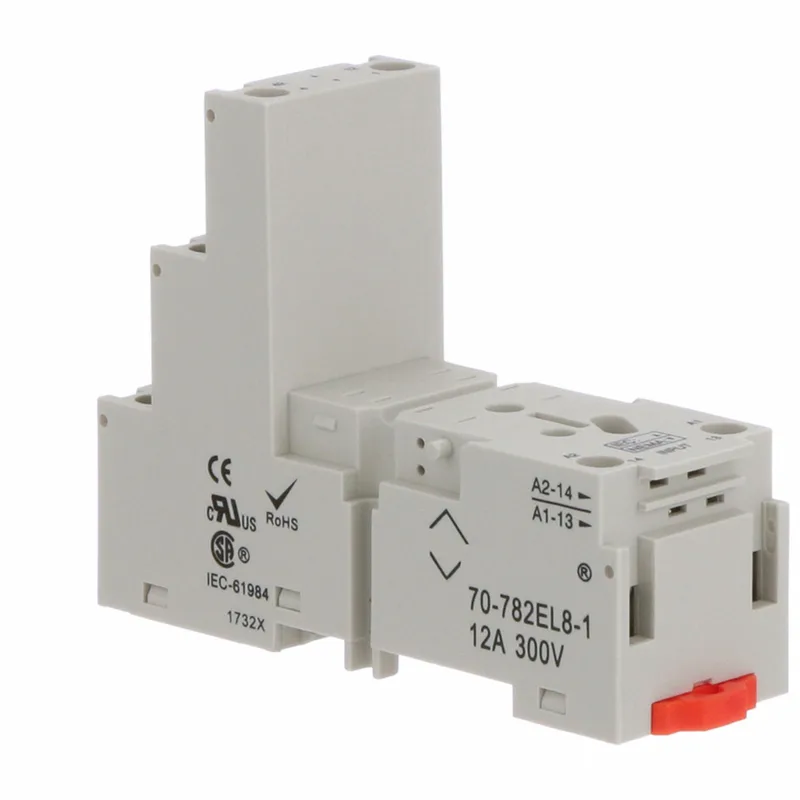

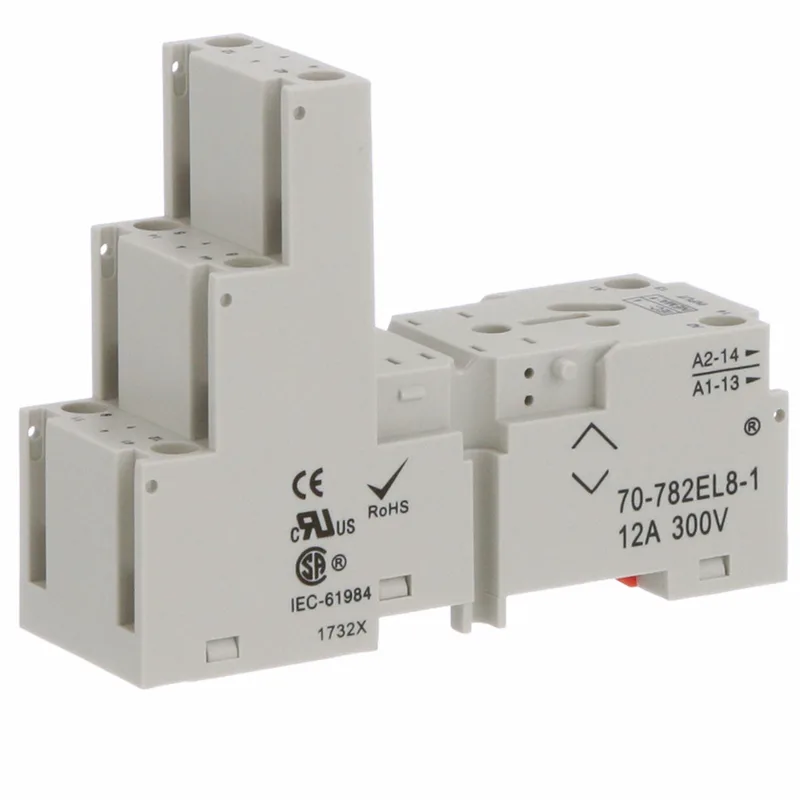

Schneider Electric 70-782EL8-1
MPN70-782EL8-1
Obsolete
Mounting Socket, 8 Blade, Screw Terminals, DIN Rail Mount|Mounting Socket, 8 Blade, 12 Amp, 300 Volt AC, Logic Style, Elevator Terminals, DIN Rail Mount, 10 per Package
$9.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Socket |
| [Ue] rated operational voltage | 300 V |
| Current | 12 A |
| IP degree of protection | IP20 |
| Number of terminals | 8 |
| Connections terminals | lift terminals flexible lift terminals solid |
| Contact terminal arrangement | Separate |
| Depth | 3.1 in (79 mm) |
| Width | 1.06 in (26.9 mm) |
| Product weight | 1.6 oz (46 g) |
| Category | US10CP221127 |
| Fixing mode | By screw M3.5, M3.5 panel Clip-on 35 mm symmetrical DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Product range | Legacy |
| Switch function | DPDT |
| Flame retardance | UL94-V0 |
| Tightening torque | < 0.8 N.m |
| Contact composition | 2 NO + 2 NC |
| Shape of screw head | Combination roundhead |
| Ambient air temperature for storage | -40...221 °F (-40...105 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
70-782EL8-1
