Schneider Electric 70750EL81
MPN70750EL81

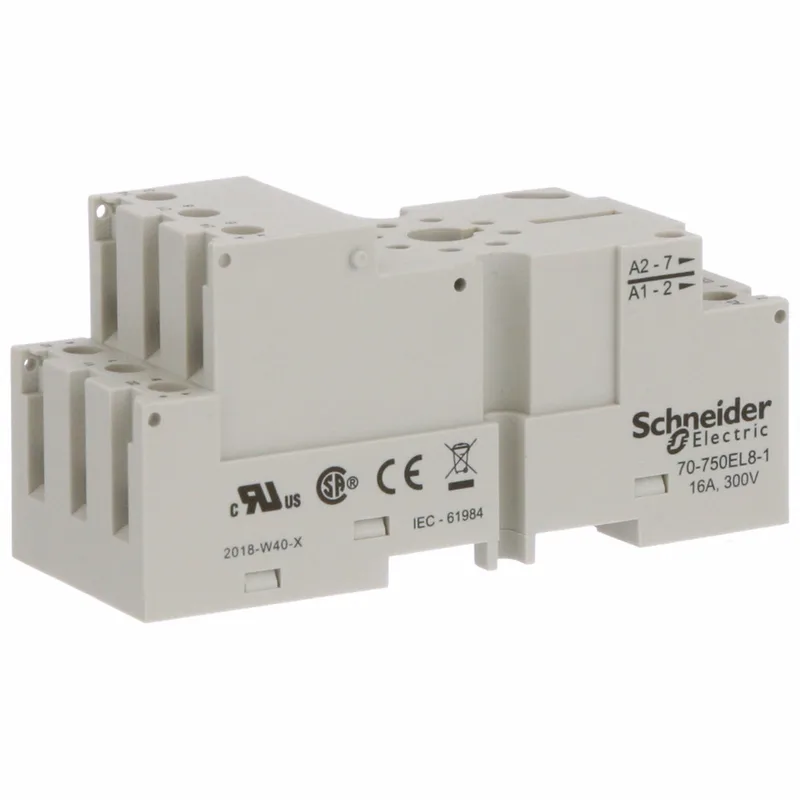

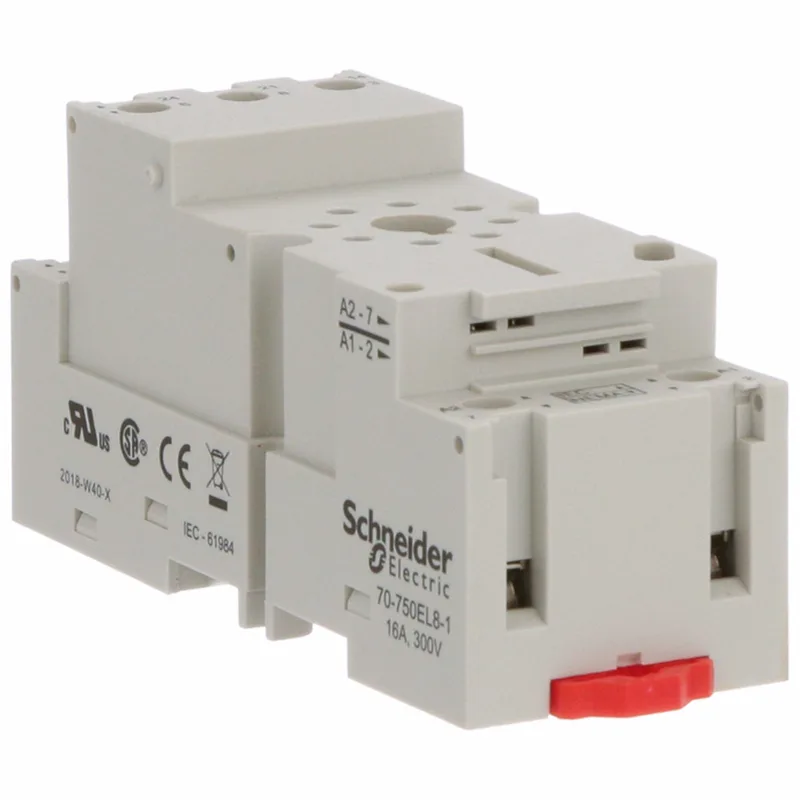

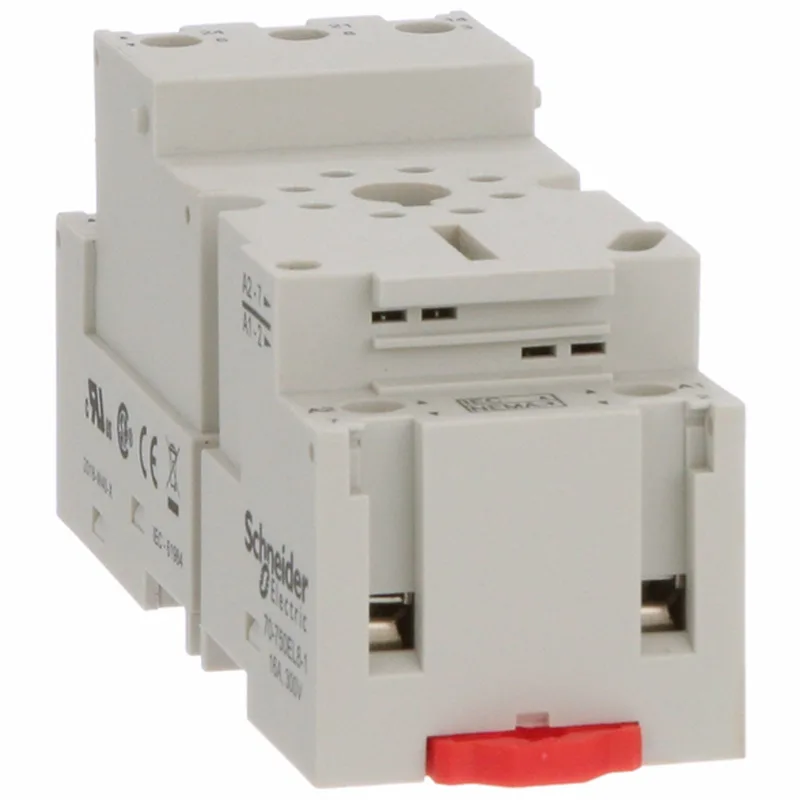

Square D 70750EL81 Relay Socket|Square D 70750EL81 Relay Socket
$10.07 – $12.49Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | DIN-Rail |
| Terminal_type | Screw |
| Contact_terminal_arrangement | Separate |
| Depth | 56.896 |
| Width | 36.068 |
| Height | 44.958 |
| Display_color_depth | White |
| Standards | CE Certified; CSA Certified; UL Listed |
| IP rating | IP20 |
| Pin count | 8 |
| Socket_code | A |
| Socket_type | Standard, Finger Safe |
| Contact form | DPDT |
| Socket_design | Standard |
| Is_finger_safe | true |
| Contact rating | 16 |
| Switching current | 16 |
| Temp operating range | 131 °F |
MPN
70750EL81
