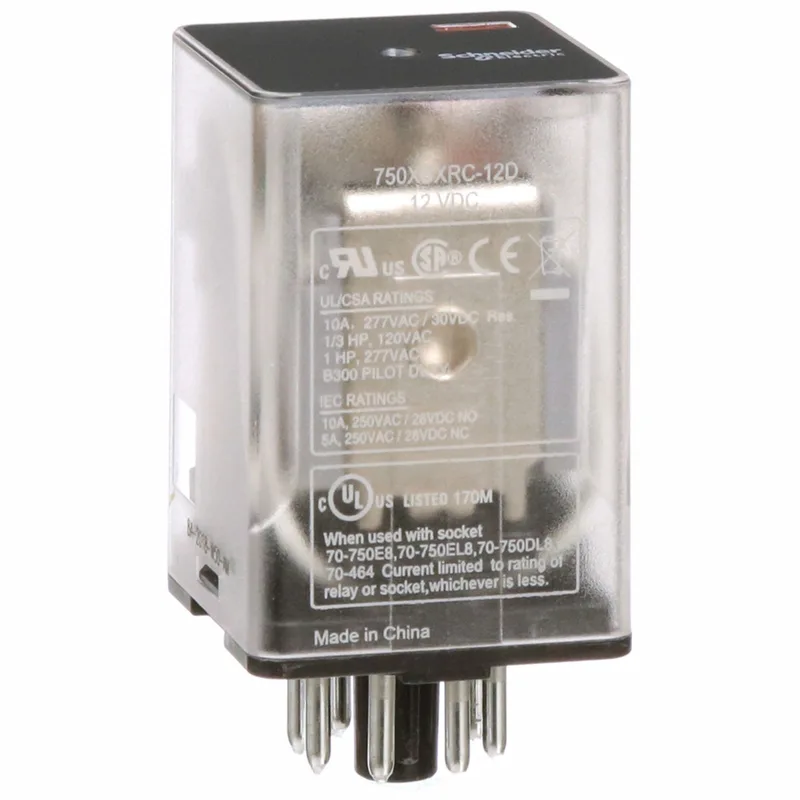

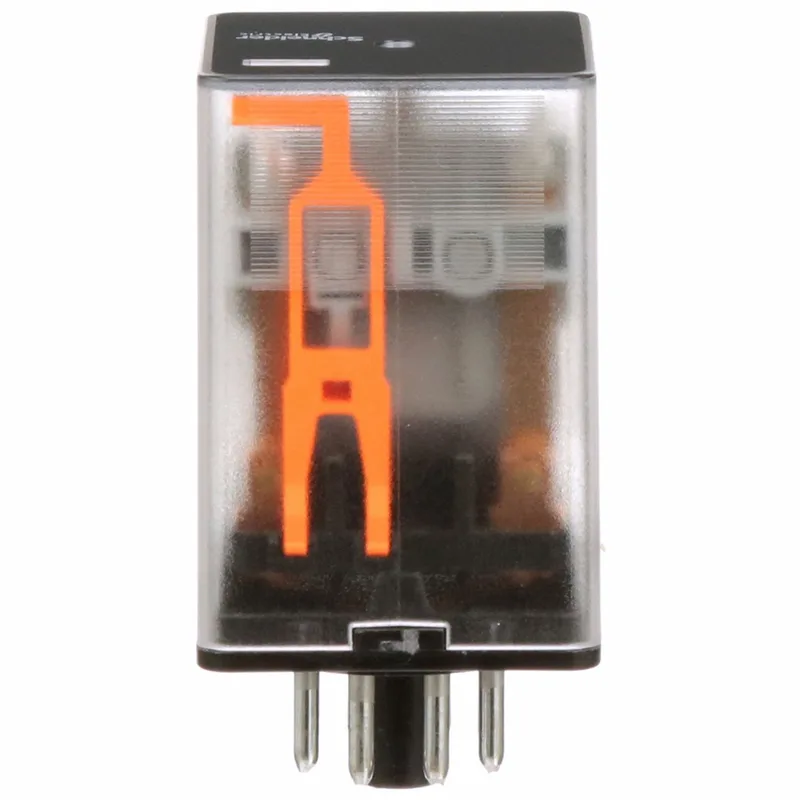

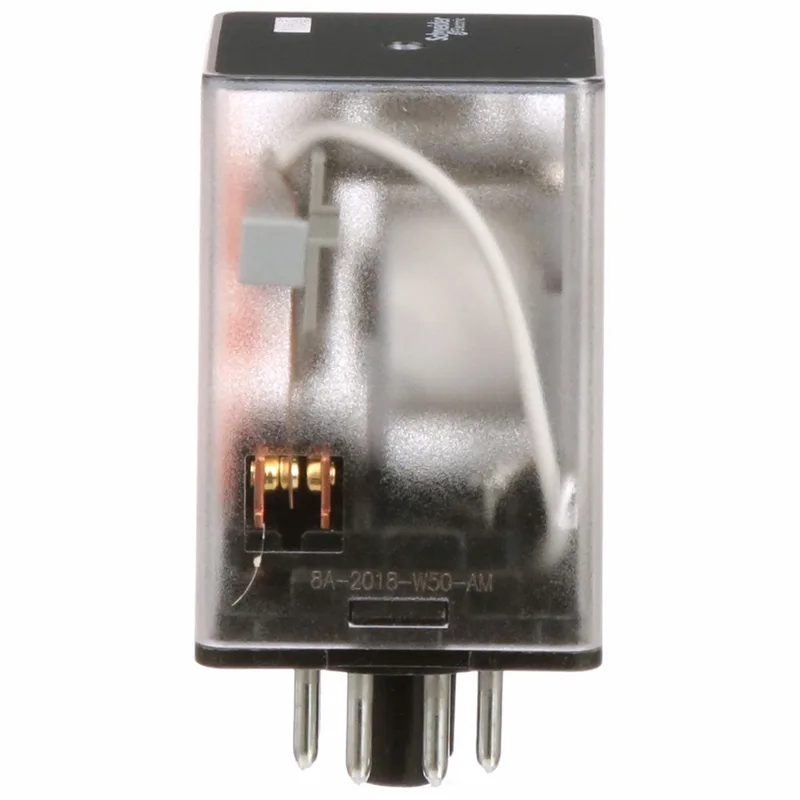

Schneider Electric 750XBXRC12D
MPN750XBXRC12D
Square D 750XBXRC12D 750 Octal Relay Dpdt 10A 12VDC|Square D 750XBXRC12D 750 Octal Relay, Dpdt, 10A, 12VDC
$23.27 – $59.98Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 750R Series |
| Dielectric | 1,500 V AC Between Contacts; 2,000 V AC Between Poles; 2,500 V AC Between Coil and Contact |
| Motor_rated | yes |
| Socket_code | A |
| Contact form | DPDT |
| Sealing_type | Enclosed |
| Horsepower | 1/3 hp |
| Mounting | Socket |
| Terminal_type | Pin |
| Coil voltage | 12 |
| Terminal_count | 8 |
| Contact rating | 5 |
| Has_push_to_test | No Test Button |
| Switching current | 10 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 5 |
MPN
750XBXRC12D
