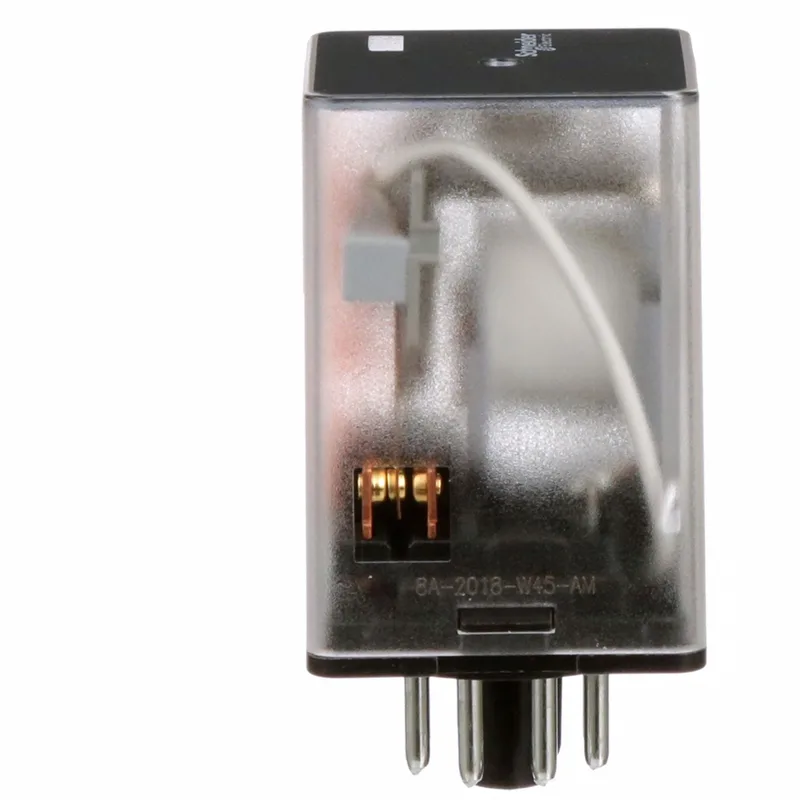

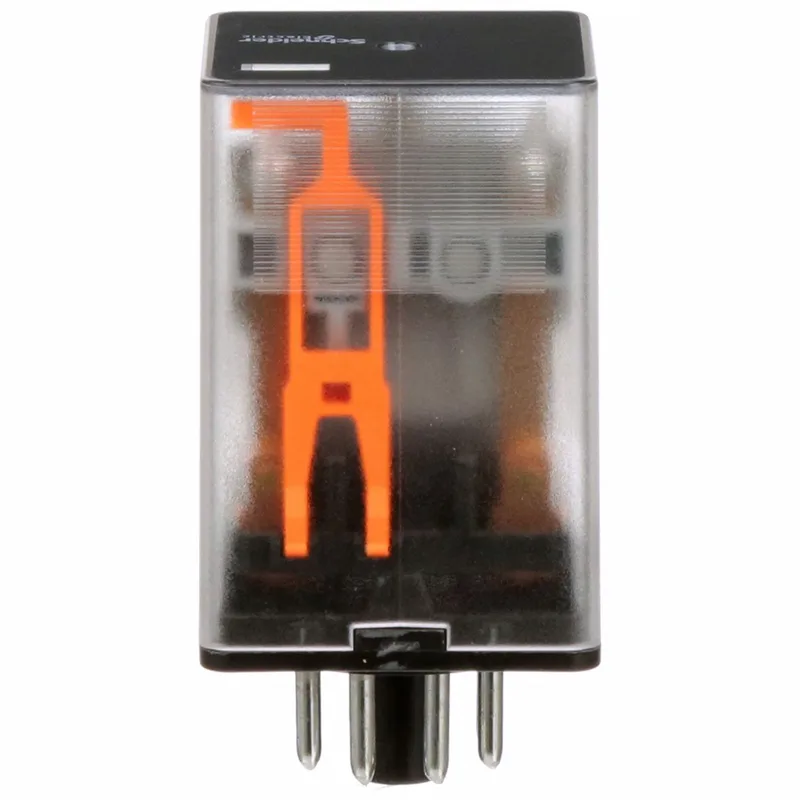

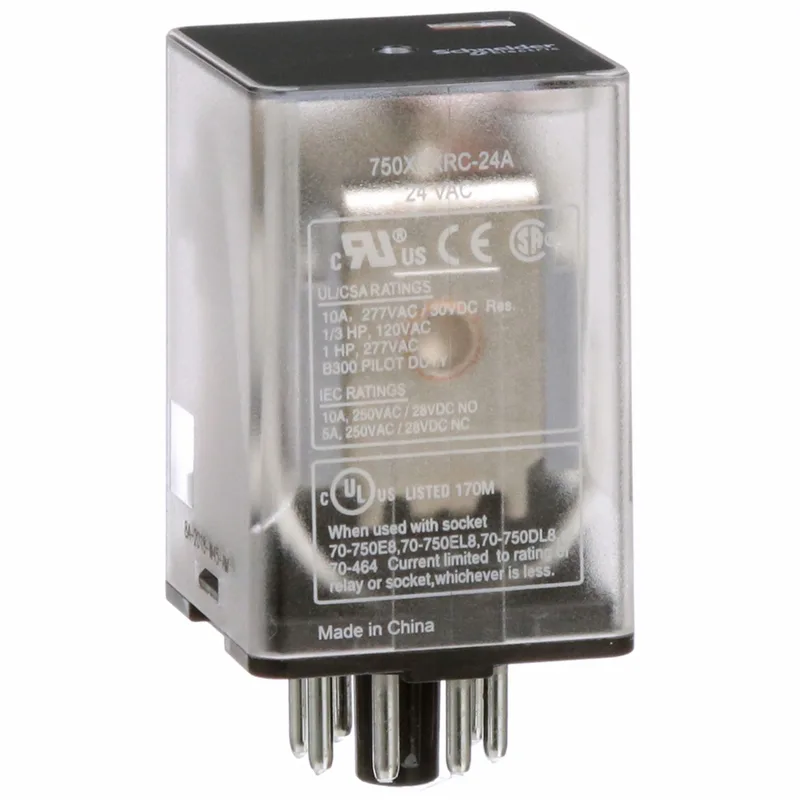

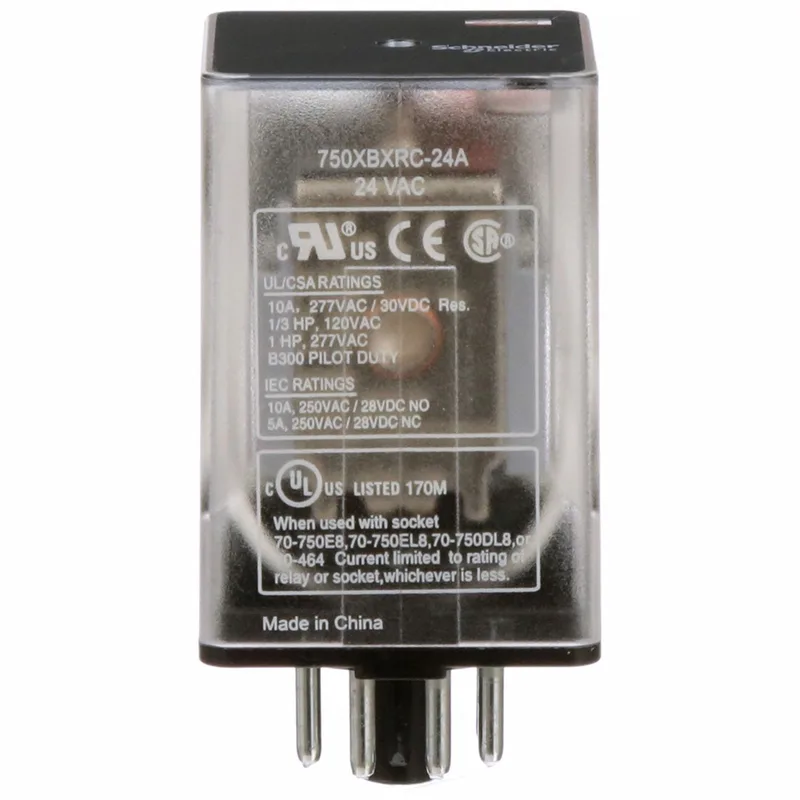

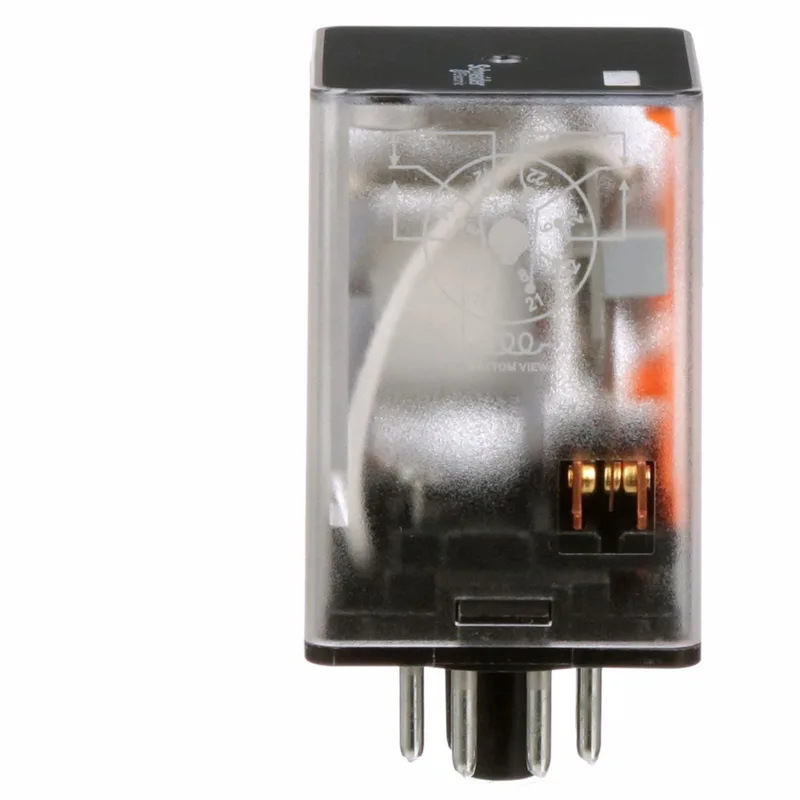

Schneider Electric 750XBXRC24A
MPN750XBXRC24A
Square D 750XBXRC24A 750 Octal Relay 8 Pin Dpdt 10 A 24VAC|Square D 750XBXRC24A 750 Octal Relay,8 Pin,Dpdt,10 A,24VAC
$23.27 – $30.89Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 750R Series |
| Horsepower | 1/3 hp |
| Mounting | Socket |
| Terminal_type | Pin |
| Terminal_count | 8 |
| Depth | 35.56 |
| Width | 35.56 |
| Height | 52.07 |
| Dielectric | 1,500 V AC Between Contacts; 2,000 V AC Between Poles; 2,500 V AC Between Coil and Contact |
| Motor_rated | yes |
| Socket_code | A |
| Contact form | DPDT |
All specifications
| Parameter | Value |
|---|---|
| Sealing_type | Enclosed |
| Coil voltage | 24 |
| Contact rating | 5 |
| Has_push_to_test | No Test Button |
| Switching current | 10 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 5 |
MPN
750XBXRC24A
