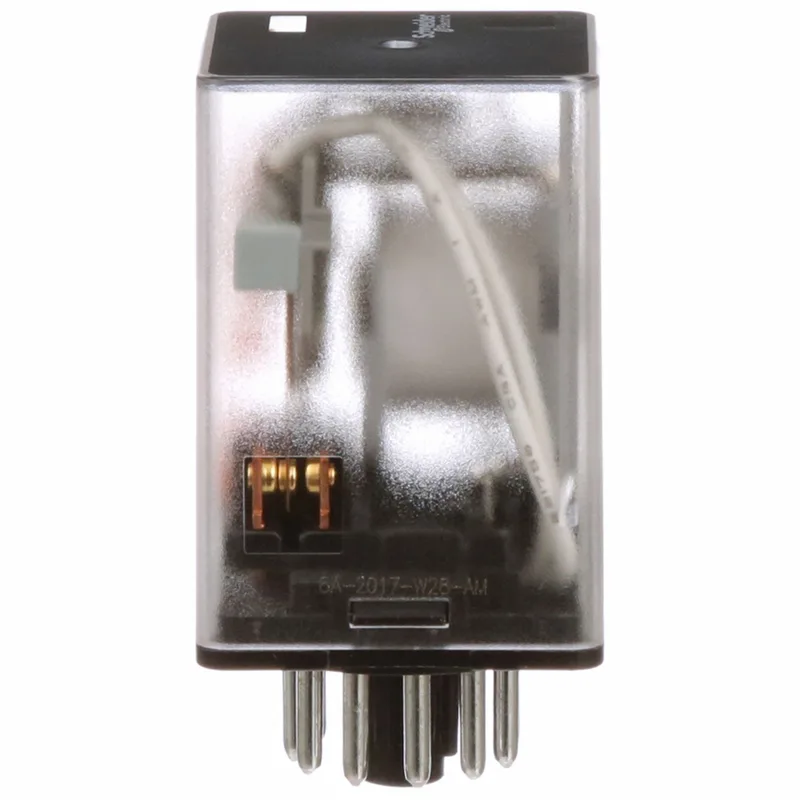

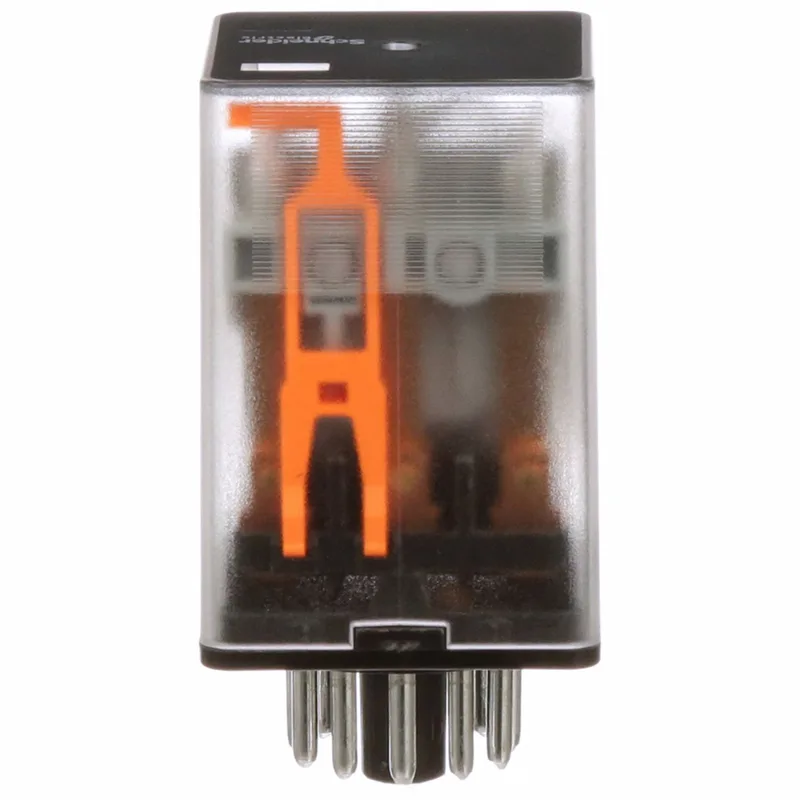

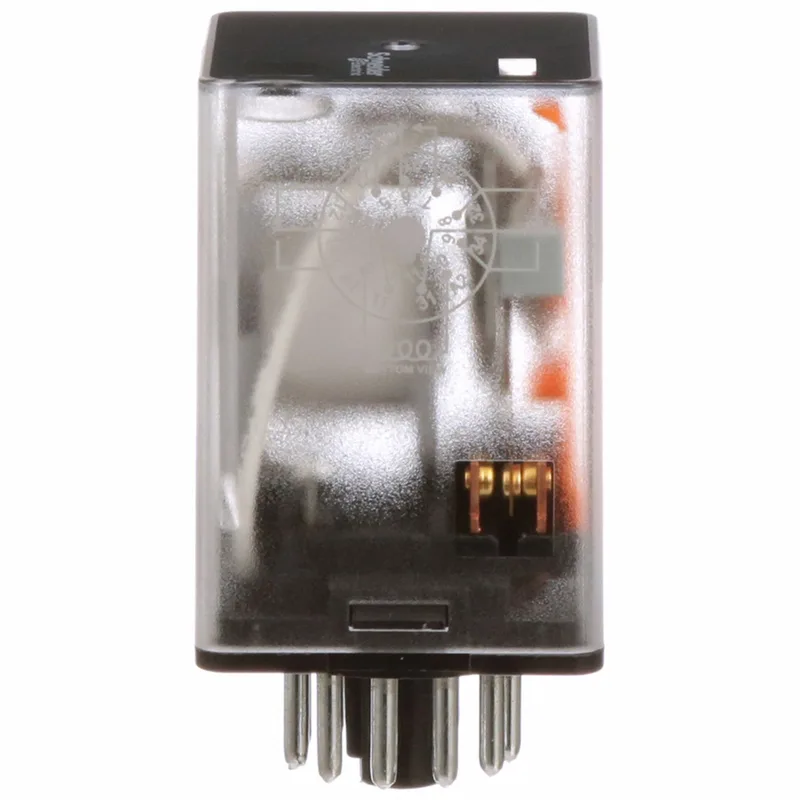

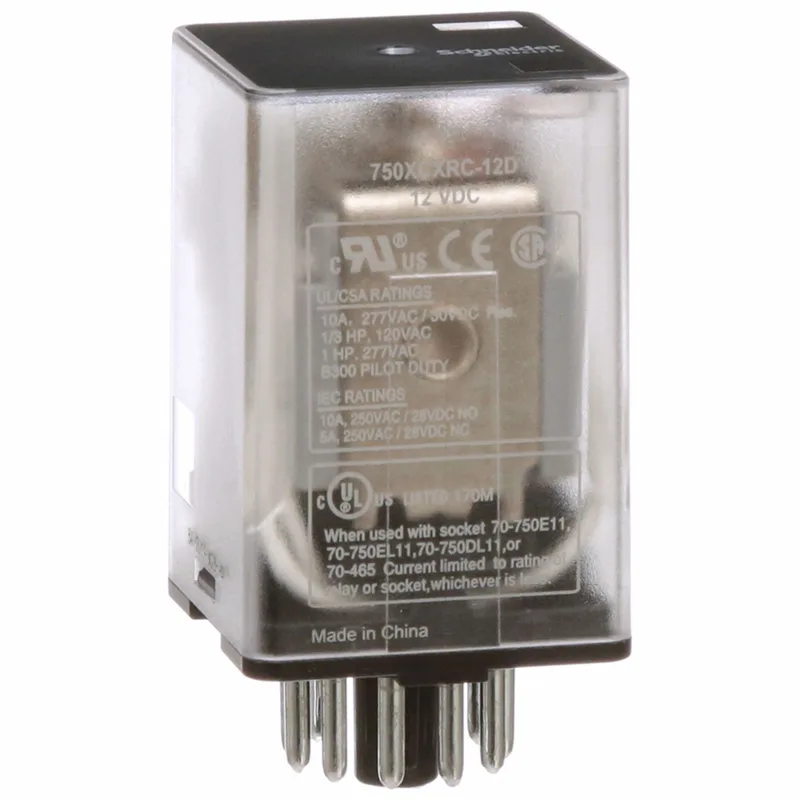

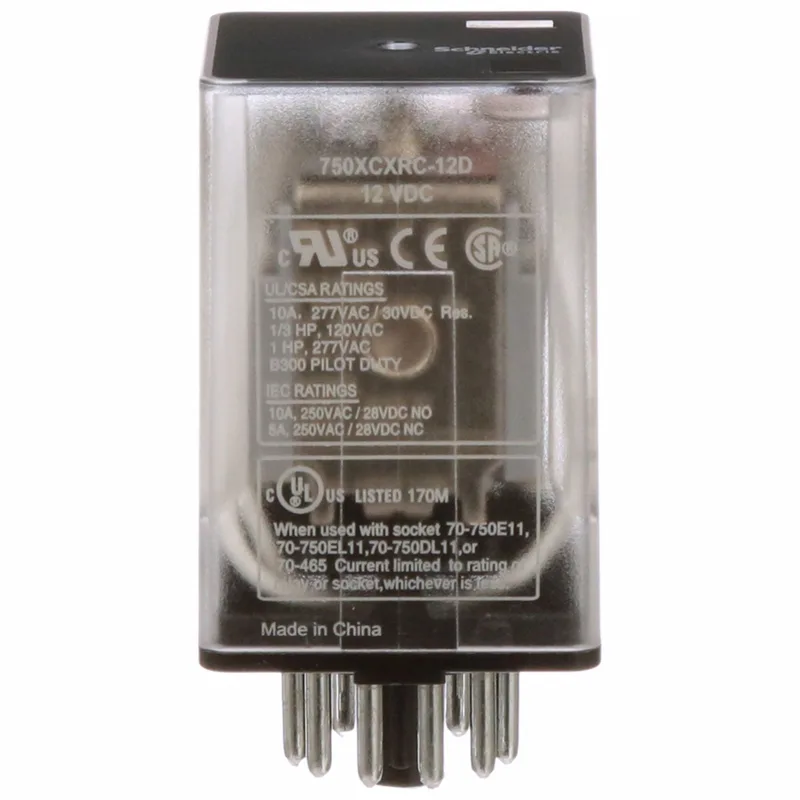

Schneider Electric 750XCXRC-12D
MPN750XCXRC-12D
Obsolete
SCHNEIDER General Purpose Relay: Socket Mounted, 10 A Current Rating, 12V DC, 11 Pins/Terminals
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Product type | Plug-in electromechanical relay |
| Maximum switching voltage | 300 V AC UL 30 V DC UL 250 V AC IEC 28 V DC IEC |
| Drop-out voltage threshold | >= 0.15 Uc AC >= 0.1 Uc DC |
| Control circuit voltage limits | 0.8...1.1 Un DC |
| [Ue] rated operational voltage | 12 V DC |
| Rated line current | 10 A |
| Minimum switching current | 10 mA 17 V DC |
| Rated operational current | 10 A at 277 V AC (on resistive load) conforming to UL 10 A at 30 V DC (on resistive load) conforming to UL 10 A at 250 V AC-1 (1 NO) (on resistive load) conforming to IEC 10 A at 28 V DC-1 (1 NO) (on resistive load) conforming to IEC 5 A at 250 V AC-1 (1 NC) (on resistive load) conforming to IEC 5 A at 28 V DC-1 (1 NC) (on resistive load) conforming to IEC |
| Rated power in | 0.33 HP 120 V AC 1 HP 277 V AC |
| IP degree of protection | IP40 |
| Mounting support | plug-in |
| Connections terminals | octal terminal connector socket 11 pins) |
All specifications
| Parameter | Value |
|---|---|
| Shock resistance | 10 gn |
| Vibration resistance | +/- 1 mm 10...35 Hz in operation 3 gn 35...150 Hz in operation |
| Depth | 1.4 in (35.5 mm) |
| Width | 1.4 in (35 mm) |
| Height | 2.05 in (52 mm) |
| Product weight | 2.9 oz (83 g) |
| Contacts material | Silver alloy, gold flashed |
| Electrical durability | 100000 cycles |
| Mechanical durability | 5000000 cycles |
| Category | US10CP221127 |
| Resistance | 120 Ohm |
| Operating time | 20 ms |
| Switch function | 3PDT |
| Local signalling | Flag Cover |
| Contact composition | 3 NO + 3 NC |
| Dielectric strength | 2500 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts |
| Average coil consumption | 1.4 W |
| Ambient air temperature for storage | -40...185 °F (-40...85 °C) |
| Ambient air temperature for operation | -40...131 °F (-40...55 °C) |
MPN
750XCXRC-12D
