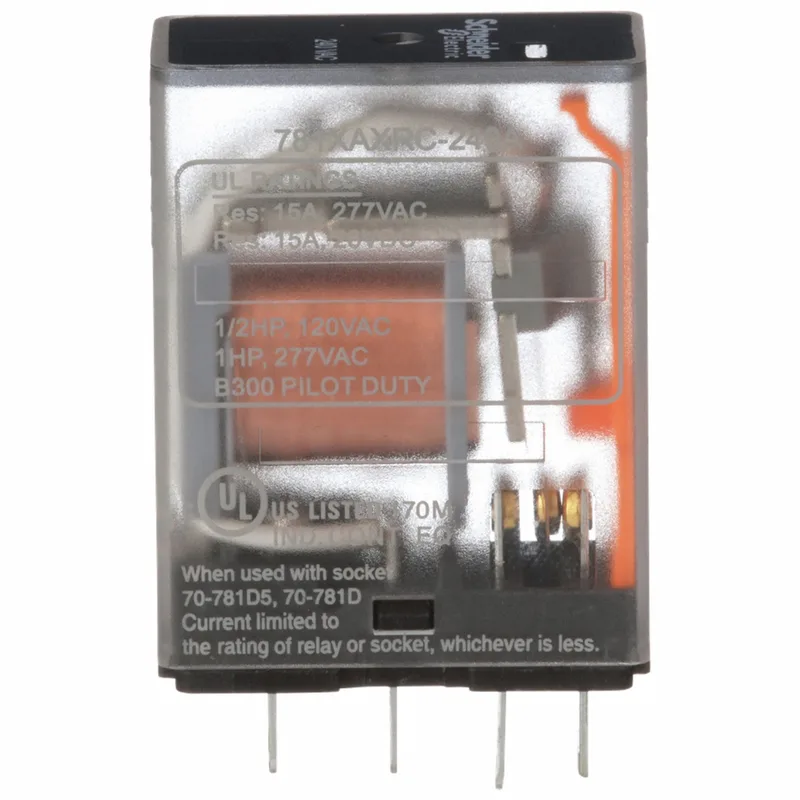

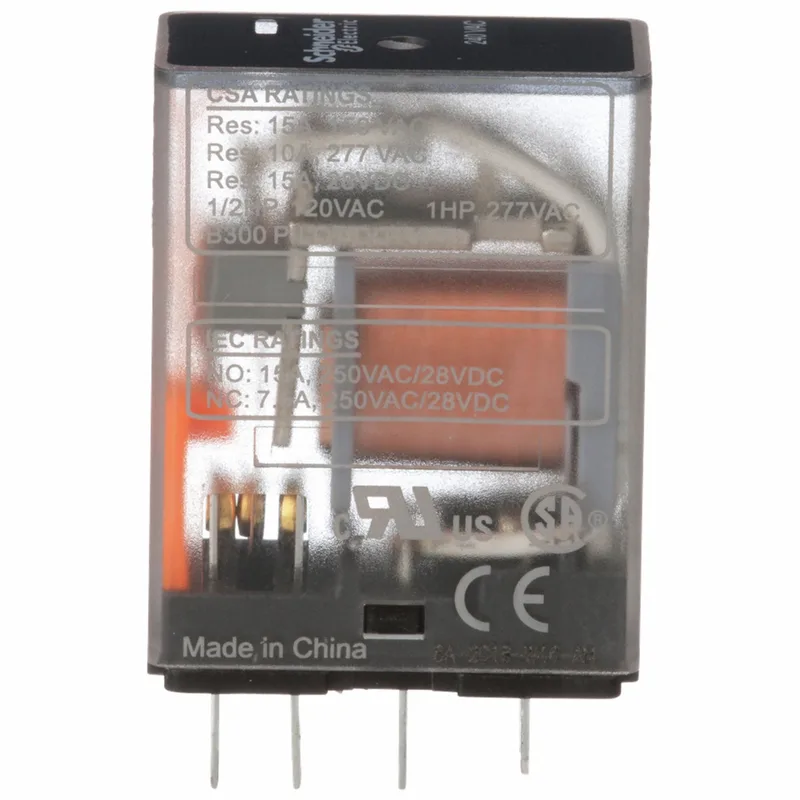

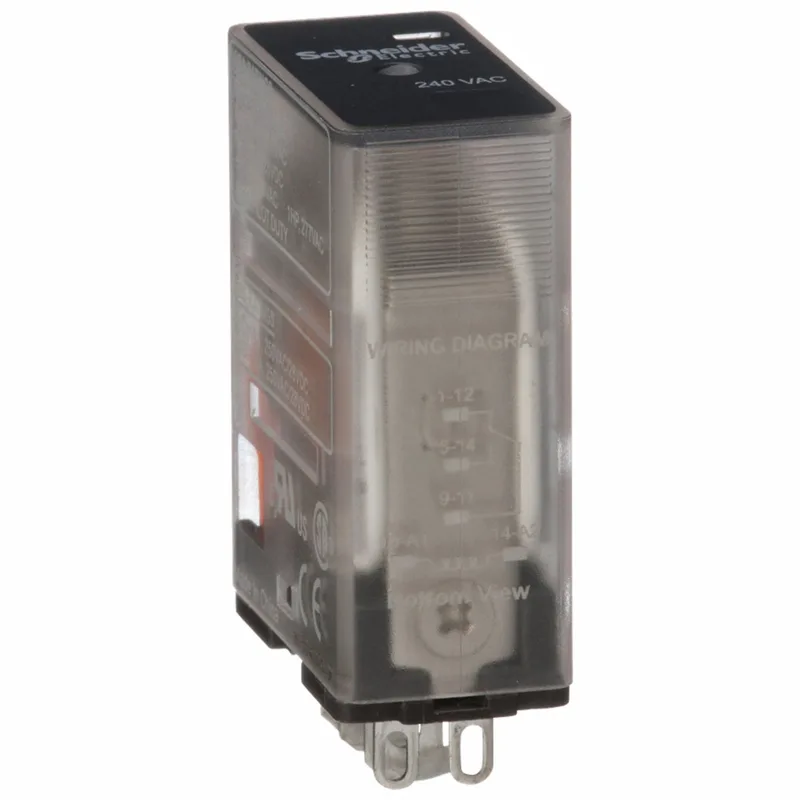

Schneider Electric 781XAXRC-240A

MPN781XAXRC-240A

Obsolete

SCHNEIDER General Purpose Relay: Socket Mounted, 15 A Current Rating, 240V AC, 5 Pins/Terminals

$10.37Ref. price · indicative, final on quote

Add to RFQ

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

781XAXRC-240A key specifications
Parameter	Value
Product type	Power relay
Input voltage	240 V AC
Voltage range	0.8...1.1 Un AC/DC
Maximum switching voltage	300 V AC UL 300 V AC CSA 250 V AC IEC
Drop-out voltage threshold	>= 0.15 Uc AC >= 0.1 Uc DC
Input current	15 A
Minimum switching current	10 mA 17 V
Rated operational current	15 A at 120...277 V AC conforming to UL 15 A at 28 V DC conforming to UL 15 A at 120/150 V AC conforming to CSA 10 A at 151/277 V AC conforming to CSA 15 A at 28 V DC conforming to CSA 15 A at 250 V AC (NO) conforming to IEC 15 A at 28 V DC (NO) conforming to IEC 7.55 A at 250 V AC (NC) conforming to IEC 7.55 A at 28 V DC (NC) conforming to IEC
Motor power	0.5 hp 120 V AC 50-60 Hz 1 hp 277 V AC 50-60 Hz
Power consumption in	1.6 VA AC
Mounting	Socket
Connections terminals	Faston terminals

781XAXRC-240A additional specifications
Parameter	Value
Shock resistance	15 gn in operation
Vibration resistance	+/-1 mm 10...35 Hz) 3 gn 35...150 Hz)
Depth	1.07 in (27.3 mm)
Width	0.6 in (14 mm)
Height	1.4 in (35.3 mm)
Product weight	0.9 oz (26 g)
Contacts material	Silver alloy, gold flashed
Electrical durability	100000 cycles resistive
Mechanical durability	10000000 cycles
Category	US10CP221127
Product range	Legacy
Operating time	25 ms 20 ms
Coil resistance	17720 Ohm
Switch function	SPDT
Local signalling	Flag
Contact composition	1 NC + 1 NO
Dielectric strength	2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts
Ambient air temperature for storage	-40...185 °F (-40...85 °C)
Ambient air temperature for operation	-40...131 °F (-40...55 °C)
