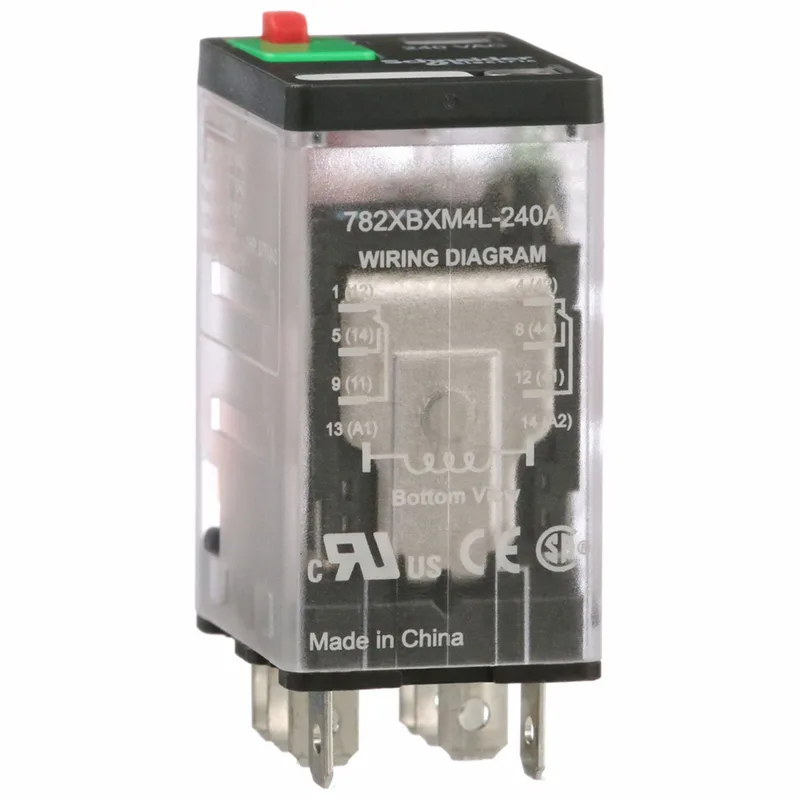

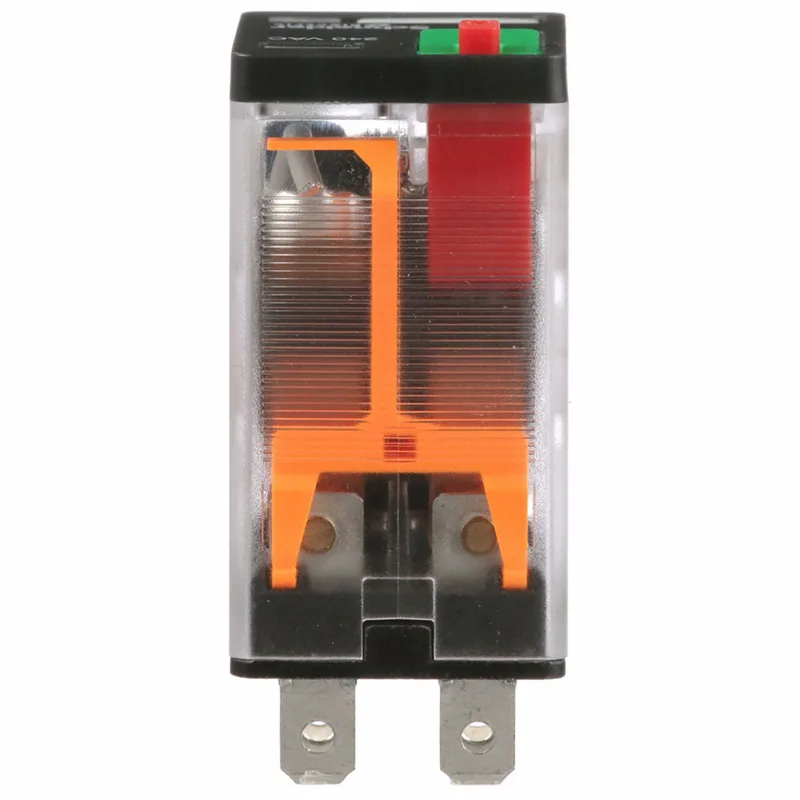

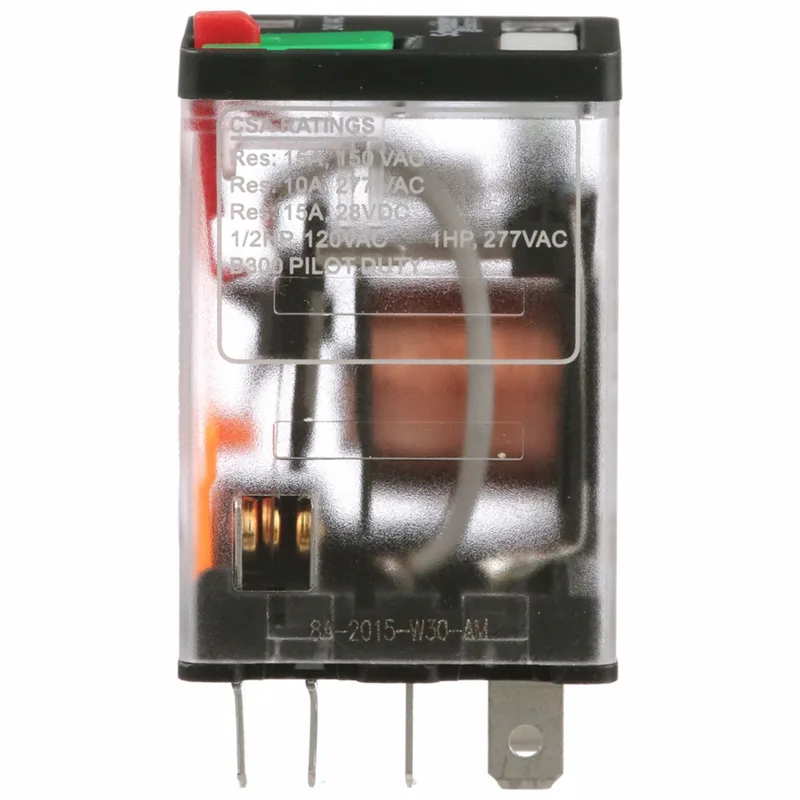

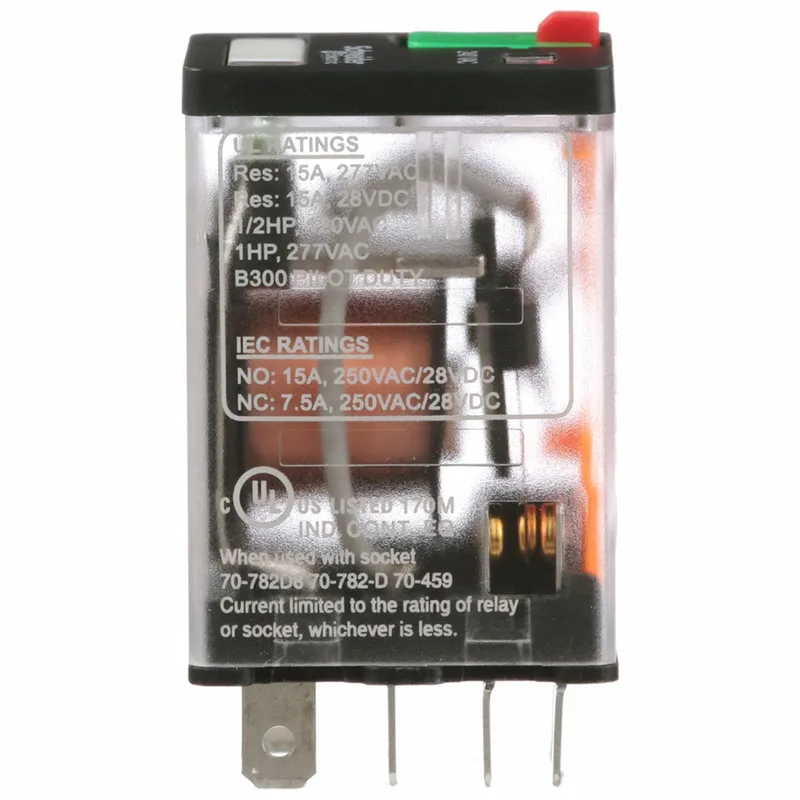

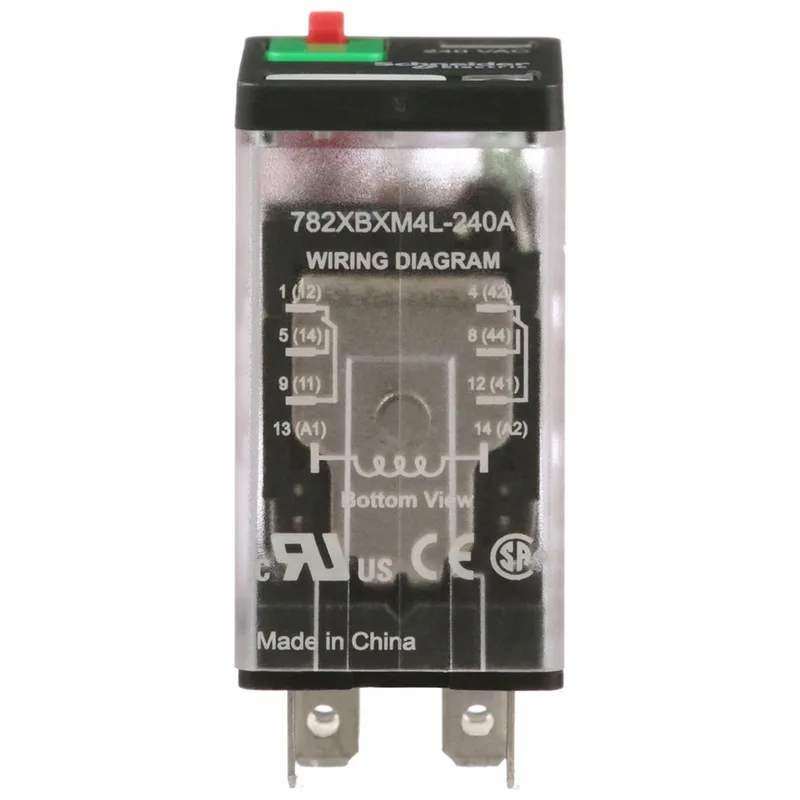

Schneider Electric 782XBXM4L240A
MPN782XBXM4L240A
Obsolete
782 PLUG-IN RELAY DPDT 15A 240VAC|782 PLUG-IN RELAY DPDT 15A 240VAC
$19.13Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 782 Series |
| Voltage max | 300 V AC UL 300 V AC CSA 250 V AC IEC |
| Coil dropout voltage | >= 0.15 Uc AC >= 0.1 Uc DC |
| Current in | 15 A |
| Current min | 10 mA 17 V |
| Horsepower | 1/2 hp |
| Enclosure_material | Silver alloy, gold flashed |
| Mounting | Socket |
| Terminal_type | Tab |
| Terminal_count | 8 |
| Connections terminals | Faston terminals |
| Shock | 15 gn in operation |
All specifications
| Parameter | Value |
|---|---|
| Depth | 27.178 |
| Width | 20.32 |
| Height | 38.1 |
| Electrical life cycles | 100000 cycles resistive |
| Mechanical life cycles | 10000000 cycles |
| Power | 0.5 hp 120 V AC 50/60 Hz 1 hp 277 V AC 50/60 Hz |
| Dielectric | 2000 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts |
| Motor_rated | Yes |
| Socket_code | D |
| Contact form | DPDT |
| Control_type | Lockable test button |
| Package_type | PCE |
| Product type | Power relay |
| Product range | Legacy |
| Coil voltage | 240 |
| Resistance | +/- 1 mm 10...35 Hz) 3 gn 35...150 Hz) |
| Input voltage | 240 |
| Switch_function | DPDT |
| Local signalling | LED Flag |
| Contact rating | 7.55 |
| Has_push_to_test | Lockable Push Test Button |
| Supply voltage | 0.8 |
| Operating time | 20 ms operating 20 ms tripping |
| Contact composition | 2 NO + 2 NC |
| Coil resistance | 17720 Ohm |
| Power consumption | 1.15 W DC |
| Switching current | 15 |
| Storage temperature | -40...185 °F (-40...85 °C) |
| Has_status_indicator | LED IndicatorMechanical Flag |
| Electrical_life_cycles | 100000 |
| Mechanical_life_cycles | 10000000 |
| Operating temperature | -40 |
| Ordering and shipping details (Category) | US10CP221127 |
MPN
782XBXM4L240A
