Schneider Electric 788XCXRC1120A
MPN788XCXRC1120A

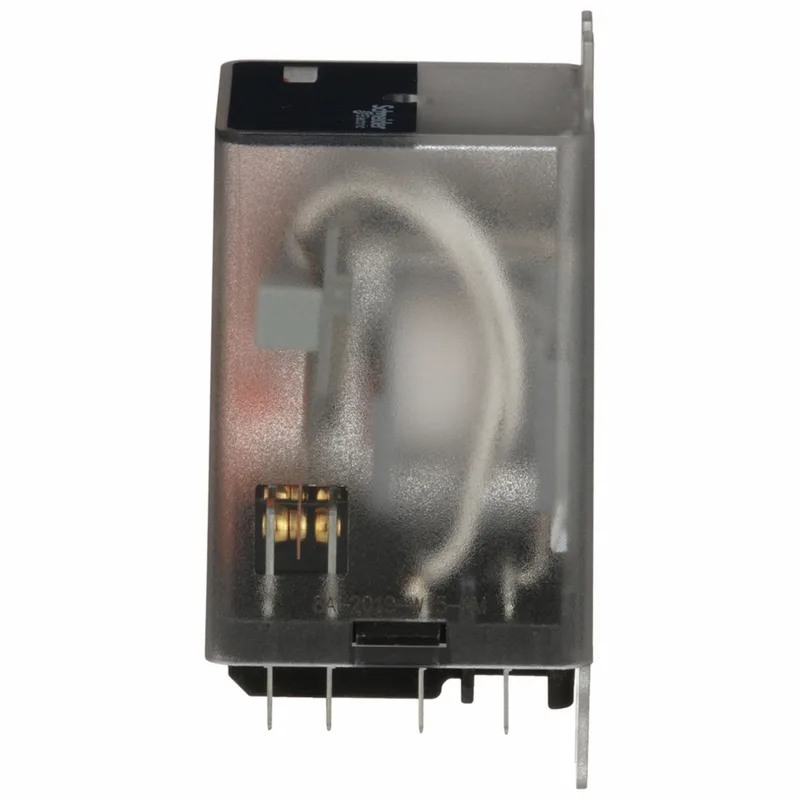

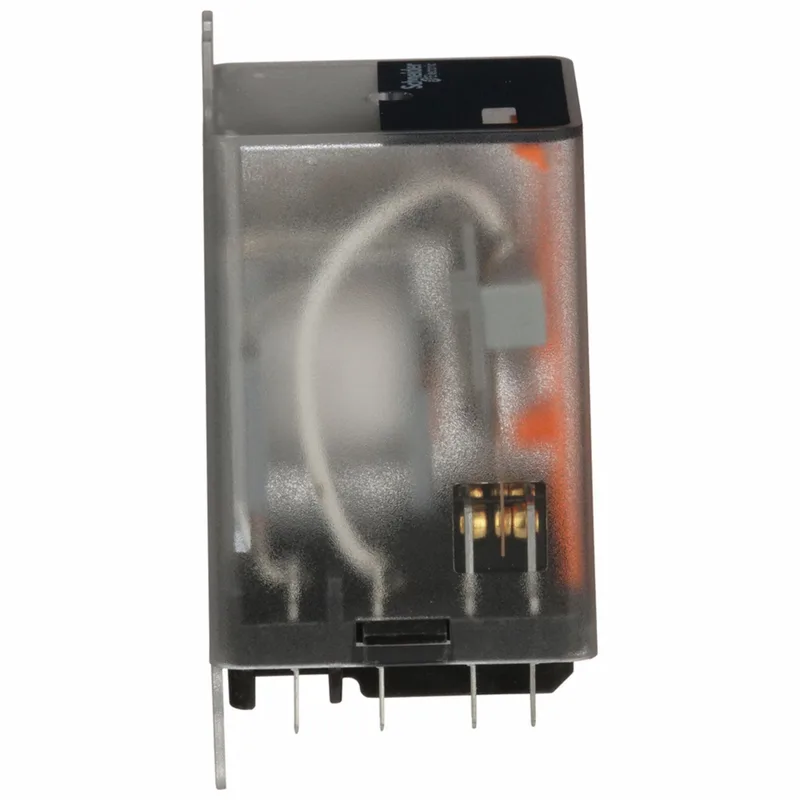

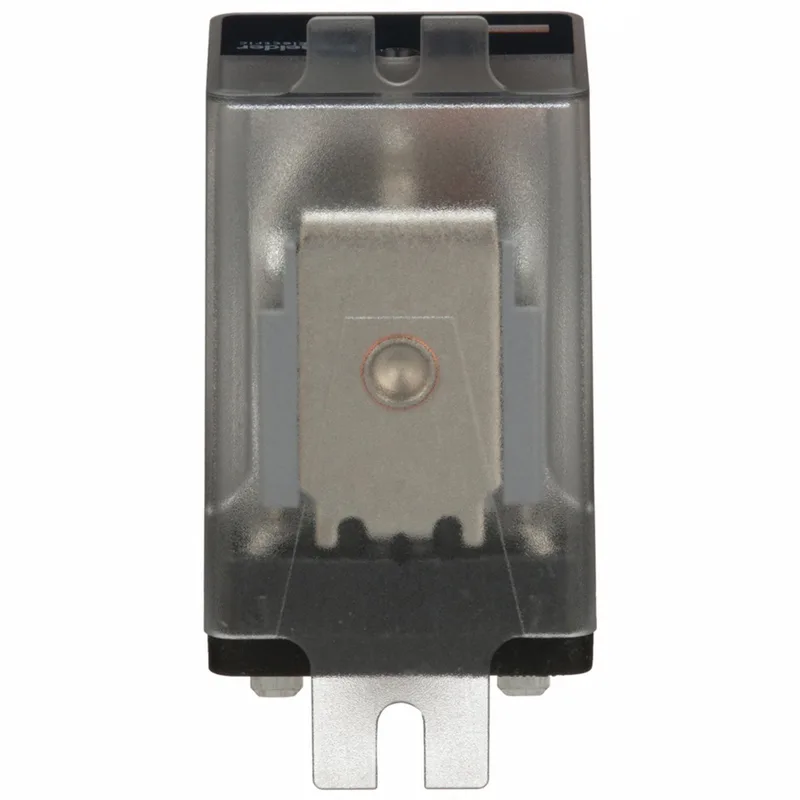

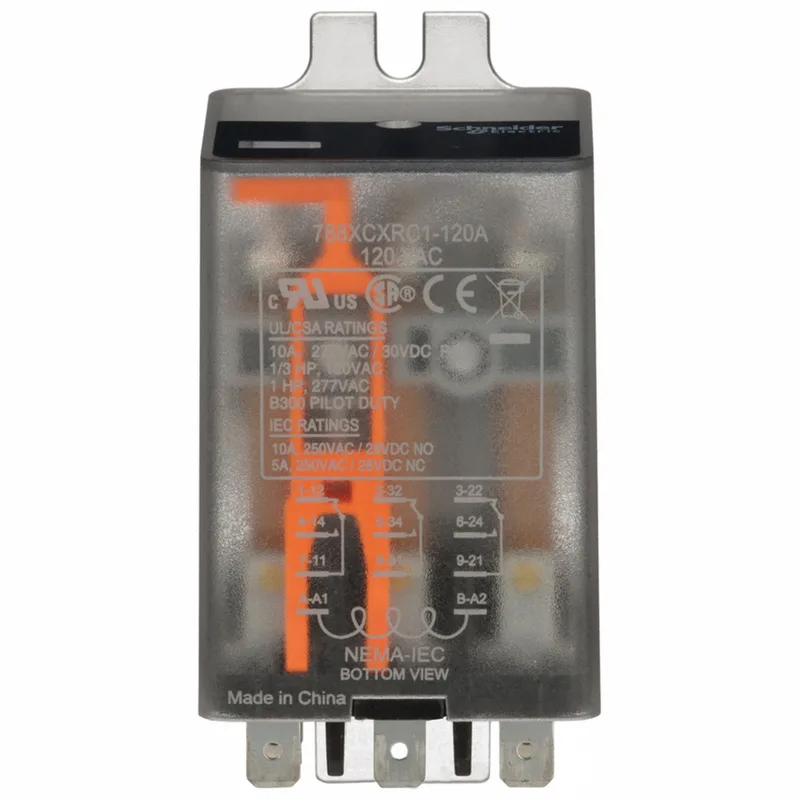

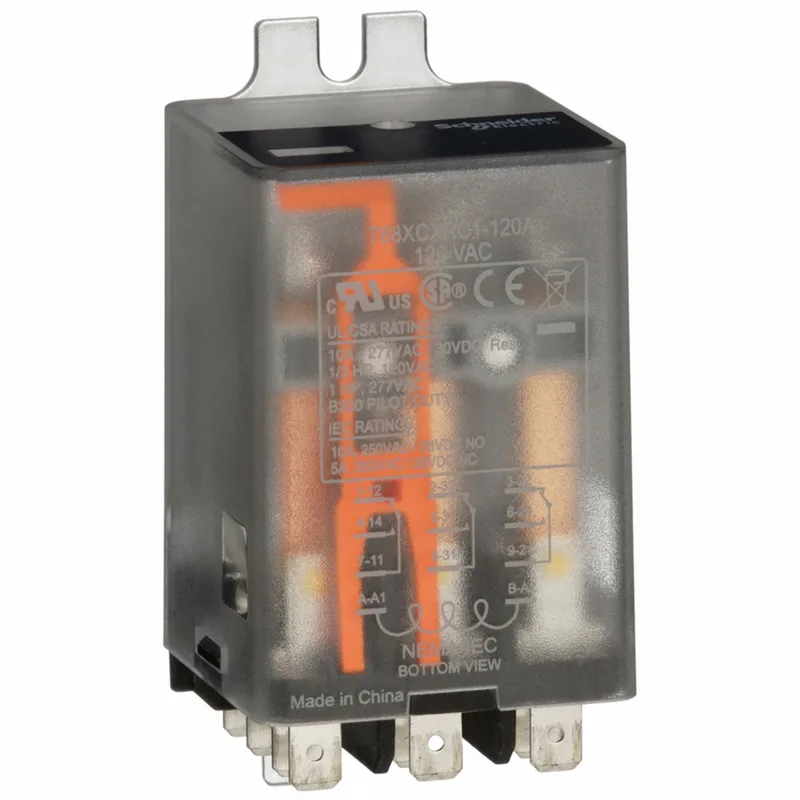

Square D 788XCXRC1120A 788 QC Relay Flange Mount 3Pdt 10A 120VAC|Square D 788XCXRC1120A 788 QC Relay, Flange Mount, 3Pdt,10A,120VAC
$32.79Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 788R Series |
| Horsepower | 1/3 hp |
| Mounting | Surface (Side Flange) |
| Terminal_type | Tab |
| Terminal_count | 11 |
| Depth | 35.56 |
| Width | 35.56 |
| Height | 71.12 |
| Dielectric | 1,500 V AC Between Contacts; 2,000 V AC Between Poles; 2,500 V AC Between Coil and Contact |
| Motor_rated | yes |
| Contact form | 3PDT |
| Sealing_type | Enclosed |
All specifications
| Parameter | Value |
|---|---|
| Coil voltage | 120 |
| Contact rating | 5 |
| Has_push_to_test | No Test Button |
| Switching current | 10 |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100 |
| Mechanical_life_cycles | 5 |
MPN
788XCXRC1120A
