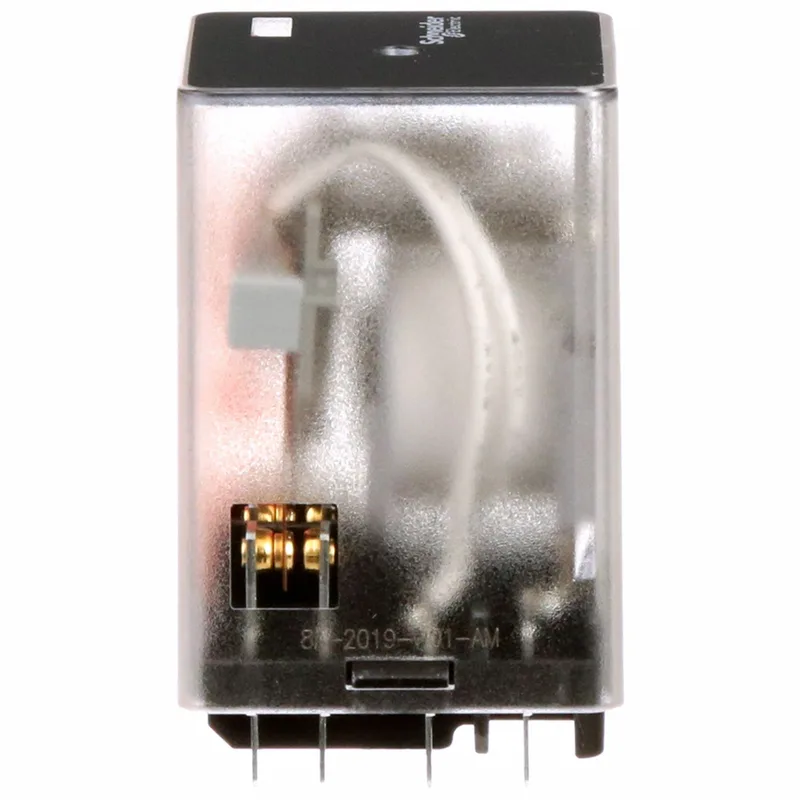

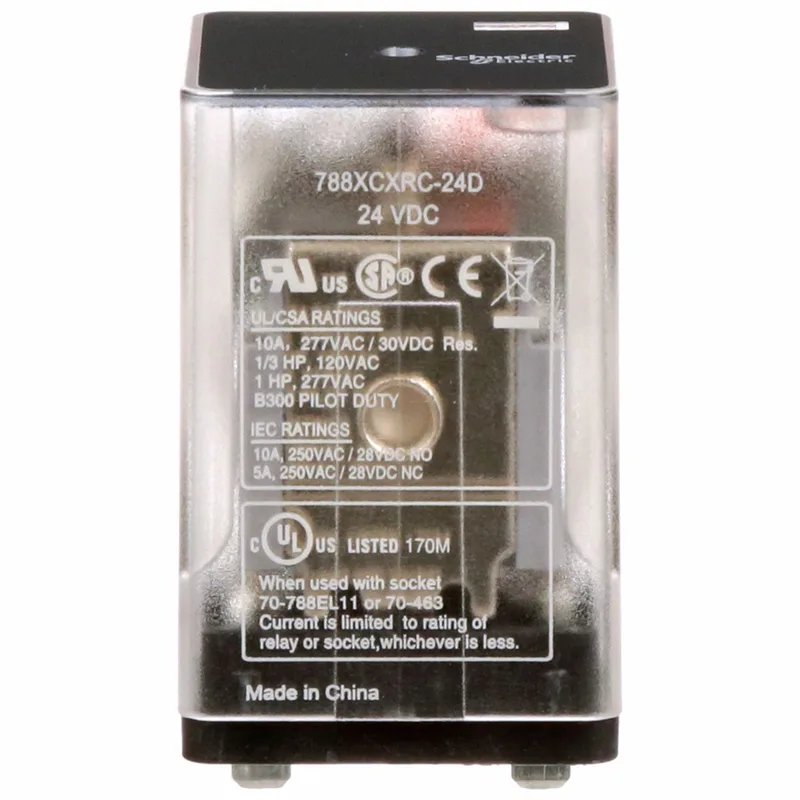

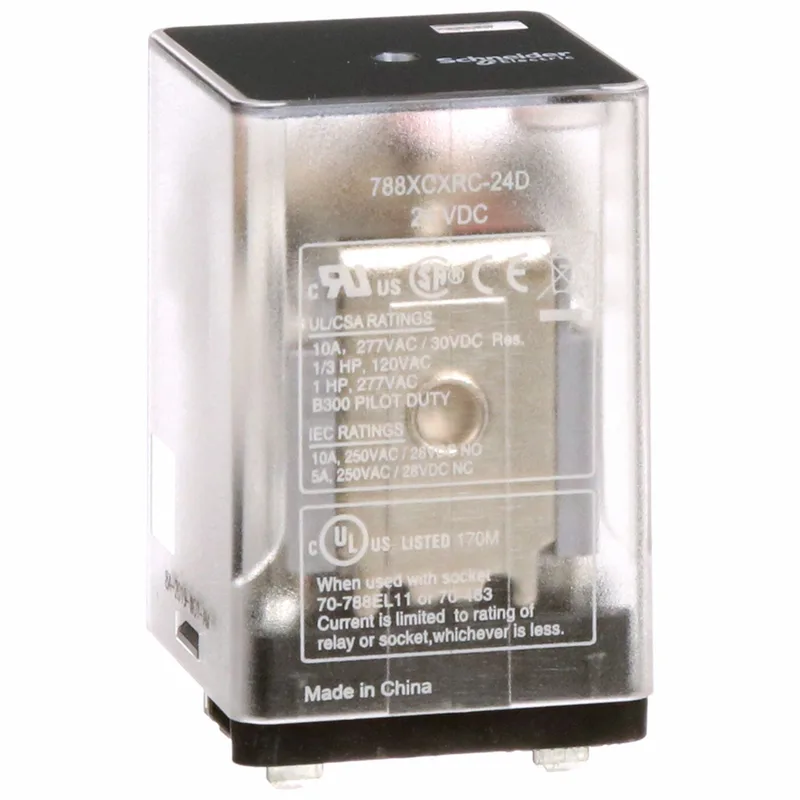

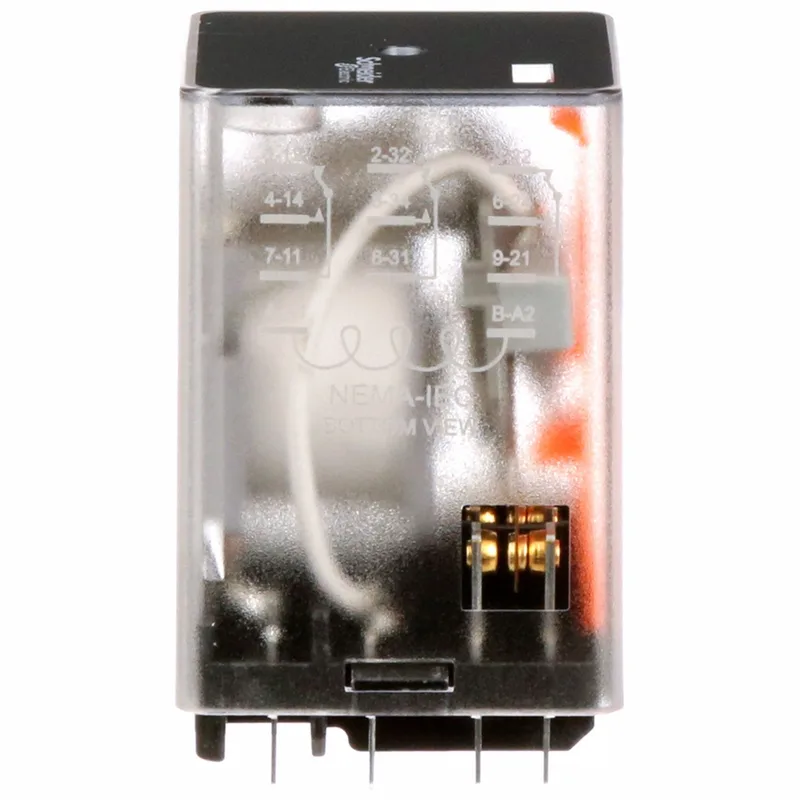

Schneider Electric 788XCXRC24D
MPN788XCXRC24D
Obsolete
Square D 788XCXRC24D 788 QC Relay 3Pdt 10A 24VDC|Square D 788XCXRC24D 788 QC Relay, 3Pdt, 10A, 24VDC
$25.37 – $32.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 788R Series |
| Voltage max | 300 V UL 300 V CSA 250 V IEC |
| Coil dropout voltage | >= 0.15 Uc AC >= 0.1 Uc DC |
| Current min | 10 mA 17 V DC |
| Horsepower | 1/3 hp |
| Enclosure_material | Silver alloy, gold flashed |
| Mounting | plug-in |
| Terminal_type | Tab |
| Terminal_count | 11 |
| Connections terminals | blade terminal |
| Shock | 10 gn |
| Depth | 35.56 |
All specifications
| Parameter | Value |
|---|---|
| Width | 35.56 |
| Height | 50.8 |
| Electrical life cycles | 100000 cycles |
| Mechanical life cycles | 5000000 cycles |
| Power | 0.33 HP 120 V AC 1 HP 277 V AC |
| IP rating | IP40 |
| Dielectric | 2500 V AC between coil and contact 2000 V AC between poles 1500 V AC between contacts |
| Motor_rated | Yes |
| Socket_code | C |
| Contact form | 3 PDT |
| Package_type | PCE |
| Product type | Plug-in electromechanical relay |
| Sealing_type | Enclosed |
| Coil voltage | 0.8 |
| Resistance | 470 Ohm |
| Switch_function | 3 PDT |
| Local signalling | Flag Cover |
| Contact rating | 5 |
| Has_push_to_test | Manual Push Test Button |
| Supply voltage | 24 |
| Operating time | 20 |
| Contact composition | 3 NO + 3 NC |
| Switching current | 10 |
| Storage temperature | -40...185 °F (-40...85 °C) |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100000 |
| Mechanical_life_cycles | 5000000 |
| Average coil consumption | 1.4 W |
| Operating temperature | -40 |
| Ordering and shipping details (Category) | US10CP221127 |
MPN
788XCXRC24D
