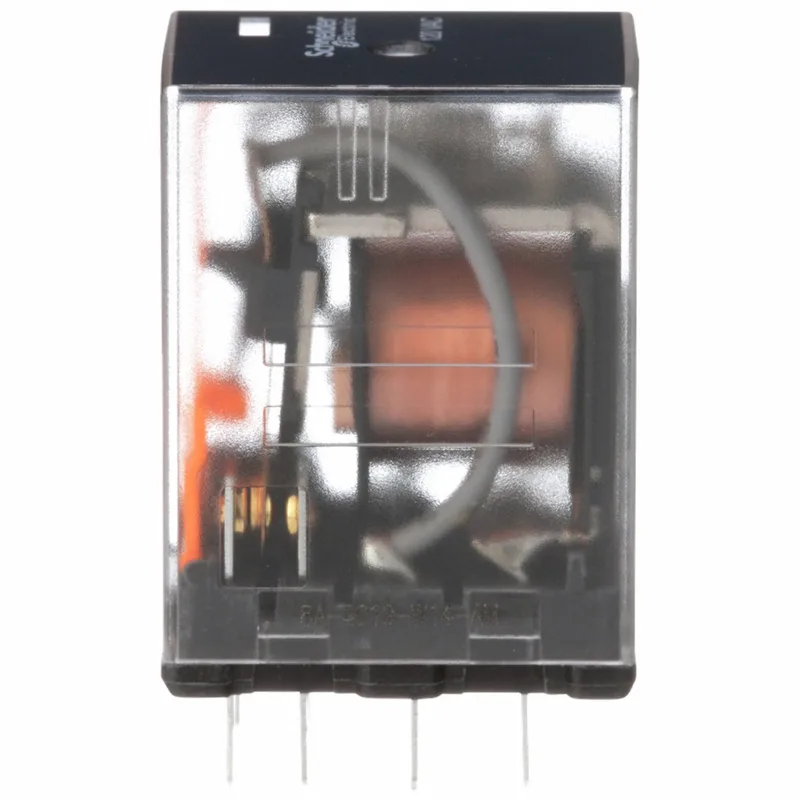

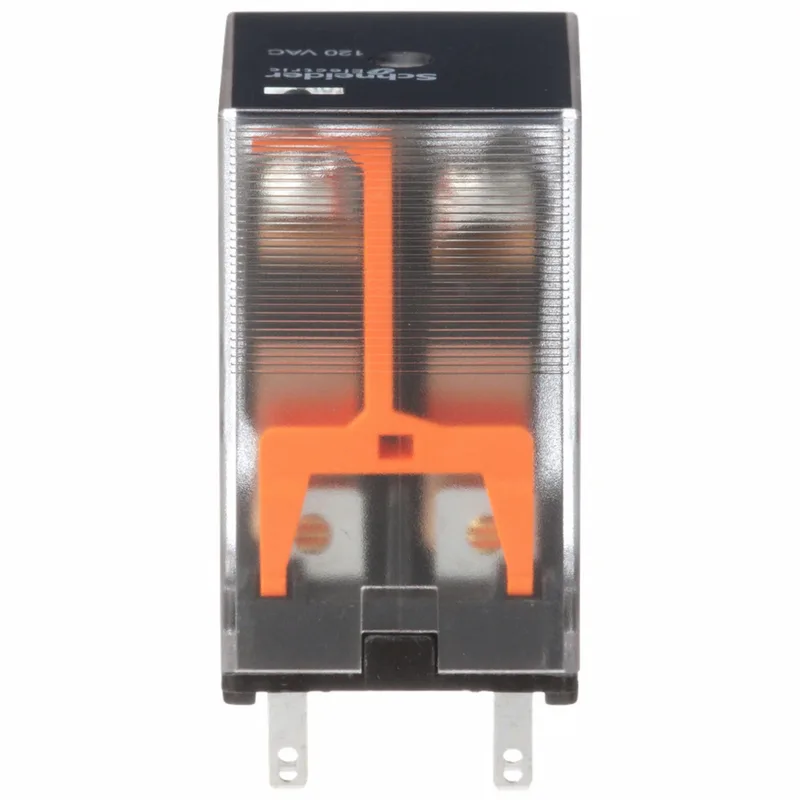

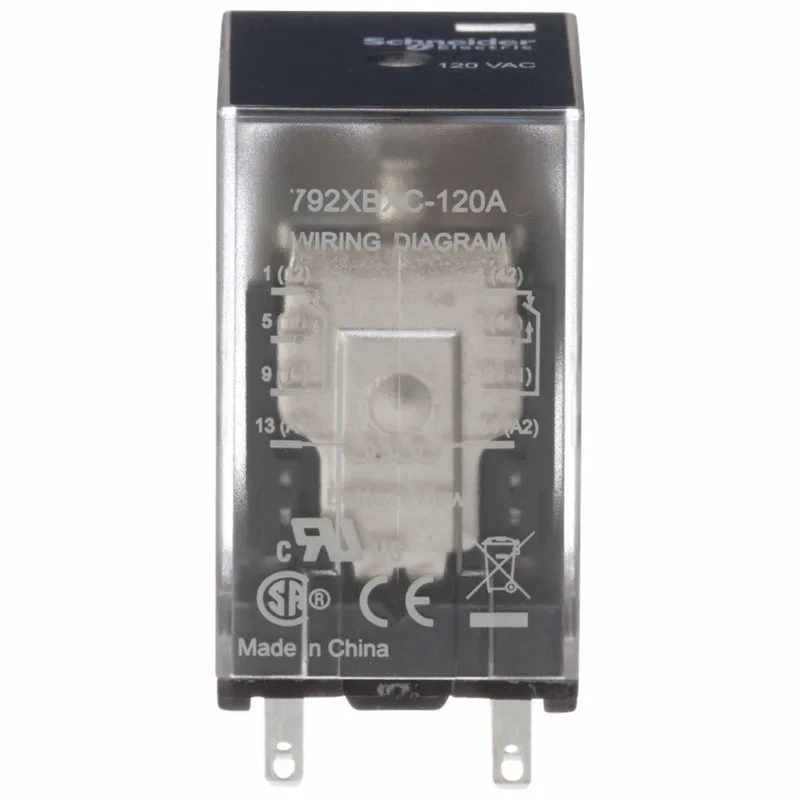

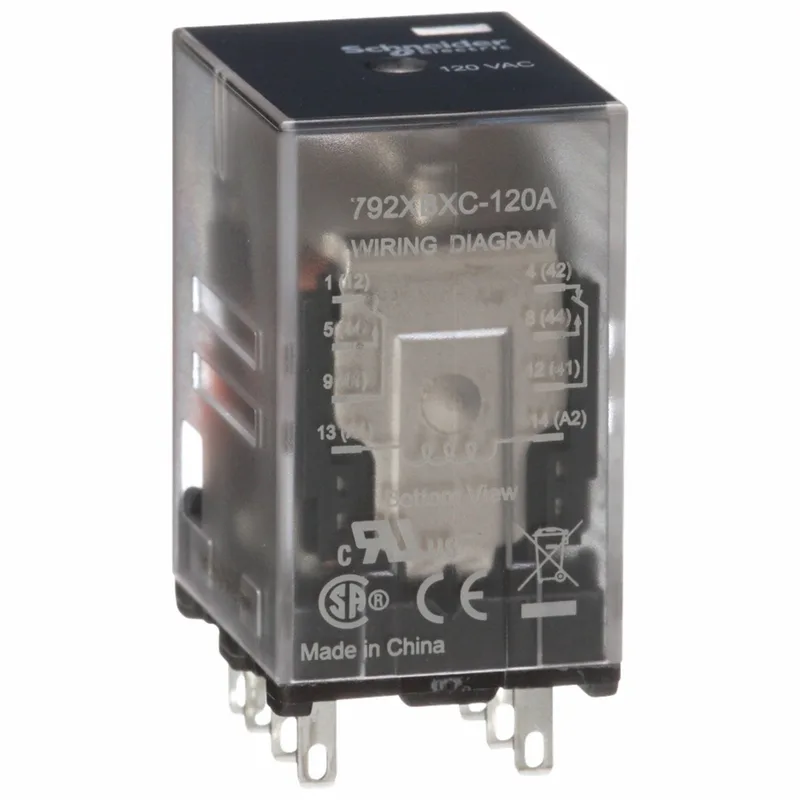

Schneider Electric 792XBXC120A

Schneider Electric 792XBXC120A

MPN792XBXC120A
Obsolete

MINI ICE CUBE RELAYS DPDT 12A 120VAC|MINI ICE CUBE RELAYS DPDT 12A 120VAC

$19.30Ref. price · indicative, final on quote
Schneider Electric 792XBXC120A datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

792XBXC120A key specifications
ParameterValue
Series792 Series
Voltage max300 V UL 300 V CSA 250 V IEC
Coil dropout voltage>= 0.15 Uc AC >= 0.1 Uc DC
Surge withstand duration1.2/50 µs
Current in12 A
Current min10 mA 17 V
Horsepower1/2 hp
Enclosure_materialSilver with gold flashed contacts
MountingPanel DIN rail
Terminal_typeTab
Terminal_count8
Connections terminalsFaston connectors

All specifications

792XBXC120A additional specifications
ParameterValue
Shock10 gn in operation 30 gn not operating
Depth27.178
Width20.32
Height35.56
Electrical life cycles100000 cycles resistive
Mechanical life cycles10000000 cycles
Power0.5 hp 120 V AC 1 hp 277 V AC
Dielectric2000 V AC between coil and contact 2000 V AC between poles 1300 V AC between contacts
Motor_ratedYes
Socket_codeK
Contact formDPDT
Package_typePCE
Product typeRelay
Product rangeLegacy
Coil voltage120
Resistance3 gn 35...150 Hz)operating +/- 1 mm 10...35 Hz)operating 5 gn 35...150 Hz)not operating +/- 1 mm 10...35 Hz)not operating
Input voltage120
Switch_functionDPDT
Local signallingFlag
Contact rating6
Has_push_to_testManual Push Test Button
Supply voltage0.8
Operating time25
Contact composition2 NO + 2 NC
Coil resistance3630 Ohm
Power consumption0.9 VA AC
Switching current12
Storage temperature-40...185 °F (-40...85 °C)
Has_status_indicatorMechanical Flag
Electrical_life_cycles100000
Mechanical_life_cycles10000000
Operating temperature-40
Ordering and shipping details (Category)US10CP221127
MPN
792XBXC120A
