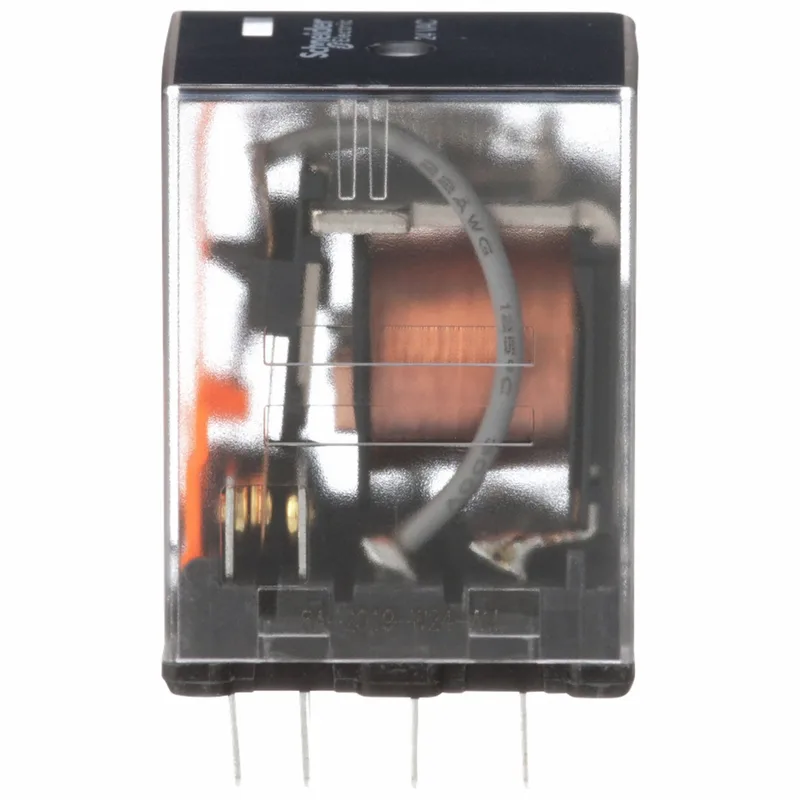

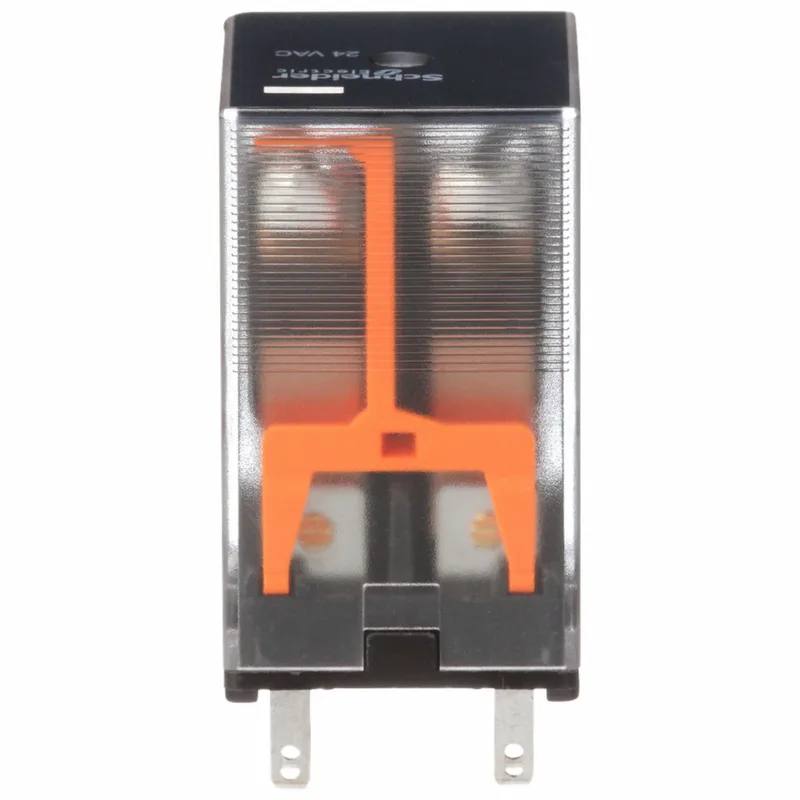

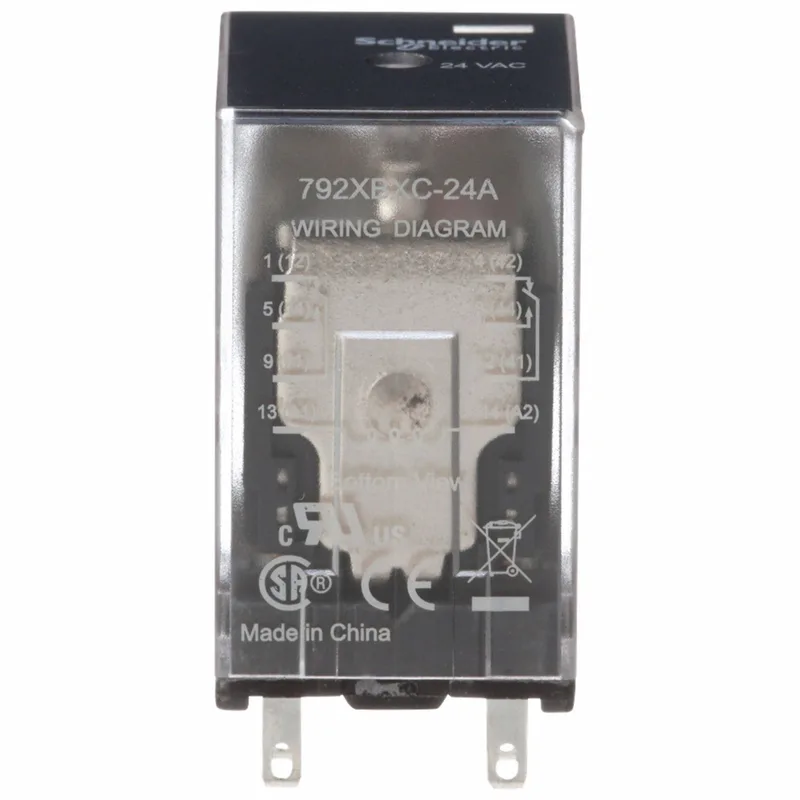

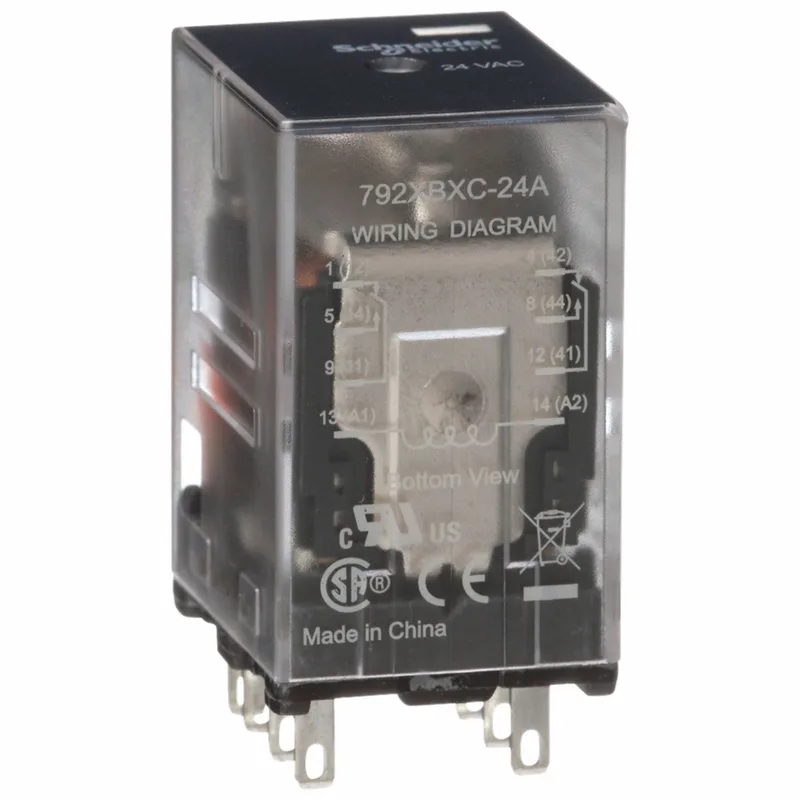

Schneider Electric 792XBXC24A
MPN792XBXC24A
Obsolete
Square D 792XBXC24A Mini Ice Cube Relays Dpdt 12A 24VAC|Square D 792XBXC24A Mini Ice Cube Relays, Dpdt, 12A, 24VAC
$12.78 – $18.89Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 792 Series |
| Voltage max | 300 V UL 300 V CSA 250 V IEC |
| Coil dropout voltage | >= 0.15 Uc AC >= 0.1 Uc DC |
| Surge withstand duration | 1.2/50 µs |
| Current in | 12 A |
| Current min | 10 mA 17 V |
| Horsepower | 1/2 hp |
| Enclosure_material | Silver with gold flashed contacts |
| Mounting | Panel DIN rail |
| Terminal_type | Tab |
| Terminal_count | 8 |
| Connections terminals | Faston connectors |
All specifications
| Parameter | Value |
|---|---|
| Shock | 10 gn in operation 30 gn not operating |
| Depth | 27.178 |
| Width | 20.32 |
| Height | 35.56 |
| Electrical life cycles | 100000 cycles resistive |
| Mechanical life cycles | 10000000 cycles |
| Power | 0.5 hp 120 V AC 1 hp 277 V AC |
| Dielectric | 2000 V AC between coil and contact 2000 V AC between poles 1300 V AC between contacts |
| Motor_rated | Yes |
| Socket_code | K |
| Contact form | DPDT |
| Package_type | PCE |
| Product type | Relay |
| Product range | Legacy |
| Coil voltage | 24 |
| Resistance | 3 gn 35...150 Hz)operating +/- 1 mm 10...35 Hz)operating 5 gn 35...150 Hz)not operating +/- 1 mm 10...35 Hz)not operating |
| Input voltage | 24 |
| Switch_function | DPDT |
| Local signalling | Flag |
| Contact rating | 6 |
| Has_push_to_test | Manual Push Test Button |
| Supply voltage | 0.8 |
| Operating time | 25 |
| Contact composition | 2 NO + 2 NC |
| Coil resistance | 177 Ohm |
| Power consumption | 0.9 VA AC |
| Switching current | 12 |
| Storage temperature | -40...185 °F (-40...85 °C) |
| Has_status_indicator | Mechanical Flag |
| Electrical_life_cycles | 100000 |
| Mechanical_life_cycles | 10000000 |
| Operating temperature | -40 |
| Ordering and shipping details (Category) | US10CP221127 |
MPN
792XBXC24A
