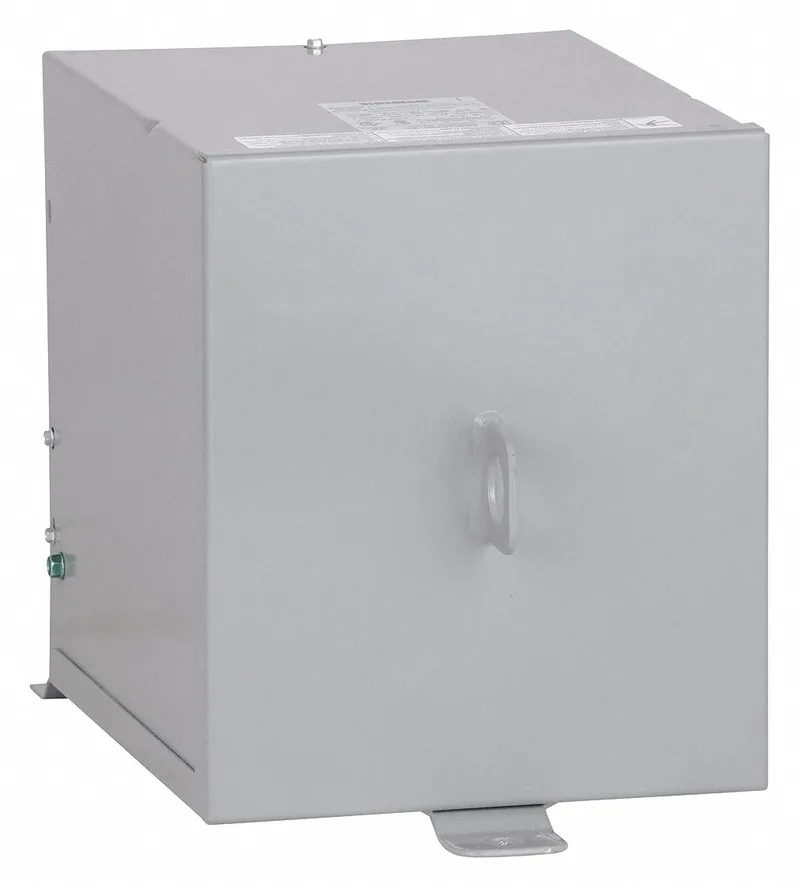

Schneider Electric 7S1F
MPN7S1F
Active
Transformer, Dry Type, 7.5KVA, 240 X 480 - 120/240, NEMA 3R|Transformer, Dry Type, 7.5 KVA, 240/480 x 120/240 Volt AC, NEMA 3R
$1,175.00 – $2,981.40Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Enclosure type | NEMA 3R |
| Product or component type | Dry Sealed Transformer |
| Primary to secondary voltage | 240 x 480 V 120/240 V |
| Power rating | 7.5 kVA |
| Phases | 1 phase |
| Enclosure code | 13B |
| Enclosure material | Painted sheet steel |
| Enclosure mounting | Wall mounted |
| Depth | 11.75 in (298.45 mm) |
| Width | 9.75 in (247.65 mm) |
| Height | 14.75 in (374.65 mm) |
| Compliance (Compliance) | TAA |
| Category | US10PE216277 |
| Temperature rise | 115 °C |
| Insulation temperature | 356 °F (180 °C) |
MPN
7S1F
