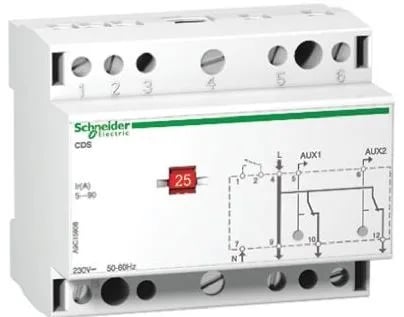

Schneider Electric A9C15906
MPNA9C15906
Active
A9C15906 by TELEMECANIQUE
$304.80Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Range of product | Acti9 |
| Product or component type | Load-shedding contactor |
| Control and monitoring type | Cascade |
| [Ue] rated operational voltage | 230 V AC - 15...10 % at 50/60 Hz |
| Current | 15 A for non-priority circuit Adjustable from 5 to 90 A for priority circuit |
| Power consumption in | 4 VA |
| Poles description | 1P |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting support | 35 mm symmetrical DIN rail Panel mounting Wall mounted |
| Wire stripping length | 12 mm 13 mm |
| Connections - terminals | Non-priority circuit: screw terminal2.5...10 mm² flexible Non-priority circuit: screw terminal2.5...10 mm² rigid Priority circuit: screw terminal10...35 mm² flexible Priority circuit: screw terminal10...50 mm² rigid |
| Relative humidity | 95 % at 55 °C |
All specifications
| Parameter | Value |
|---|---|
| Depth | 60 mm |
| Width | 144 mm |
| Color | White (RAL 9003) |
| Height | 77 mm |
| Standards | NF C 61-750 EN 50081-2 EN 50081-1 |
| Setting | 40 10 90 30 5 45 75 15 50 20 25 60 |
| 9 mm pitches | 16 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Local signalling | Load-shedding indication: 4 LEDs (yellow) |
| Device short name | CDSc |
| Tightening torque | Non-priority circuit: 2 N.m Priority circuit: 3.5 N.m |
| Channels | 4 |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -5...55 °C |
MPN
A9C15906
