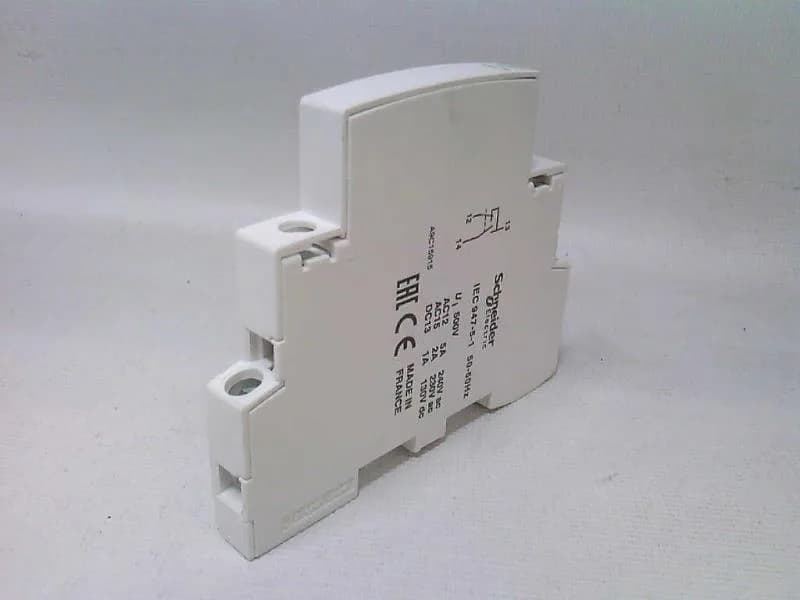

Schneider Electric A9C15915
MPNA9C15915
Active
A9C15915 - REMOTE INDICATION by SQUARE D
$22.86Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | ICT |
| Product or component type | Remote indication auxiliary |
| Signalling circuit voltage | 24 V AC/DC: 10 mA 230 V AC: 50/60 Hz 5 A 230 V AC: 50/60 Hz 2 A 130 V DC: 1 A |
| Coil voltage | 24...240 V AC 50/60 Hz 24...130 V DC |
| Voltage | 440 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Fixed, on the right of CT |
| Mounting support | 35 mm symmetrical DIN rail |
| Wire stripping length | 9 mm |
| Auxiliary connection terminal | Tunnel type terminals 2 cable(s) flexible 2.5 mm² Tunnel type terminals 2 cable(s) rigid 1.5 mm² Tunnel type terminals 1 cable(s) rigid 1.5...2.5 mm² Tunnel type terminals 1 cable(s) flexible 1.5...2.5 mm² |
| Relative humidity | 95 % at 55 °C |
All specifications
| Parameter | Value |
|---|---|
| Depth | 68 mm |
| Width | 9 mm |
| Color | White |
| Height | 81 mm |
| Standards | EN 60947-5 |
| Range | Acti9 |
| 9 mm pitches | 1 |
| Market segment | Residential Small commercial |
| Tropicalisation | 2 |
| Device short name | iACTs |
| Tightening torque | 0.8 N.m |
| Compatibility code | IACTs |
| Signal contacts composition | 1 C/O |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -20...50 °C |
MPN
A9C15915
