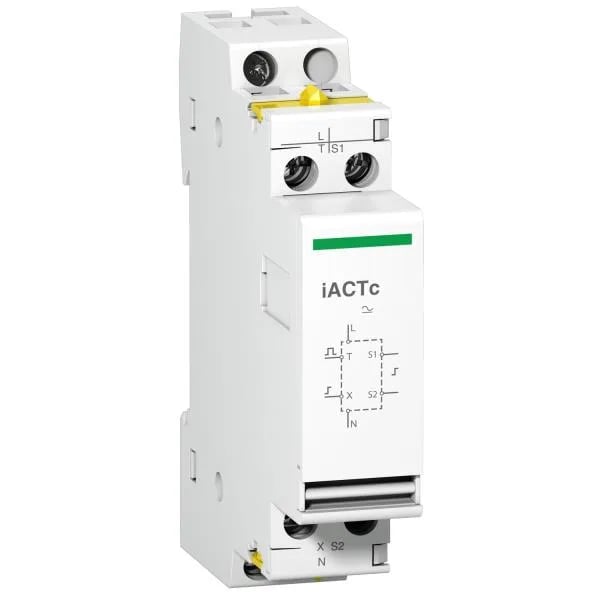

Schneider Electric A9C18308
MPNA9C18308
Active
A9C18308 - ACTI9 RANGE by SCHNEIDER ELECTRIC
$67.31Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Double control input auxiliary |
| Supply voltage | 220...240 V AC at 50/60 Hz |
| Coil voltage | 230...240 V AC 50/60 Hz impulse 250 ms 230...240 V AC 50/60 Hz maintained |
| Voltage | 440 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Maximum output current | 0.2 A holding 2 A inrush |
| Hold-in power consumption in | 3 VA |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Fixed, on the left of CT |
| Mounting support | DIN rail |
| Wire stripping length | 9 mm |
| Connections - terminals | Control circuit: tunnel type terminals 2 cable(s) 2.5 mm² flexible Control circuit: tunnel type terminals 2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5...2.5 mm² rigid Control circuit: tunnel type terminals 1 cable(s) 1.5...2.5 mm² flexible with ferrule Control circuit: yellow clips |
All specifications
| Parameter | Value |
|---|---|
| Depth | 60 mm |
| Width | 18 mm |
| Color | White |
| Height | 81 mm |
| Standards | IEC/EN 61095 |
| Range | Acti9 |
| 9 mm pitches | 2 |
| Market segment | Small commercial Residential |
| Device short name | iACTc |
| Tightening torque | 0.8 N.m |
| Compatibility code | IACTc |
| Overvoltage category | III |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -5...50 °C |
MPN
A9C18308
