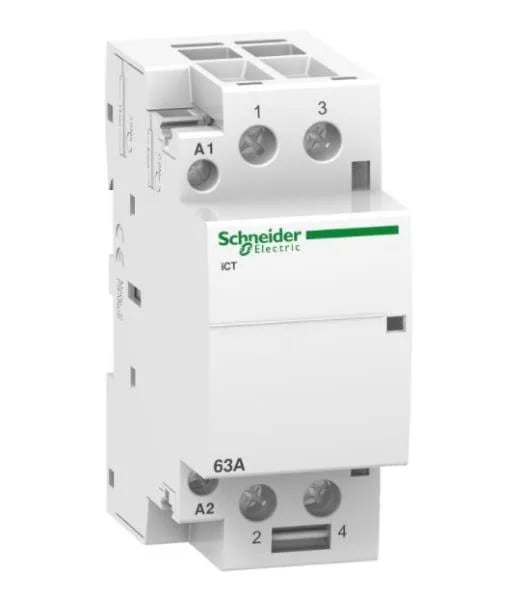

Schneider Electric A9C20162
MPNA9C20162
Active
A9C20162 - ACTI 9 ICT by SQUARE D
$95.25Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Remote control |
| Network type | AC |
| Range of product | Acti9 |
| Control signal type | Maintained |
| Product or component type | Contactor |
| Coil voltage | 24 V AC 50 Hz |
| Voltage | 500 V AC 50/60 Hz |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ie] rated operational current | 63 A AC-7A 20 A AC-7B |
| Maximum power | 1.6 W at 250 V AC |
| Inrush power in | 34 VA |
All specifications
| Parameter | Value |
|---|---|
| Hold-in power consumption in | 4.6 VA |
| Network frequency | 50 Hz |
| Switching frequency | 100 switching operations/day |
| Poles | 2P |
| Pole contact composition | 2 NO |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Connections - terminals | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals1 cable(s) 1.5...2.5 mm² rigid Power circuit: tunnel type terminals1 cable(s) 6...16 mm² flexible Power circuit: tunnel type terminals1 cable(s) 6...25 mm² rigid Control circuit: tunnel type terminals2 cable(s) 1.5...2.5 mm² flexible |
| Pollution degree | 2 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 68.5 mm |
| Width | 36 mm |
| Color | White |
| Height | 85 mm |
| Electrical durability | 100000 cycles IEC/EN 61095 63 A 50 Hz AC-7A 30000 cycles IEC/EN 61095 20 A 50 Hz AC-7B 30000 cycles IEC/EN 61095 50 Hz AC-7C 100000 cycles EN/IEC 60947-4-1 50 Hz AC-1 30000 cycles EN/IEC 60947-4-1 50 Hz AC-3 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5a 30000 cycles EN/IEC 60947-4-1 50 Hz AC-5b |
| Mechanical durability | 1000000 cycles |
| Standards | IEC/EN 61095 |
| Noise level | 30 dB |
| 9 mm pitches | 4 |
| Market segment | Residential Small commercial |
| Tropicalisation | 2 conforming to EN 60947-4-1 2 conforming to EN 61095 2 conforming to IEC 1095 |
| Local signalling | Action indicator |
| Device short name | iCT |
| Tightening torque | Control circuit: 0.8 N.m Power circuit: 3.5 N.m |
| Compatibility code | ICT |
| Device application | Motor-heating-lighting |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -5...60 °C |
MPN
A9C20162
