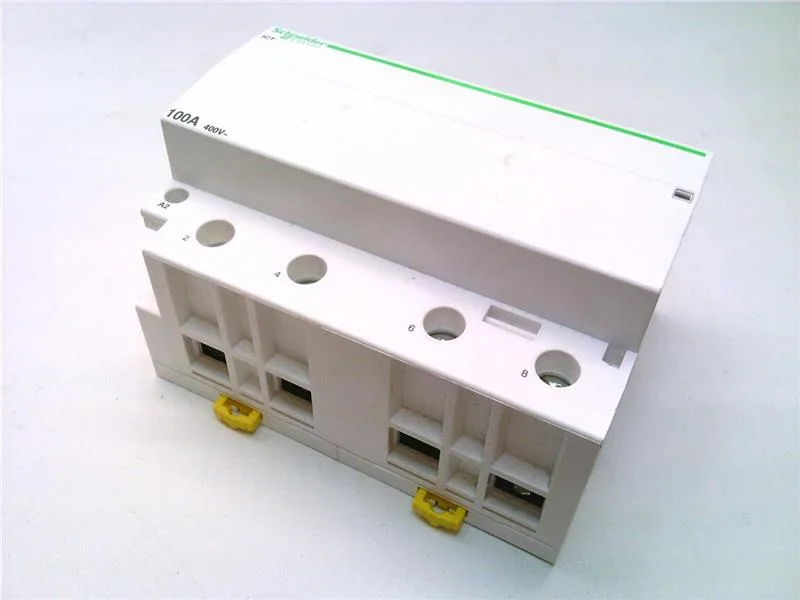

Schneider Electric A9C20884
MPNA9C20884
Active
A9C20884 by SQUARE D
$254.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Remote control |
| Network type | AC |
| Range of product | Acti9 |
| Control signal type | Maintained |
| Product or component type | Contactor |
| Coil voltage | 220...240 V AC 50 Hz |
| Voltage | 500 V AC 50 Hz |
| [Ue] rated operational voltage | 400 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Ie] rated operational current | 100 A AC-7A |
| Maximum power | AC-7A: 4.2 W at 400 V AC 50 Hz |
| Inrush power in | 106 VA |
All specifications
| Parameter | Value |
|---|---|
| Hold-in power consumption in | 13 VA |
| Network frequency | 50 Hz |
| Switching frequency | 100 switching operations/day |
| Poles | 4P |
| Pole contact composition | 4 NO |
| Utilisation category | AC-1 conforming to EN 60947-4-1 AC-7A conforming to EN 61095 AC-7A conforming to IEC 61095 AC-7A conforming to UTE C 61-481 AC-1 conforming to IEC 60947-4-1 |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Connections - terminals | Control circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid Control circuit: tunnel type terminals1 cable(s) 1.5...2.5 mm² rigid Control circuit: tunnel type terminals2 cable(s) 1.5...2.5 mm² flexible Power circuit: tunnel type terminals1 cable(s) 6...35 mm² solid or flexible |
| Pollution degree | 2 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 60 mm |
| Width | 108 mm |
| Color | White |
| Height | 85 mm |
| Electrical durability | 30000 cycles EN 61095 400 V 16 A AC 50 Hz AC-7A 30000 cycles UTE C 61-481 400 V 6 A AC 50 Hz AC-7A 30000 cycles IEC 61095 400 V AC 50 Hz AC-7A |
| Standards | EN 61095 IEC 61095 UTE C 61-481 |
| Noise level | 30 dB |
| 9 mm pitches | 12 |
| Market segment | Small commercial Residential |
| Tropicalisation | 2 conforming to EN 60947-4-1 |
| Local signalling | Action indicator |
| Device short name | iCT |
| Tightening torque | Power circuit: 3.5 N.m Control circuit: 0.8 N.m A1 / A2 |
| Compatibility code | ICT |
| Device application | Heating-low inductive load |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -5...60 °C |
MPN
A9C20884
