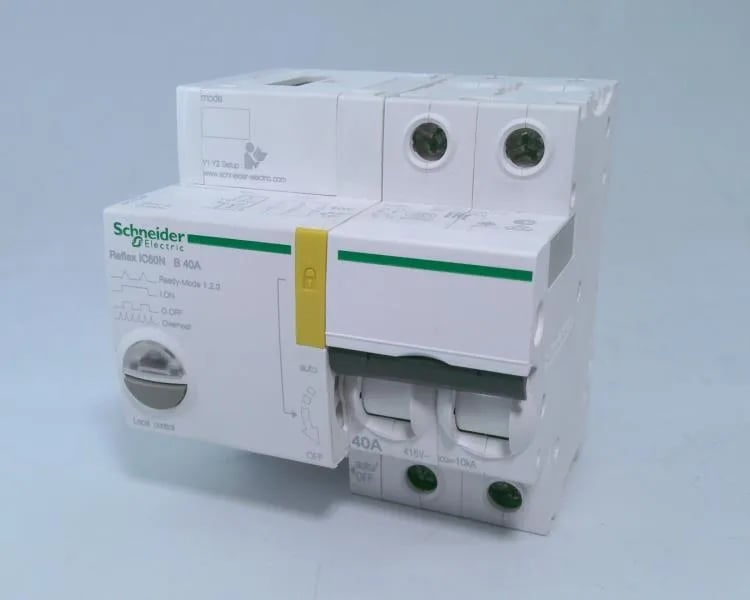

Schneider A9C61240 Din Rail Mount Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Control type | Remote control by continuous command ON/OFF button Toggle Remote control by pulse |
| Network type | AC |
| Control signal type | Maintained Maintained very low voltage Impulse |
| Product or component type | Integrated control circuit breaker |
| Supply voltage | 230 V AC at 50/60 Hz |
| Coil voltage | 230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC |
| Voltage | 500 V AC |
| Breaking capacity | 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Current | 40 A |
| Breaking capacity code | N |
| Network frequency | 50/60 Hz |
| Poles description | 2P |
| Parameter | Value |
|---|---|
| Number of protected poles | 2 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Pollution degree | 3 |
| Relative humidity | 93 % at 40 °C |
| Depth | 77 mm |
| Width | 81 mm |
| Color | White |
| Height | 84 mm |
| Electrical durability | AC-1: 50000 cycles AC 50 Hz |
| Mechanical durability | 50000 cycles |
| Range | Acti9 |
| Curve code | B |
| 9 mm pitches | 9 |
| Tropicalisation | 2 |
| Local signalling | Flashing LED: device overheat Red LED: fault Flashing LED: device ready Green LED: device ON Flashing LED: device tripped |
| Device short name | Reflex iC60N |
| Device application | Control Distribution |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Separate block |
| Provision for padlocking | Padlockable |
| Contact position indicator | Yes |
| Locking options description | Padlock in OFF position |
The A9C61240 is a Schneider Acti9 Reflex iC60N integrated control circuit breaker rated for 40 A switching current on a 230 V AC supply, with 2 poles and a B tripping curve for resistive and light inductive loads. It uses a thermal-magnetic trip unit, is sealed to IP20, and accepts remote control via continuous or pulse commands on the 230 V coil.
