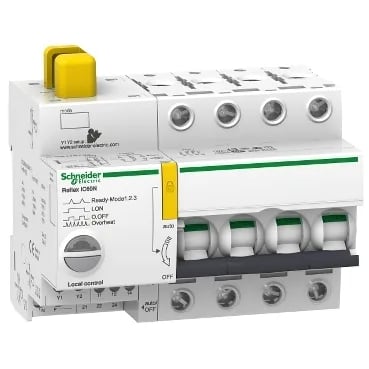

Schneider Electric A9C61410

Schneider A9C61410 Reflex iC60N Ti24 10 A 4P curve B integrated control MCB

MPNA9C61410
Obsolete

Schneider A9C61410 Din Rail Mount Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.

$218.44Ref. price · indicative, final on quote
Schneider Electric A9C61410 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

A9C61410 key specifications
ParameterValue
Control typeToggle ON/OFF button Remote control by pulse Remote control by continuous command
Network typeAC
Control signal typeImpulse Maintained very low voltage Maintained
Product or component typeIntegrated control circuit breaker
Supply voltage230 V AC at 50/60 Hz
Coil voltage230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC
Voltage500 V AC
Breaking capacity20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
Current10 A
Breaking capacity codeN
Network frequency50/60 Hz
Poles description4P

All specifications

A9C61410 additional specifications
ParameterValue
Number of protected poles4
IP degree of protectionIP20 conforming to IEC 60529
Mounting modeFixed
Mounting support35 mm symmetrical DIN rail
Pollution degree3
Relative humidity93 % at 40 °C
Depth77 mm
Width117 mm
ColorWhite
Height84 mm
Electrical durabilityAC-1: 50000 cycles AC 50 Hz
Mechanical durability50000 cycles
RangeActi9
Curve codeB
9 mm pitches13
Tropicalisation2
Local signallingFlashing LED: device overheat Red LED: fault Flashing LED: device ready Green LED: device ON Flashing LED: device tripped
Device short nameReflex iC60N
Device applicationDistribution Control
Trip unit technologyThermal-magnetic
Earth-leakage protectionSeparate block
Provision for padlockingPadlockable
Contact position indicatorYes
Locking options descriptionPadlock in OFF position

Product details

Overview

The A9C61410 is a Schneider Acti9 Reflex iC60N integrated control circuit breaker rated 10 A, 4-pole, curve B, on a 230 V AC 50/60 Hz supply. It combines overcurrent protection with remote switching via pulse or continuous command, and includes local signalling LEDs for ON, tripped, and fault states.

Compared to the 4-pole A9F54332 (also 10 A curve B), the A9C61410 adds integrated remote control and signalling — the A9F54332 is a standard MCB without Ti24 electronics. Choose the A9C61410 when the panel requires remote ON/OFF or fault indication from a PLC; choose the A9F54332 for a simpler overcurrent-only branch.

MPN
A9C61410
