Schneider Electric A9C62440

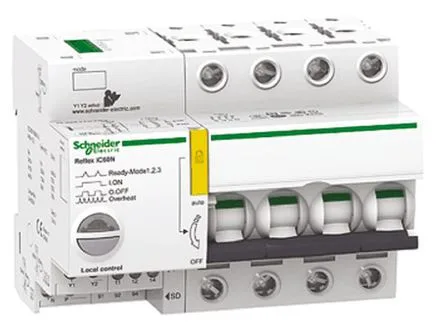

Schneider A9C62440 Reflex iC60N Ti24 40A 4P curve C integrated control MCB

MPNA9C62440
Obsolete

Schneider A9C62440 Molded Case Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.

$275.59Ref. price · indicative, final on quote
Schneider Electric A9C62440 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

A9C62440 key specifications
ParameterValue
Control typeRemote control by continuous command Remote control by pulse Toggle ON/OFF button
Network typeAC
Control signal typeImpulse Maintained very low voltage Maintained
Product or component typeIntegrated control circuit breaker
Supply voltage230 V AC at 50/60 Hz
Coil voltage230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC
Voltage500 V AC
Breaking capacity20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
Current40 A
Breaking capacity codeN
Network frequency50/60 Hz
Poles description4P

All specifications

A9C62440 additional specifications
ParameterValue
Number of protected poles4
IP degree of protectionIP20 conforming to IEC 60529
Mounting modeFixed
Mounting support35 mm symmetrical DIN rail
Pollution degree3
Relative humidity93 % at 40 °C
Depth77 mm
Width117 mm
ColorWhite
Height84 mm
Electrical durabilityAC-1: 50000 cycles AC 50 Hz
Mechanical durability50000 cycles
RangeActi9
Curve codeC
9 mm pitches13
Tropicalisation2
Local signallingFlashing LED: device tripped Green LED: device ON Red LED: fault Flashing LED: device ready Flashing LED: device overheat
Device short nameReflex iC60N
Device applicationDistribution Control
Trip unit technologyThermal-magnetic
Earth-leakage protectionSeparate block
Provision for padlockingPadlockable
Contact position indicatorYes
Locking options descriptionPadlock in OFF position

Product details

Overview

The A9C62440 is a Schneider Reflex iC60N Ti24 integrated control circuit breaker rated 40 A, 4-pole, curve C, combining overcurrent protection and remote switching in a single unit on the Acti9 range. It accepts a 230 V AC control signal via continuous, pulse, or maintained command, and provides local LED indication for ON, fault, and overheat status.

Compared to the 3-pole M9F22313 (13 A, 14 kA breaking capacity), the A9C62440 offers 4 poles at 40 A switching current with an N-rated breaking capacity, suiting higher-current 4-wire distribution panels where the M9F22313 is limited to 3-pole 13 A loads.

MPN
A9C62440
