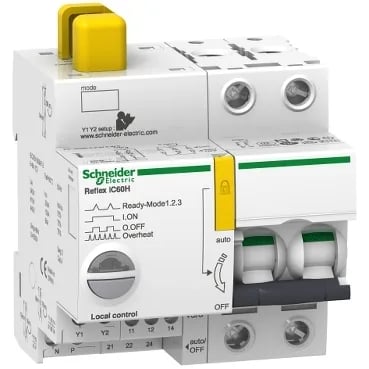

Schneider Electric A9C64210

Schneider Electric A9C64210

MPNA9C64210
Obsolete

Reflex iC60H Ti24 10 A 2P curve B integrated control MCB

$686.47Ref. price · indicative, final on quote
Schneider Electric A9C64210 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

A9C64210 key specifications
ParameterValue
Control typeToggle Remote control by pulse ON/OFF button Remote control by continuous command
Network typeAC
Control signal typeImpulse Maintained Maintained very low voltage
Product or component typeIntegrated control circuit breaker
Supply voltage230 V AC at 50/60 Hz
Coil voltage230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC
Voltage500 V AC
Breaking capacity30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
Current10 A
Breaking capacity codeH
Network frequency50/60 Hz
Poles description2P

All specifications

A9C64210 additional specifications
ParameterValue
Number of protected poles2
IP degree of protectionIP20 conforming to IEC 60529
Mounting modeFixed
Mounting support35 mm symmetrical DIN rail
Pollution degree3
Relative humidity93 % at 40 °C
Depth77 mm
Width81 mm
ColorWhite
Height84 mm
Electrical durabilityAC-1: 50000 cycles AC 50 Hz
Mechanical durability50000 cycles
RangeActi9
Curve codeB
9 mm pitches9
Tropicalisation2
Local signallingFlashing LED: device overheat Flashing LED: device ready Flashing LED: device tripped Green LED: device ON Red LED: fault
Device short nameReflex iC60H
Device applicationDistribution Control
Trip unit technologyThermal-magnetic
Earth-leakage protectionSeparate block
Provision for padlockingPadlockable
Contact position indicatorYes
Locking options descriptionPadlock in OFF position
MPN
A9C64210
