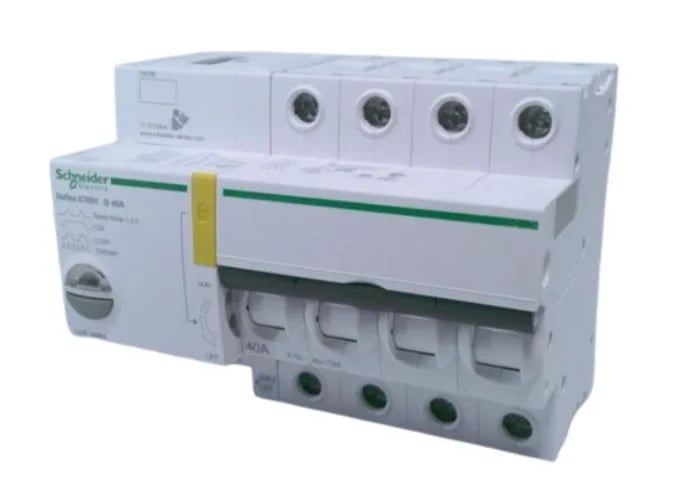

Schneider Electric A9C64440

Schneider A9C64440 Reflex iC60H Ti24 40 A 4P curve B integrated control MCB

MPNA9C64440
Obsolete

Schneider A9C64440 Din Rail Mount Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.

$199.48Ref. price · indicative, final on quote
Schneider Electric A9C64440 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

A9C64440 key specifications
ParameterValue
Control typeRemote control by pulse ON/OFF button Remote control by continuous command Toggle
Network typeAC
Control signal typeMaintained very low voltage Maintained Impulse
Product or component typeIntegrated control circuit breaker
Supply voltage230 V AC at 50/60 Hz
Coil voltage230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC
Voltage500 V AC
Breaking capacity30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
Current40 A
Breaking capacity codeH
Network frequency50/60 Hz
Poles description4P

All specifications

A9C64440 additional specifications
ParameterValue
Number of protected poles4
IP degree of protectionIP20 conforming to IEC 60529
Mounting modeFixed
Mounting support35 mm symmetrical DIN rail
Pollution degree3
Relative humidity93 % at 40 °C
Depth77 mm
Width117 mm
ColorWhite
Height84 mm
Electrical durabilityAC-1: 50000 cycles AC 50 Hz
Mechanical durability50000 cycles
RangeActi9
Curve codeB
9 mm pitches13
Tropicalisation2
Local signallingRed LED: fault Flashing LED: device ready Flashing LED: device tripped Flashing LED: device overheat Green LED: device ON
Device short nameReflex iC60H
Device applicationDistribution Control
Trip unit technologyThermal-magnetic
Earth-leakage protectionSeparate block
Provision for padlockingPadlockable
Contact position indicatorYes
Locking options descriptionPadlock in OFF position

Product details

Overview

The A9C64440 is a Schneider Acti9 Reflex iC60H integrated control circuit breaker rated for 40 A switching current on a 4-pole, curve B thermal-magnetic trip, energised by a 230 V AC control coil. It supports remote control via pulse ON/OFF button or continuous command, and accepts both maintained and impulse control signals, making it suited for distribution and control applications with PLC integration. Sealed to IP20 with pollution degree 3, it handles up to 93% humidity and is padlockable in the OFF position with a contact position indicator for safe isolation.

MPN
A9C64440
