Schneider A9C65316 Molded Case Circuit Breakers — now discontinued, supplied from remaining surplus and broker stock.
| Parameter | Value |
|---|---|
| Control type | ON/OFF button Remote control by continuous command Remote control by pulse Toggle |
| Network type | AC |
| Control signal type | Maintained very low voltage Impulse Maintained |
| Product or component type | Integrated control circuit breaker |
| Supply voltage | 230 V AC at 50/60 Hz |
| Coil voltage | 230 V AC 50/60 Hz 24 V AC 50/60 Hz 48 V AC 50/60 Hz 24 V DC 48 V DC |
| Voltage | 500 V AC |
| Breaking capacity | 30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| Current | 16 A |
| Breaking capacity code | H |
| Network frequency | 50/60 Hz |
| Poles description | 3P |
| Parameter | Value |
|---|---|
| Number of protected poles | 3 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Pollution degree | 3 |
| Relative humidity | 93 % at 40 °C |
| Depth | 77 mm |
| Width | 99 mm |
| Color | White |
| Height | 84 mm |
| Electrical durability | AC-1: 50000 cycles AC 50 Hz |
| Mechanical durability | 50000 cycles |
| Range | Acti9 |
| Curve code | C |
| 9 mm pitches | 11 |
| Tropicalisation | 2 |
| Local signalling | Red LED: fault Flashing LED: device ready Flashing LED: device overheat Green LED: device ON Flashing LED: device tripped |
| Device short name | Reflex iC60H |
| Device application | Control Distribution |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Separate block |
| Provision for padlocking | Padlockable |
| Contact position indicator | Yes |
| Locking options description | Padlock in OFF position |

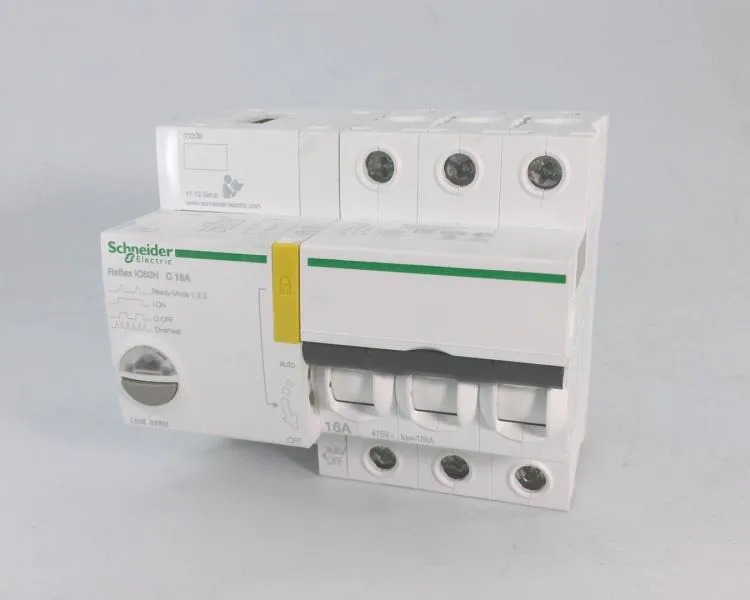

The A9C65316 is a Schneider Reflex iC60H Ti24 integrated control circuit breaker in the Acti9 range, rated for 16 A switching current on a 3-pole, curve C thermal-magnetic trip, with a 230 V AC control coil. It combines overcurrent protection with remote ON/OFF, pulse, and maintained control, making it a single-device solution for PLC-driven distribution panels.
