Schneider Electric A9C70342

Schneider Electric A9C70342

MPNA9C70342
Active

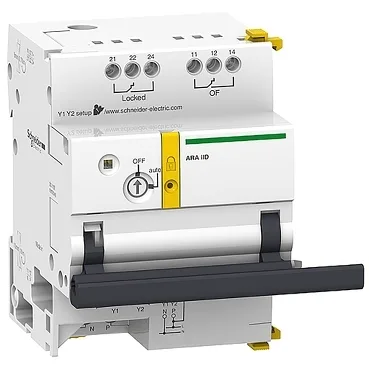

Acti 9 - ARA auto recloser aux for iID 2P - 1 Prog

$218.39Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

A9C70342 key specifications
ParameterValue
Control typeInhibition of automatism maintained 230 V AC 50/60 Hz Ultimate reclosing impulse 230 V AC 50/60 Hz
Range of productActi9
Product or component typeAutomatic recloser auxiliary
Supply voltage230 V AC 50/60 Hz
Signalling circuit voltage24 V 10 mA AC/DC 230 V 1 A AC
Voltage400 V
[Uimp] rated impulse withstand voltage6 kV
Input current5 mA
Power consumption in2 W
IP degree of protectionIP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Mounting modeClip-on
Mounting supportDIN rail

All specifications

A9C70342 additional specifications
ParameterValue
Wire stripping lengthPower supply: 10 mm for bottom connection Input: 10 mm for bottom connection Output: 8 mm for top connection
Response time< 500 ms
Pollution degree3 conforming to IEC 60947
Relative humidity93 % at 40 °C
Depth75.5 mm
Width63 mm
ColorWhite
Height93 mm
Electrical durability5000 cycles
9 mm pitches7
Tropicalisation2
Impulse duration>= 200 ms control circuit
Local signallingFlashing orange LED: not operational Flashing green LED: normal operation Flashing red LED: reclosing cycle in progress Fixed red LED: automatic recloser locked
Value of settingProgram 1: 15 reclosing attemps, long fixed cycle
Device short nameARA iID
Tightening torquePower supply: 1 N.m Input: 1 N.m Output: 0.7 N.m
Overvoltage categoryII
Provision for padlockingPadlockable
Signal contacts composition2 OF volt-free contacts
Ambient air temperature for storage-40...70 °C
Ambient air temperature for operation-25...60 °C
Comb busbar and distribution block compatibilityNO
MPN
A9C70342
