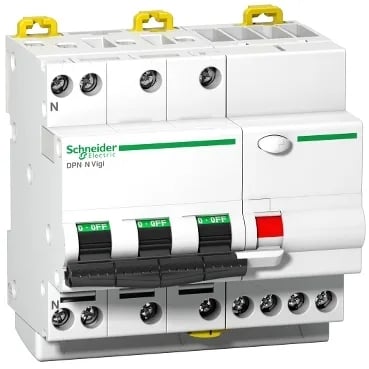

Acti9 DPN N Vigi - RCBO - 3P+N - 16A - C Curve - 6000A - 300mA - type A
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Residual current breaker with overcurrent protection (RCBO) |
| Voltage | 440 V AC 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Surge current | 250 A |
| Breaking capacity | 6000 A Icn at 380...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Current | 16 A |
| Residual current tripping technology | Voltage independent |
| [Ics] rated service breaking capacity | 6000 A 100 % x Icn at 380...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Network frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Poles description | 3P + N |
| Number of protected poles | 3 |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Connection pitch | 18 mm between phases 9 mm between phase and neutral |
| Wire stripping length | 15 mm for top or bottom connection |
| Connections - terminals | Tunnel type terminal top or bottom 0.75...16 mm² rigid Tunnel type terminal top or bottom 0.33...10 mm² flexible Tunnel type terminal top or bottom 0.33...10 mm² flexible with ferrule |
| Pollution degree | 3 |
| Relative humidity | 90 % at 55 °C |
| Depth | 78.5 mm |
| Width | 90 mm |
| Color | White |
| Height | 91 mm |
| Product weight | 498 g |
| Electrical durability | 20000 cycles |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 61009-2-1 |
| Range | Acti9 |
| Curve code | C |
| 9 mm pitches | 10 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Limitation class | 3 conforming to EN/IEC 61009-2-1 |
| Local signalling | ON, OFF, fault trip |
| Neutral position | Left |
| Device short name | DPN N Vigi |
| Tightening torque | 2 N.m top or bottom |
| Device application | Distribution |
| Overvoltage category | III conforming to IEC 60364 |
| Trip unit technology | Thermal-magnetic |
| Magnetic tripping limit | 5...10 x In |
| Earth-leakage protection | Integrated |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 300 mA |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| Locking options description | Sealable Padlocking device |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1 |
| Earth-leakage protection class | Type A |
| Rated breaking and making capacity | Idm 6000 A at 380...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Ambient air temperature for storage | -30...70 °C |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -25...60 °C |
| Comb busbar and distribution block compatibility | Top or bottom: YES |
