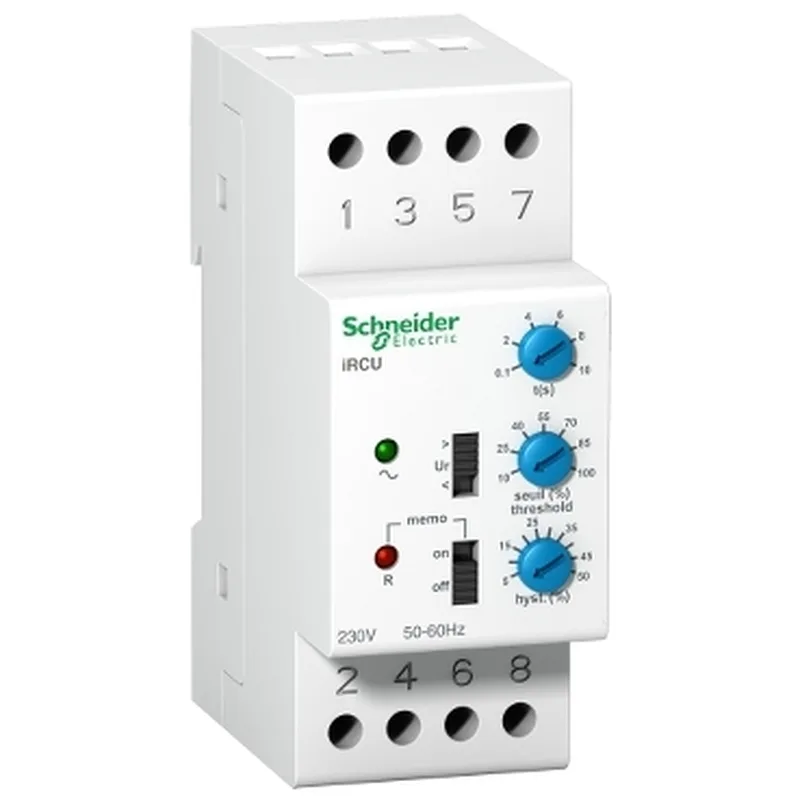

Schneider Electric A9E21182
MPNA9E21182
Active
voltage control relay iRCU - 8 A - 230 V 50/60Hz - 1 OC
$508.83Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type of setting | Selected by wiring: measurement range Switch: overvoltage Switch: undervoltage |
| Range of product | Acti9 |
| Product or component type | Control relay |
| Supply voltage | 230 V AC at 50/60 Hz |
| [Ie] rated operational current | 8 A at 250 V AC 50/60 Hz (cos Phi = 1) |
| Power consumption in | 3 VA |
| IP degree of protection | IP20 |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Connections - terminals | Tunnel type terminals6 cable(s) 1.5 mm² rigid |
| Depth | 67 mm |
| Width | 36 mm |
All specifications
| Parameter | Value |
|---|---|
| Color | White |
| Height | 88.1 mm |
| Hysteresis | 5...50 % |
| 9 mm pitches | 4 |
| Accuracy error | +/- 10 % |
| Local signalling | Reports when the preset threshold is reached Red LED for fault Green LED for power on |
| Time delay range | 0.1...10 s |
| Device short name | iRCU |
| Device application | Voltage control relay |
| Tripping threshold | 10...100 % |
| Analogue input range | 50...500 V AC 10...100 V DC 50...500 V DC 10...100 V AC |
| Signal contacts composition | 1 C/O |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -5...55 °C |
MPN
A9E21182
