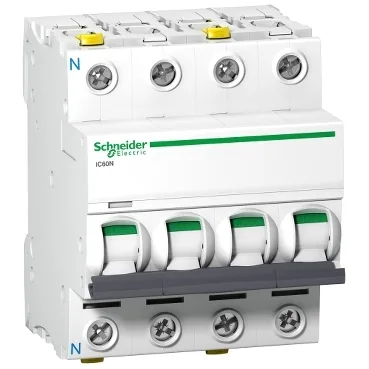

Schneider Electric A9F03706 Acti9 iC60 MCB, 6 A, 3P+N, Curve

MPNA9F03706
Obsolete

Schneider Electric Acti9 iC60, miniature circuit breaker, 3P+N, 6 A, Curve B, 36 kA Icu, DIN rail mount, white.

Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

A9F03706 — Identification
ParameterValue
Product nameActi9 iC60
Product rangeActi9
Product/component typeMiniature circuit-breaker
Device applicationDistribution
A9F03706 — Ratings
ParameterValue
Rated current (In)6 A
Poles configuration3P + N
Number of protected poles3
Breaking capacity36 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 6000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1
Rated service breaking capacity (Ics)27 kA 75 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
Rated insulation voltage (Ui)500 V AC 50/60 Hz conforming to EN/IEC 60947-2
Rated impulse withstand voltage (Uimp)6 kV conforming to EN/IEC 60947-2
Network type (AC/DC)DC AC
Network frequency50/60 Hz
Utilisation categoryCategory A conforming to EN/IEC 60947-2
Overvoltage categoryIV
A9F03706 — Protection
ParameterValue
Curve codeB
Trip unit technologyThermal-magnetic
Magnetic tripping limit4 x In +/- 20 %
Earth-leakage protectionSeparate block
Suitability for isolationYes conforming to EN/IEC 60898-1 Yes conforming to EN/IEC 60947-2
Limitation class3 conforming to EN/IEC 60898-1
Electrical durability (cycles)10000 cycles
Mechanical durability (cycles)20000 cycles
A9F03706 — Mechanical
ParameterValue
Mounting supportDIN rail
Control typeToggle
Terminal connection typeDouble terminal (top or bottom) 1...25 mm² rigid Double terminal (top or bottom) 1...16 mm² flexible
Terminal tightening torque2 N.m top or bottom
Wire stripping length14 mm for top or bottom connection
Contact position indicatorYes
Local signalling/indicationTrip indicator
Width72 mm
Height91 mm
Depth78.5 mm
Number of 9 mm pitches8
A9F03706 — Environmental
ParameterValue
Operating ambient temperature-35...70 °C
Storage ambient temperature-40...85 °C
IP degree of protectionIP20 conforming to IEC 60529
Pollution degree3 conforming to EN/IEC 60947-2
Relative humidity95 % at 55 °C
Tropicalisation class2 conforming to IEC 60068-1
A9F03706 — Approvals
ParameterValue
StandardsEN/IEC 60947-2 EN/IEC 60898-1

Product details

The Schneider Electric A9F03706 is a 3P+N miniature circuit breaker from the Acti9 iC60 range, rated at 6 A with a B-curve tripping characteristic. It's a thermal-magnetic MCB for distribution boards, certified to both EN/IEC 60898-1 and EN/IEC 60947-2, so it covers residential and industrial coordination requirements. The 36 kA Icu at 12–133 V AC gives you serious fault-clearing headroom on the low-voltage side of a transformer—useful when the service entrance feeds a sub-distribution board with high prospective fault current.

Breaking capacity drops with voltage: 36 kA Icu at 12–133 V AC, 20 kA at 220–240 V, 10 kA at 380–415 V, and 6 kA at 440 V. The Icn rating under EN/IEC 60898-1 is 6000 A at 400 V AC. For a 6 A MCB, that's more than enough for most final circuits, but the 10 kA at 400 V matters if you're coordinating with an upstream device in a panel with limited through-fault energy.

Snaps onto a DIN rail, 72 mm wide (8 x 9 mm pitches), 91 mm tall, 78.5 mm deep. IP20 finger-safe front. Double terminals top and bottom accept 1–25 mm² rigid or 1–16 mm² flexible; strip 14 mm, torque to 2 N.m. Neutral is on the left, fixed position. The toggle switch gives a clear trip-indicator flag—no guessing whether it's off or tripped.
