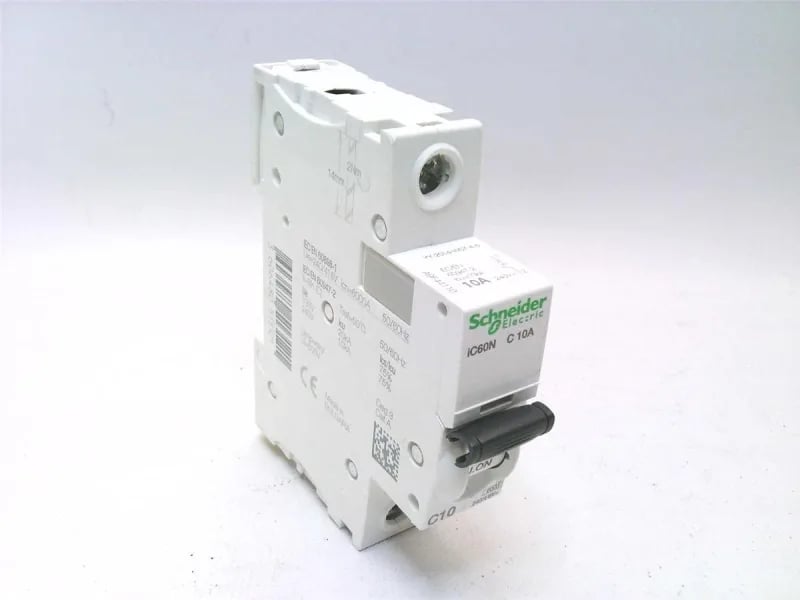

Schneider Electric A9F44110

Schneider A9F44110 iC60N MCB, 10A C-Curve

MPNA9F44110
Active

Schneider Electric Acti9 iC60N, A9F44110, miniature circuit-breaker, 10 A, C-curve, 1-pole, 36 kA Icu, 18 mm wide, 78.5 mm deep.

$27.94Ref. price · indicative, final on quote
Schneider Electric A9F44110 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

A9F44110 key specifications
ParameterValue
Control typeToggle
Network typeAC/DC
Product or component typeMiniature circuit-breaker
Voltage500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Ue] rated operational voltage12...60 V AC 50/60 Hz 100...133 V AC 50/60 Hz 220...240 V AC 50/60 Hz 12...60 V DC 60...72 V DC
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-2
Breaking capacity36 kA Icu at 10...60 V AC 50/60 Hz conforming to EN/IEC 60947-2 20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2 10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2 10 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2 6000 A Icn at 240 V AC 50/60 Hz conforming to EN/IEC 60898-1
Current10 A
[Ics] rated service breaking capacity27 kA 75 % conforming to EN/IEC 60947-2 - 12...60 V AC 50/60 Hz 15 kA 75 % conforming to EN/IEC 60947-2 - 100...133 V AC 50/60 Hz 7.5 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 15 kA 100 % conforming to EN/IEC 60947-2 - 12...60 V DC 10 kA 100 % conforming to EN/IEC 60947-2 - 60...72 V DC
Network frequency50/60 Hz
Poles description1P
Number of protected poles1

All specifications

A9F44110 additional specifications
ParameterValue
Utilisation categoryCategory A conforming to EN/IEC 60947-2
IP degree of protectionIP20 conforming to IEC 60529
Mounting modeClip-on
Mounting supportRail
Wire stripping length14 mm for top or bottom connection
Connections - terminalsSingle terminal (top or bottom) 1...25 mm² rigid Single terminal (top or bottom) 1...16 mm² flexible
Pollution degree3 conforming to EN/IEC 60947-2
Relative humidity95 % at 55 °C
Depth78.5 mm
Width18 mm
ColorWhite
Height85 mm
Electrical durability10000 cycles
Mechanical durability20000 cycles
StandardsEN/IEC 60898-1 EN/IEC 60947-2
RangeActi9
Curve codeC
9 mm pitches2
Tropicalisation2 conforming to IEC 60068-1
Limitation class3 conforming to EN/IEC 60898-1
Local signallingTrip indicator
Device short nameIC60N
Tightening torque2 N.m top or bottom
Overvoltage categoryIV
Trip unit technologyThermal-magnetic
Magnetic tripping limit8 x In +/- 20 %
Earth-leakage protectionSeparate block
Provision for padlockingPadlockable
Contact position indicatorYes
Ambient air temperature for storage-40...85 °C
Ambient air temperature for operation-35...70 °C

Product details

What it is and key ratings

The A9F44110: Snap-in 18 mm wide, 10 A C-curve MCB for Acti9 boards. Thermal-magnetic trip, 36 kA Icu at 10-60 V AC, so it handles substantial fault currents at low voltage. 2-module pitch, 78.5 mm deep – fits standard Acti9 panels.

Mounting and wiring considerations

Clip-on DIN rail mount. Terminal accepts 1-25 mm² rigid or 1-16 mm² flexible. Torque to 2 N.m. Padlockable toggle for lockout/tagout.

Declared standards: EN/IEC 60898-1 and EN/IEC 60947-2. Pollution degree 3, overvoltage category IV. IP20 finger-safe.

Frequently asked questions

What range is this breaker from?

Acti9 range.

What compliance standards does it meet?

EN/IEC 60898-1 and EN/IEC 60947-2, pollution degree 3, overvoltage category IV, IP20.
