Schneider Electric A9F85332

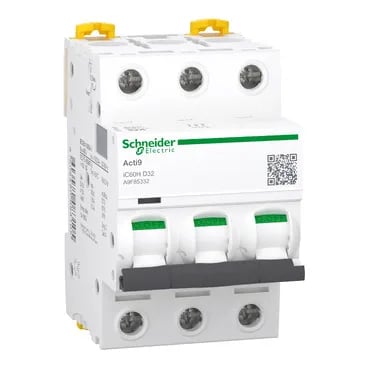

Schneider Electric A9F85332 Acti9 iC60H MCB, 3P, 32A, D Curv

MPNA9F85332
Active

Schneider Electric Acti9 iC60H, MCB, 3P, 32A, D curve, 42kA breaking capacity, White, DIN rail mount, current production.

$360.00Ref. price · indicative, final on quote
Schneider Electric A9F85332 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

A9F85332 key specifications
ParameterValue
Control typeToggle
Network typeAC DC
Product or component typeMiniature circuit-breaker
Voltage500 V AC 50/60 Hz EN/IEC 60947-2
[Uimp] rated impulse withstand voltage6 kVEN/IEC 60947-2
Breaking capacity42 kA Icu 12...133 V AC 50/60 Hz EN/IEC 60947-2 30 kA Icu 220...240 V AC 50/60 Hz EN/IEC 60947-2 15 kA Icu 380...415 V AC 50/60 Hz EN/IEC 60947-2 10 kA Icu 440 V AC 50/60 Hz EN/IEC 60947-2 15 kA Icu 10000 A Icn 400 V AC 50/60 Hz EN/IEC 60898-1
Line rated current32 A
[Ics] rated service breaking capacity21 kA 50 % EN/IEC 60947-2 - 12...133 V AC 50/60 Hz 15 kA 50 % EN/IEC 60947-2 - 220...240 V AC 50/60 Hz 7.5 kA 50 % EN/IEC 60947-2 - 380...415 V AC 50/60 Hz 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz 15 kA 100 % EN/IEC 60947-2 - <= 180 V DC
Network frequency50/60 Hz
Poles description3P
Number of protected poles3
Utilisation categoryCategory A EN/IEC 60947-2

All specifications

A9F85332 additional specifications
ParameterValue
IP degree of protectionIP20 conforming to IEC 60529
Mounting modeFixed
Mounting supportDIN rail
Wire stripping length0.6 in (14 mm) for top or bottom connection
Connections - terminalsSingle terminal top or bottom) 0.002...0.05 in² (1...35 mm²) rigid Single terminal top or bottom) 0.002...0.04 in² (1...25 mm²) flexible
Pollution degree3 EN/IEC 60947-2
Relative humidity95 % 131 °F (55 °C)
Operating altitude0...6561.68 ft (0...2000 m)
ColorWhite
Depth3.09 in (78.5 mm)
Width2.1 in (54 mm)
Height3.3 in (85 mm)
Electrical durability10000 cycles
Mechanical durability20000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60898-1
RangeActi9
CategoryUS10DE200908
Curve codeD
9 mm pitches6
Tropicalisation2 IEC 60068-1
Limitation class3 EN/IEC 60898-1
Local signallingTrip indicator
Device short nameiC60H
Tightening torque31.0 lbf.in (3.5 N.m) top or bottom
Device applicationDistribution
Overvoltage categoryIV
Trip unit technologyThermal-magnetic
Magnetic tripping limit12 x In +/- 20 %
Earth-leakage protectionSeparate block
Suitability for isolationYes EN/IEC 60947-2 Yes EN/IEC 60898-1
Contact position indicatorYes
Ambient air temperature for storage-40...185 °F (-40...85 °C)
Ambient air temperature for operation-31...158 °F (-35...70 °C)
Comb busbar and distribution block compatibilityTop or bottom YES

Product details

Lead specs

Schneider Electric A9F85332 is an Acti9 iC60H thermal-magnetic miniature circuit breaker. Three poles, D curve, rated 32 A. Breaking capacity spans 42 kA at 12...133 V AC to 10 kA at 440 V AC under IEC 60947-2, and 10 kA Icn at 400 V under IEC 60898-1. That makes it suitable for distribution boards where motor-start inrush tolerance and high short-circuit capacity are both required.

Mounts on DIN rail, fixed position. Terminals accept rigid conductors from 1 to 35 mm² or flexible from 1 to 25 mm², with a stripping length of 14 mm and a tightening torque of 3.5 N·m. IP20 rated, pollution degree 3, overvoltage category IV. An earth-leakage protection block can be added separately.
