Schneider Electric A9L16292
MPNA9L16292
Active

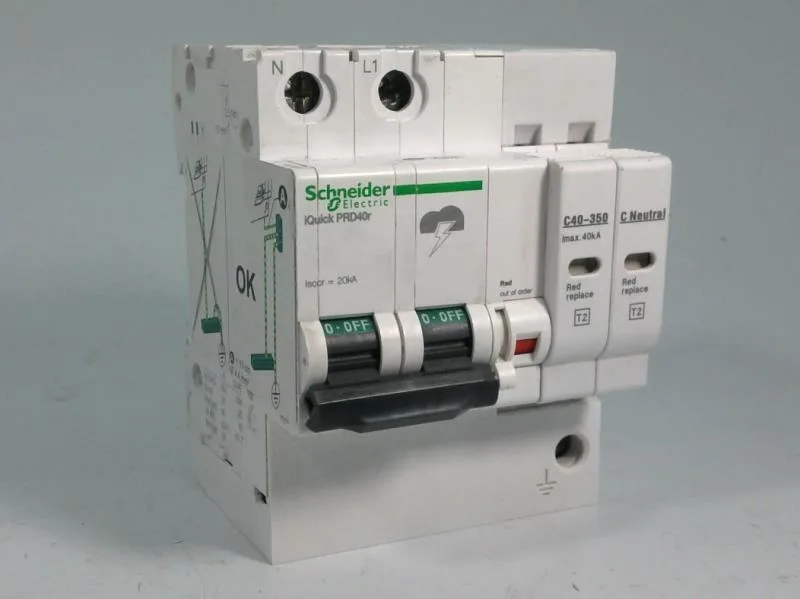

A9L16292 - MAX SURGE CURRENT: 20KA by SQUARE D
$157.48Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Acti9 |
| Surge arrester type | Electrical distribution network |
| Disconnector device type | Integrated circuit breaker - Icu 20 kA |
| Product or component type | Surge arrester with pluggable cartridge |
| Surge arrester class type | Type 2 |
| Signalling circuit voltage | 2 A/250 V AC 50/60 Hz |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50/60 Hz |
| Maximum [Up] voltage protection level | Common mode Common mode Differential mode <2.5 kV type 2 L/N |
| [Uc] maximum continuous operating voltage | Common mode: 264 V N/PE Common mode: 350 V L/PE Differential mode: 350 V L/N |
| Maximum discharge current | Common mode: 40 kA L/PE Common mode: 40 kA N/PE Differential mode: 40 kA L/N |
| Nominal discharge current | Common mode: 20 kA (L/PE) Common mode: 20 kA (N/PE) Differential mode: 20 kA (L/N) |
| Poles description | 1P + N |
All specifications
| Parameter | Value |
|---|---|
| IK degree of protection | IK05 conforming to IEC 62262 |
| Mounting mode | Clip-on (DIN rail) |
| Connections - terminals | Tunnel type terminal (upside) 2.5...35 mm² Tunnel type terminal (downside) 2.5...25 mm² |
| Relative humidity | 5...95 % |
| Operating altitude | 2000 m |
| Surge arrester technology | MOV + GDT |
| Depth | 75.9 mm |
| Width | 72 mm |
| Color | White (RAL 9003) |
| Height | 94 mm |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| 9 mm pitches | 8 |
| Quality labels | KEMA-KEUR NF |
| Earthing system | TN-S TT |
| Device short name | iQuick PRD40r |
| Remote signalling | With |
| Tightening torque | 2.5 N.m |
| Compatibility code | IQuick PRD40r |
| Device application | Distribution |
| Signal contacts composition | 1 SD (1 C/O) |
| Ambient air temperature for storage | -40...70 °C |
| Ambient air temperature for operation | -25...60 °C |
MPN
A9L16292
