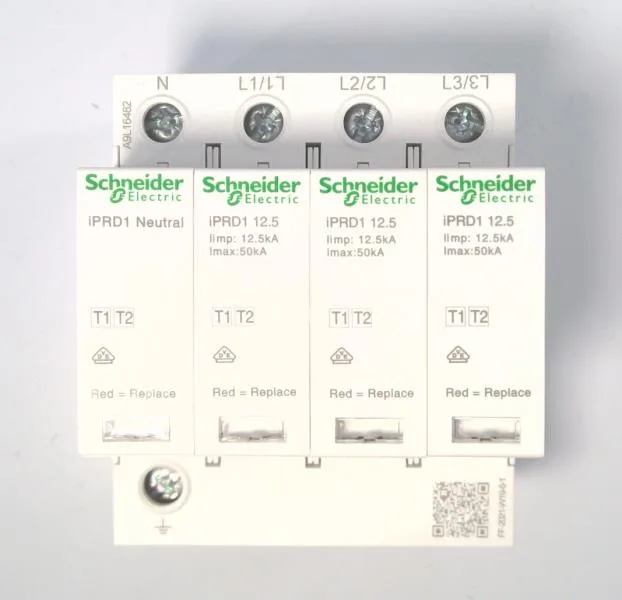

A9L16482 - ACTI9 IPRD1 12.5 by SQUARE D
$309.88Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Acti9 |
| Surge arrester type | Electrical distribution network |
| Disconnector device type | Associated fuse gG 160 A 120 kA standard Associated circuit breaker Compact NSX160E 80 A 25 kA standard |
| Product or component type | Surge arrester with pluggable cartridge |
| Surge arrester class type | Type 1 + 2 |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz |
| Maximum [Up] voltage protection level | <1.5 kV type 1 + 2 |
| [Uc] maximum continuous operating voltage | Differential mode: 350 V L/N Common mode: 255 V N/PE |
| Impulse current | 12.5 kA |
| Residual current | 0.003 mA N/PE |
| [Iimp] impulse current | Common mode: 50 kA N/PE Differential mode: 12.5 kA L/N |
| Maximum discharge current | 50 kA |
All specifications
| Parameter | Value |
|---|---|
| Nominal discharge current | 20 kA |
| Poles description | 3P + N |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Mounting mode | Clip-on (DIN rail) |
| Wire stripping length | 14 mm |
| Connections - terminals | Tunnel type terminal (phase) 10...25 mm² flexible Tunnel type terminal (phase) 10...35 mm² rigid Tunnel type terminal (earth) 16...25 mm² flexible Tunnel type terminal (earth) 16...35 mm² rigid |
| Pollution degree | 3 |
| Relative humidity | 5...95 % |
| Operating altitude | 2000 m |
| Surge arrester technology | MOV + GDT |
| Depth | 69 mm |
| Width | 72 mm |
| Color | White (RAL 9003) |
| Height | 89 mm |
| Material | PA6 |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| 9 mm pitches | 8 |
| Market segment | Small commercial Residential |
| Quality labels | CE EAC VDE |
| Earthing system | TT TN-S |
| Local signalling | Operating: mechanical indicator (white) End of life: mechanical indicator (red) |
| Device short name | iPRD1 12.5 |
| Remote signalling | With |
| Tightening torque | 3.5 N.m |
| Compatibility code | IPRD1 |
| Device application | Distribution |
| [Ut] temporary overvoltage | 337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode |
| Signal contacts composition | 1 SD (1 C/O) |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -25...60 °C |
