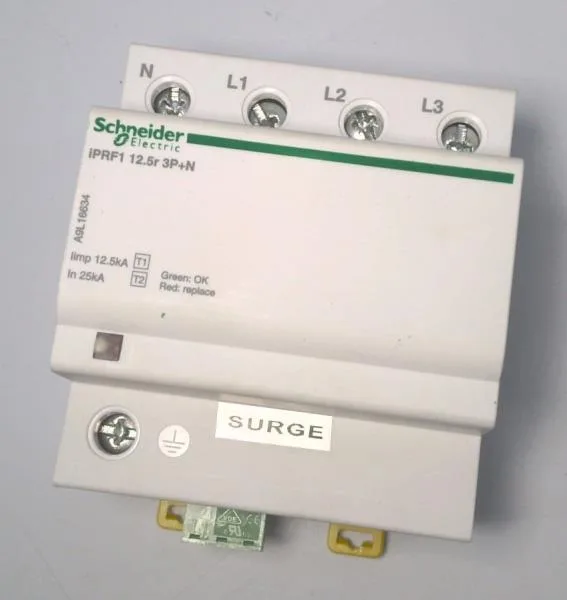

A9L16634 - IPRF1 12.5R MODULAR SURGE ARRESTER by SQUARE D
$369.57Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Acti9 |
| Surge arrester type | Electrical distribution network |
| Disconnector device type | Associated circuit breaker NG125N 80 A curve C - Icu 15 kA Associated circuit breaker NG125N 80 A curve C - Icu 25 kA Associated circuit breaker NG125H 80 A curve C - Icu 36 kA Associated circuit breaker NG125L 80 A curve C - Icu 50 kA Associated fuse gG 160 A standard Associated circuit breaker C120N 80 A curve C - Icu 10 kA |
| Product or component type | Surge arrester |
| Surge arrester class type | Type 1 + 2 |
| Short-circuit withstand | 25 kA |
| Signalling circuit voltage | 1.5 A/250 V AC 50/60 Hz |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50 Hz |
| Maximum [Up] voltage protection level | Common mode Differential mode <1.5 kV type 1 L/N |
| [Uc] maximum continuous operating voltage | Differential mode: 350 V L/N Common mode: 255 V N/PE |
| Impulse current | 12.5 kA |
| [Ifi] follow current | 0.1 kA common mode N/PE |
All specifications
| Parameter | Value |
|---|---|
| [Iimp] impulse current | Common mode: 50 kA N/PE 25 A.s Differential mode: 12.5 kA L/N 6.25 A.s |
| Maximum discharge current | 50 kA |
| Nominal discharge current | Differential mode: 25 kA (L/N) Common mode: 25 kA (N/PE) |
| Poles description | 3P + N |
| IK degree of protection | IK05 conforming to IEC 62262 |
| Mounting mode | Clip-on (DIN rail) |
| Connections - terminals | Tunnel type terminal10...35 mm² rigid Tunnel type terminal10...25 mm² flexible |
| Relative humidity | 5...95 % |
| Operating altitude | 2000 m |
| Surge arrester technology | MOV + GDT |
| Depth | 71 mm |
| Width | 72 mm |
| Color | White (RAL 9003) |
| Height | 84 mm |
| Material | PA6 |
| Product weight | 590 g |
| Standards | EN 61643-11:2012 IEC 61643-11:2011 |
| 9 mm pitches | 8 |
| Market segment | Small commercial Residential |
| Earthing system | TT TN-S |
| Device short name | iPRF1 12.5r |
| Remote signalling | With |
| Tightening torque | 2.5 N.m |
| Compatibility code | IPRF1 12.5r |
| Device application | Distribution |
| Signal contacts composition | 1 SD (1 C/O) |
| Ambient air temperature for storage | -40...80 °C |
| Ambient air temperature for operation | -25...60 °C |
