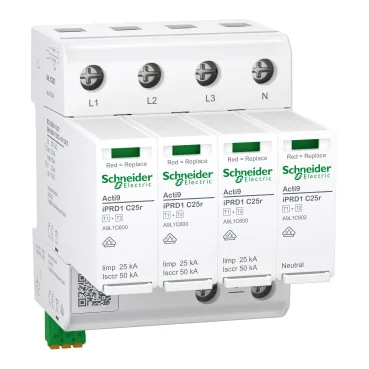

Surge arrester with pluggable cartridge, Acti9 iPRD1 C25r, 3P+N, 25kA, type 1+2, compact, with remote monitoring
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Acti9 |
| Surge arrester type | Electrical distribution network |
| Disconnector device type | Associated fuse gG 315 A |
| Product or component type | Surge arrester with pluggable cartridge |
| Surge arrester class type | Type 1 + 2 |
| Short-circuit withstand | 50 kA |
| Signalling circuit voltage | 1 A/250 V AC 1 A/125 V AC 0.5 A/48 V DC 0.5 A/24 V DC 0.5 A/12 V DC |
| [Ue] rated operational voltage | 230/400 V AC at 50/60 Hz |
| Maximum [Up] voltage protection level | Differential mode Common mode <1.5 kV N/PE |
| [Uc] maximum continuous operating voltage | Differential mode: 275 V L/N Common mode: 305 V N/PE |
| Impulse current | 25 kA |
| [Ifi] follow current | 50 kA L/N 100 kA N/PE |
All specifications
| Parameter | Value |
|---|---|
| [Iimp] impulse current | Differential mode: 25 kA L/N 12.5 A.s Common mode: 100 kA N/PE 50 A.s |
| Maximum discharge current | Differential mode: 65 kA L/N Common mode: 150 kA N/PE |
| Nominal discharge current | Differential mode: 25 kA (L/N) Common mode: 100 kA (N/PE) |
| Poles description | 3P + N |
| IK degree of protection | IK05 |
| IP degree of protection | IP20 with cartridges fitted and device wired |
| Mounting mode | Clip-on (DIN rail) |
| Cable cross section | 0.25...1.5 mm² solid cable for remote control 6...35 mm² solid stranded cable for power terminals 6...25 mm² flexible cable for power terminals 16...35 mm² solid stranded cable for earthing terminal 16...25 mm² flexible cable for earthing terminal |
| Wire stripping length | Remote control: 10 mm Power terminals: 18 mm Earthing terminal: 18 mm |
| Response time | < 100 ns L/N < 100 ns N/PE |
| Relative humidity | 5...95 % |
| Operating altitude | 0...2000 m |
| Surge arrester technology | GDT |
| Depth | 86 mm |
| Width | 72 mm |
| Color | White (RAL 9003) |
| Height | 105 mm |
| Material | Thermoplastic |
| Product weight | 691 g |
| Standards | IEC 61643-11:2011 EN 61643-11:2012 EN 61643-11:2018/A11 |
| 9 mm pitches | 8 |
| Quality labels | VDE |
| Earthing system | TT TN-S |
| Local signalling | Operating state: flag (green) Fault indication: flag (red) |
| Quantity per set | Set of 1 |
| Targeted country | Germany |
| Device short name | iPRD1 C25r |
| Remote signalling | With |
| Tightening torque | Power circuit: 4.5 N.m |
| Device application | Distribution |
| [Ut] temporary overvoltage | 442 V L/N 120 min withstand 1200 V N/PE 200 ms withstand |
| Ambient air temperature for operation | -40...85 °C |
