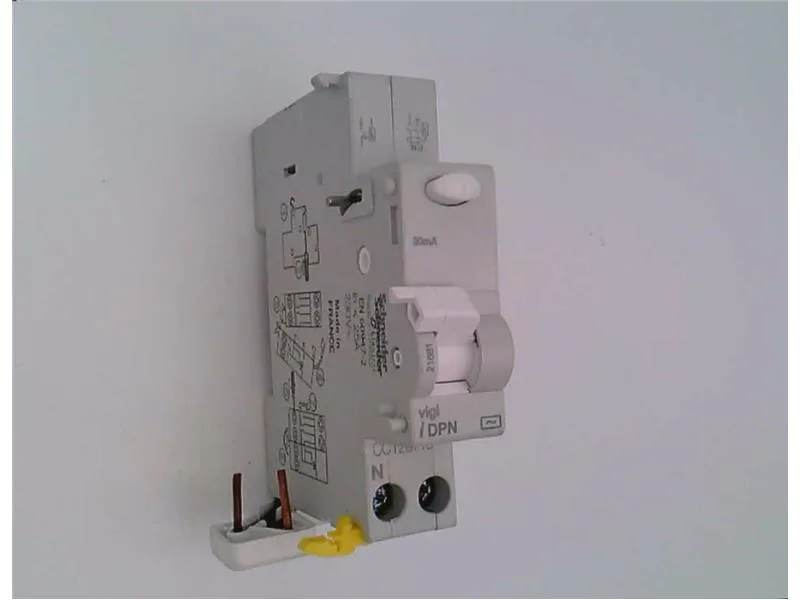

Schneider Electric A9N21480
MPNA9N21480
Obsolete
A9N21480 by TELEMECANIQUE
$103.97Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Product or component type | Add-on residual current device |
| Voltage | 400 V AC 50 Hz conforming to EN 61009-1 |
| [Ue] rated operational voltage | 230 V AC 50 Hz phase to neutral |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 61009-1 |
| Current | 25 A |
| Residual current tripping technology | Voltage independent |
| Network frequency | 50 Hz |
| Poles description | 1P + N |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Wire stripping length | 13 mm |
| Connections - terminals | Cable upstream 0.75...16 mm² rigid Cable upstream 0.33...10 mm² flexible |
| Electrical connection to MCB | By screws |
| Pollution degree | 3 conforming to EN 61009-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 70 mm |
| Width | 18 mm |
| Color | White |
| Height | 82 mm |
| Standards | IEC 60947-2 EN 61009-1 EN 61009-2-1 |
| Range | Prodis |
| 9 mm pitches | 2 |
| Tropicalisation | 2 conforming to IEC 60068-1 |
| Local signalling | ON/OFF indication |
| Neutral position | Left |
| Device short name | Vigi TG40 |
| Tightening torque | 2 N.m |
| Device location in system | Group incomer |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection class | Type AC |
| Ambient air temperature for storage | -40...60 °C |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -5...60 °C |
MPN
A9N21480
