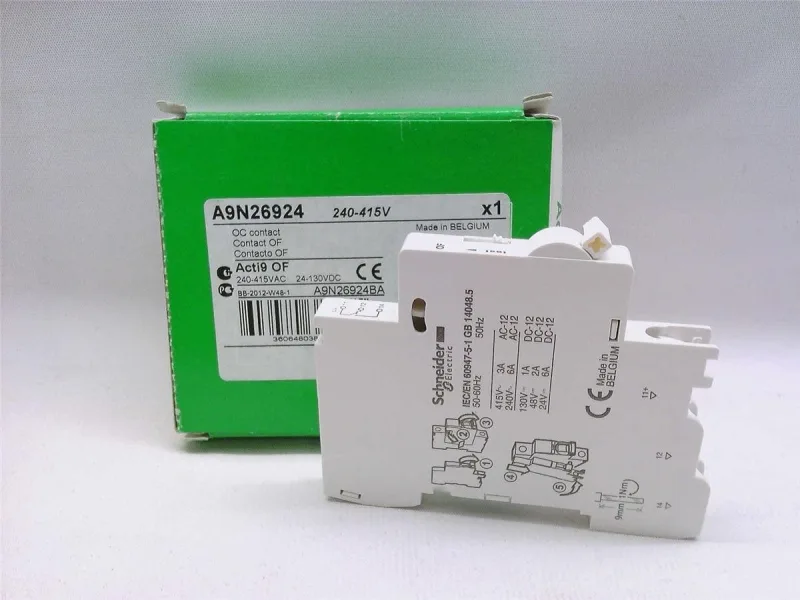

Schneider Electric A9N26924
MPNA9N26924
Obsolete
SQD A9N26924 CB ACCESSORY, AU|SQD A9N26924 CB ACCESSORY, AU
$22.86Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Acti9 |
| Product or component type | OC contact |
| Coil voltage | 24...415 V AC 50/60 Hz 24...130 V DC |
| Current | AC-12 3 A at 380...415 V, AC 50/60 Hz AC-12 6 A at 220...240 V, AC 50/60 Hz DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Wire stripping length | 9 mm |
| Connections - terminals | Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom): 1 cable(s) 0.5...2.5 mm² - rigid Screw clamp terminal (bottom): 2 cable(s) 1.5 mm² - flexible with ferrule |
| Pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| Depth | 73.5 mm |
| Width | 9 mm |
All specifications
| Parameter | Value |
|---|---|
| Color | White |
| Height | 85.3 mm |
| Product weight | 30 g |
| Standards | EN/IEC 60947-5-1 |
| 9 mm pitches | 1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Device short name | OF |
| Tightening torque | 1 N.m |
| Signal contacts composition | 1 C/O |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...50 °C |
| Comb busbar and distribution block compatibility | Top: YES |
MPN
A9N26924
