Overview
The A9N26927 is a Schneider Acti9 fault contact rated 415 V AC with a switching current of 3 A and a 1 C/O signal contact configuration. It mounts fixed and carries an IP20 rating. Schneider has discontinued this part.

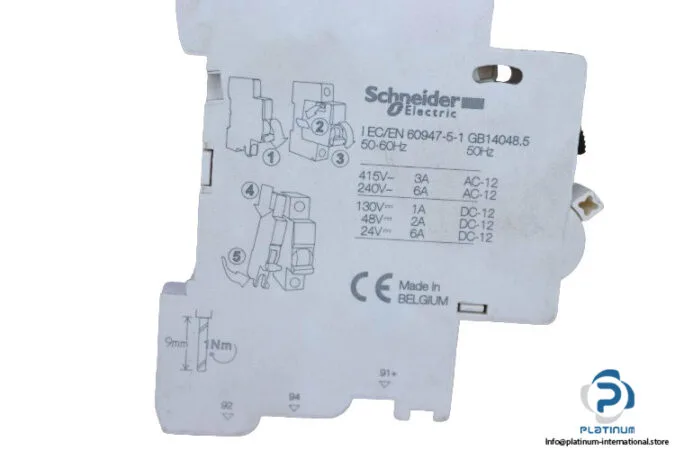

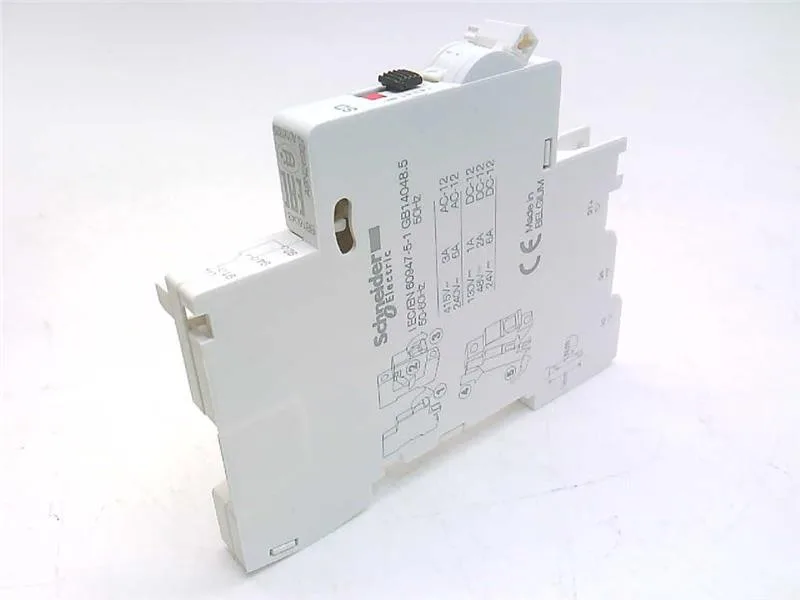

Schneider A9N26927 Acti9 fault contact, 415 V, 3 A, 1 C/O, discontinued
MPNA9N26927
Obsolete
Schneider A9N26927 Circuit Breaker Accessories — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
$24.99Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Range of product | Acti9 |
| Product or component type | Fault contact |
| Current | AC-12 3 A at 380...415 V, AC 50/60 Hz AC-12 6 A at 220...240 V, AC 50/60 Hz DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Wire stripping length | 9 mm |
| Connections - terminals | Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom) 1 cable(s) 0.5...2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule |
| Pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| Depth | 73.5 mm |
| Width | 9 mm |
| Color | White |
All specifications
| Parameter | Value |
|---|---|
| Height | 85.3 mm |
| Standards | EN/IEC 60947-5-1 |
| 9 mm pitches | 1 |
| Tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Device short name | SD |
| Tightening torque | 1 N.m |
| Signal contacts composition | 1 C/O |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...50 °C |
| Comb busbar and distribution block compatibility | Top: YES |
Product details
MPN
A9N26927
