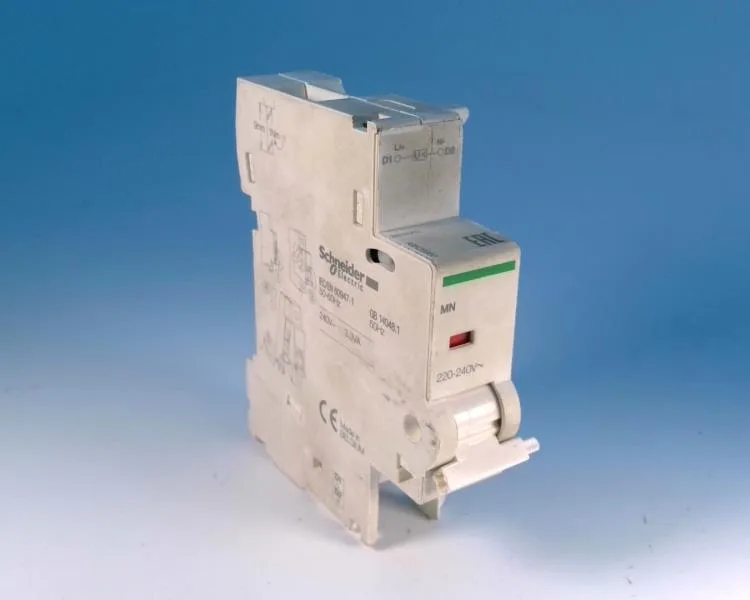

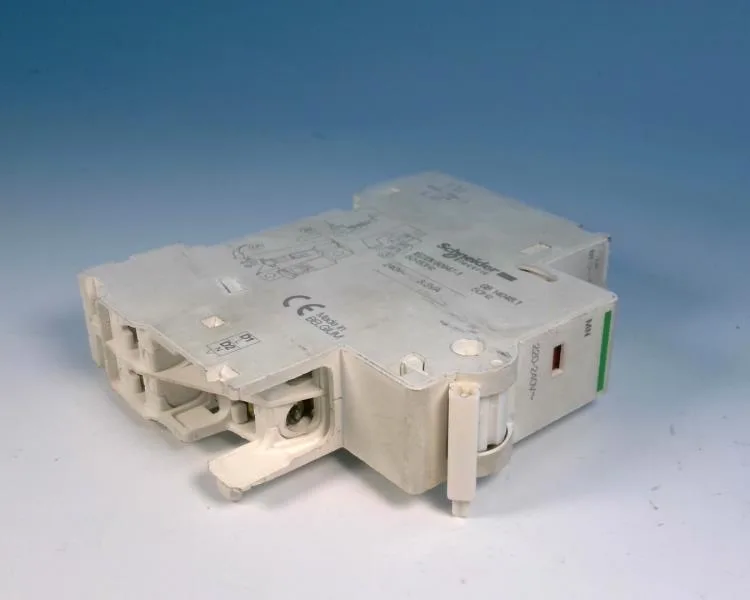

Schneider Electric A9N26960
MPNA9N26960
Active
CB ACCESSORY MN UVR UL 240 VAC|CB ACCESSORY MN UVR UL 240 VAC
$48.26Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Standard |
| Range of product | Acti9 |
| Product or component type | Undervoltage release |
| Coil voltage | 220...240 V AC 50/60 Hz |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Wire stripping length | 9 mm |
| Connections - terminals | Clamp terminal - 1 cable(s) 2.5 mm² - flexible Clamp terminal - 1 cable(s) 2.5 mm² - rigid Clamp terminal - 2 cable(s) 1.5 mm² - flexible Clamp terminal - 2 cable(s) 1.5 mm² - rigid |
| Relative humidity | 95 % at 55 °C |
| Depth | 73.5 mm |
| Width | 18 mm |
| Color | White |
All specifications
| Parameter | Value |
|---|---|
| Height | 82.5 mm |
| Standards | EN/IEC 60947-2 |
| 9 mm pitches | 2 |
| Tropicalisation | 2 conforming to EN/IEC 60947-2 |
| Local signalling | Action indicator |
| Device short name | MN |
| Tightening torque | 1 N.m |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...50 °C |
| Comb busbar and distribution block compatibility | Top: YES |
MPN
A9N26960
