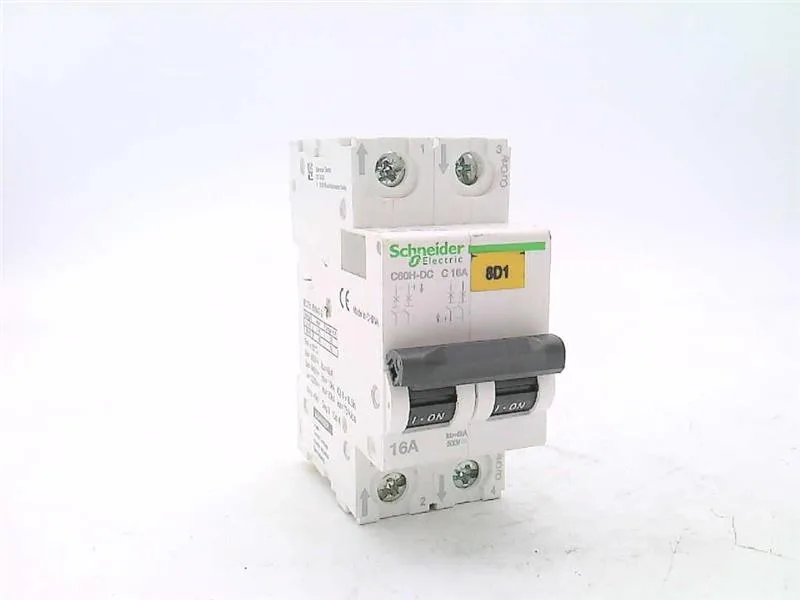

Schneider Electric A9N61531
MPNA9N61531
Active
A9N61531 - C60H by SQUARE D
$59.69Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | DC |
| Product or component type | Miniature circuit-breaker |
| Voltage | 500 V DC conforming to IEC 60947-2 500 V DC conforming to EN 60947-2 |
| [Ue] rated operational voltage | 500 V DC |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| Breaking capacity | 10 kA Icu at 440 V DC conforming to EN 60947-2 10 kA Icu at 440 V DC conforming to IEC 60947-2 6 kA Icu at 500 V DC conforming to EN 60947-2 6 kA Icu at 500 V DC conforming to IEC 60947-2 20 kA Icu at 220 V DC conforming to GB 14048.2 20 kA Icu at 220 V DC conforming to IEC 60947-2 20 kA Icu at 250 V DC conforming to GB 14048.2 20 kA Icu at 250 V DC conforming to IEC 60947-2 |
| Current | 16 A at 25 °C |
| [Ics] rated service breaking capacity | 15 kA 75 % conforming to EN 60947-2 - 220 V DC 15 kA 75 % conforming to IEC 60947-2 - 220 V DC 15 kA 75 % conforming to EN 60947-2 - 250 V DC 15 kA 75 % conforming to IEC 60947-2 - 250 V DC 4.5 kA 75 % conforming to EN 60947-2 - 500 V DC 4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC 7.5 kA 75 % conforming to EN 60947-2 - 440 V DC 7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC |
| Network frequency | 50/60 Hz |
| Poles description | 2P |
| Number of protected poles | 2 |
All specifications
| Parameter | Value |
|---|---|
| Utilisation category | Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| Mounting mode | Fixed |
| Mounting support | 35 mm symmetrical DIN rail |
| Pollution degree | 3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| Operating altitude | 2000 m |
| Color | White |
| Mechanical durability | 20000 cycles |
| Standards | EN 60947-2 IEC 60947-2 |
| Range | Acti9 |
| Curve code | C |
| 9 mm pitches | 4 |
| Tropicalisation | 2 conforming to IEC 60068-2 |
| Local signalling | ON/OFF indication |
| Device short name | C60H-DC |
| Tightening torque | Power circuit: 2.5 N.m top or bottom |
| Device application | Distribution |
| Overvoltage category | IV |
| Trip unit technology | Thermal-magnetic |
| Earth-leakage protection | Without |
| Provision for padlocking | Padlockable |
| Suitability for isolation | Yes conforming to IEC 60947-2 Yes conforming to EN 60947-2 |
| Contact position indicator | Yes |
| Locking options description | In position O |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -25...70 °C |
| Comb busbar and distribution block compatibility | Top or bottom: standard |
MPN
A9N61531
