Schneider Electric A9R11491
MPNA9R11491
Active

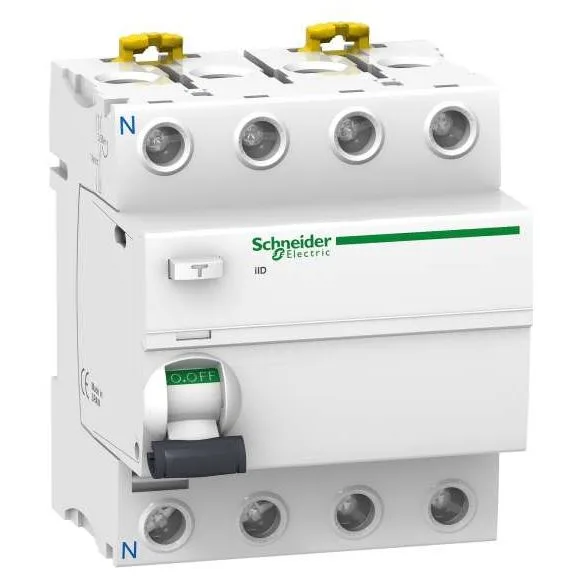

A9R11491 - IID 4P by SQUARE D
$375.92Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Network type | AC |
| Product or component type | Residual current circuit breaker (RCCB) |
| Voltage | 500 V AC 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Surge current | 250 A |
| Current | 100 A |
| Residual current tripping technology | Voltage independent |
| Rated conditional short-circuit current | 10 kA |
| Network frequency | 50/60 Hz |
| Poles description | 4P |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Wire stripping length | 14 mm for top or bottom connection |
| Connections - terminals | Single terminal top or bottom 1...35 mm² rigid Single terminal top or bottom 1...25 mm² flexible Single terminal top or bottom 1...25 mm² flexible with ferrule |
| Pollution degree | 3 |
| Depth | 73.5 mm |
| Width | 72 mm |
| Color | White |
| Height | 91 mm |
| Electrical durability | AC-1: 10000 cycles |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 61008-1 |
| Range | Acti9 |
| 9 mm pitches | 8 |
| Neutral position | Left |
| Device short name | iID |
| Tightening torque | 3.5 N.m top or bottom |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 30 mA |
| Contact position indicator | Yes |
| Locking options description | Padlocking device |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1 |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | Idm 1500 A Im 1500 A |
| Ambient air temperature for storage | -40...85 °C |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -5...60 °C |
MPN
A9R11491
