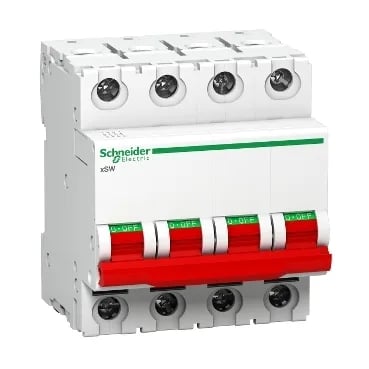

Schneider Electric A9S4P063
MPNA9S4P063
Active
Acti9 Isolator xSW 4P 63A 2.5kA 415V AC
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Toggle |
| Range of product | ISW 40...125 |
| Product or component type | Isolator |
| Supply voltage | 415 V AC |
| Voltage | 500 V |
| [Uimp] rated impulse withstand voltage | 4 kV |
| [Icw] rated short-time withstand current | 0.787 kA during 300 ms |
| [Ie] rated operational current | 63 A at 415 V AC |
| [Icm] rated short-circuit making capacity | 1 kA switch-disconnector alone at 50/60 Hz |
| Total power losses | 16.4 W |
| Power losses per pole | 4.1 W |
| Poles description | 4P |
All specifications
| Parameter | Value |
|---|---|
| Utilisation category | AC-22A |
| IP degree of protection | IP20 |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| Connection pitch | 18 mm between phases |
| Wire stripping length | 9 mm |
| Connections - terminals | Tunnel type terminal (top and bottom) - 1...35 mm² - rigid Tunnel type terminal (top and bottom) - 1...25 mm² - flexible Tunnel type terminal (top and bottom) - 1...25 mm² - flexible with ferrule |
| Pollution degree | 3 |
| Relative humidity | 95 % at 55 °C |
| Depth | 78.5 mm |
| Width | 72 mm |
| Color | White |
| Height | 81 mm |
| Product weight | 0.48 kg |
| Electrical durability | 1500 cycles |
| Mechanical durability | 8500 cycles |
| Standards | IS/IEC 60947-3 |
| Range | Acti9 |
| Tropicalisation | 2 conforming to IEC 60068-2-30 |
| Local signalling | ON/OFF indication |
| Tightening torque | 3.5 N.m |
| Compatibility code | SW |
| Device application | Isolation |
| Product destination | Distribution board |
| Suitability for isolation | Yes |
| Total number of 18 mm modules | 4 |
| Ambient air temperature for storage | -40...85 °C |
| Ambient air temperature for operation | -30...70 °C |
| Comb busbar and distribution block compatibility | Downstream: biconnect |
MPN
A9S4P063
