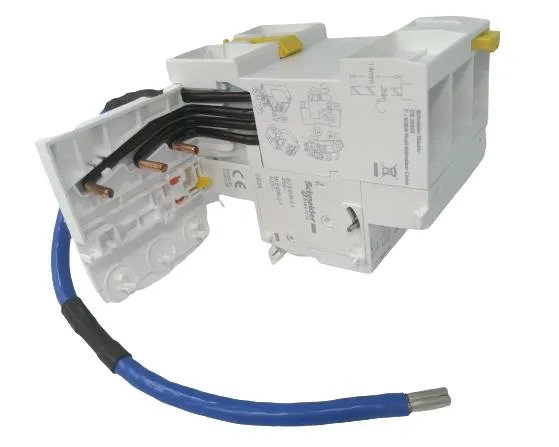

The A9V06763: Physical fit: 73.5 mm deep, 108 mm wide, 91 mm high — takes 6 modular pitches (9 mm each) on DIN rail. Clips on, screws directly to the downstream MCB (tunnel terminals, 3.5 N·m torque, wire up to 35 mm² rigid). The 14 mm strip length and left-side neutral position are standard for Acti9, so busbar compatibility is guaranteed when you use the matching comb busbar.
Production status is active — no end-of-life notice, no substitution dance. This is a current catalog line. The part is specified for outgoing feeder protection in residential, commercial, and light industrial panels (IP20 enclosure, IP40 in modular cabinet). Standards: EN/IEC 61009-1 and -2-1, pollution degree 3, impulse withstand 6 kV.
