Schneider Electric A9W21225
MPNA9W21225
Active

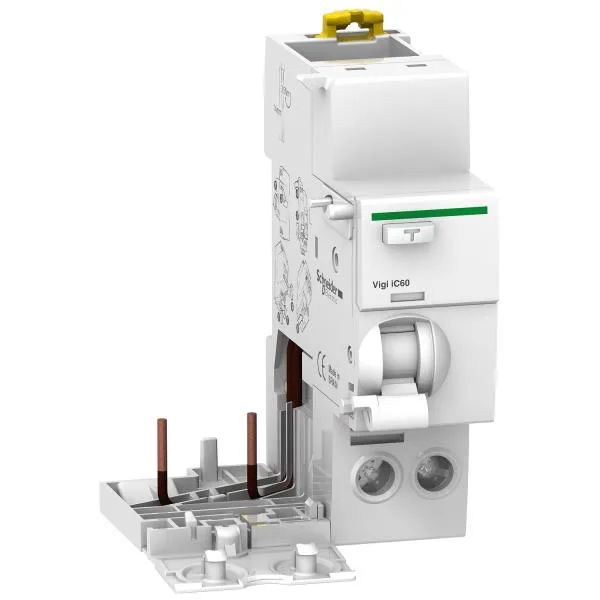

A9W21225 - EARTH LEAKAGE by MERLIN GERIN
$66.04Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Product or component type | Add-on residual current device |
| Earth leakage protection type | Type A |
| Voltage | 500 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 230...240 V AC 50/60 Hz conforming to EN/IEC 61009-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Current | 25 A |
| Residual current tripping technology | Voltage independent |
| Network frequency | 50/60 Hz |
| Poles description | 2P |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
All specifications
| Parameter | Value |
|---|---|
| Mounting support | DIN rail |
| Wire stripping length | 14 mm |
| Connections - terminals | Tunnel type terminals downside 1...25 mm² rigid Tunnel type terminals downside 1...16 mm² flexible |
| Electrical connection to MCB | By screws |
| Pollution degree | 3 conforming to IEC 60947-2 |
| Depth | 74 mm |
| Width | 63 mm |
| Height | 91 mm |
| Standards | EN 61009-1 IEC 61009-1 |
| Range | Acti9 |
| 9 mm pitches | 3 |
| Local signalling | Trip indicator |
| Device short name | Vigi iC60 |
| Tightening torque | 2 N.m |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 30 mA |
| Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to IEC 61009-1 |
| Ambient air temperature for storage | -40...85 °C |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -25...60 °C |
MPN
A9W21225
