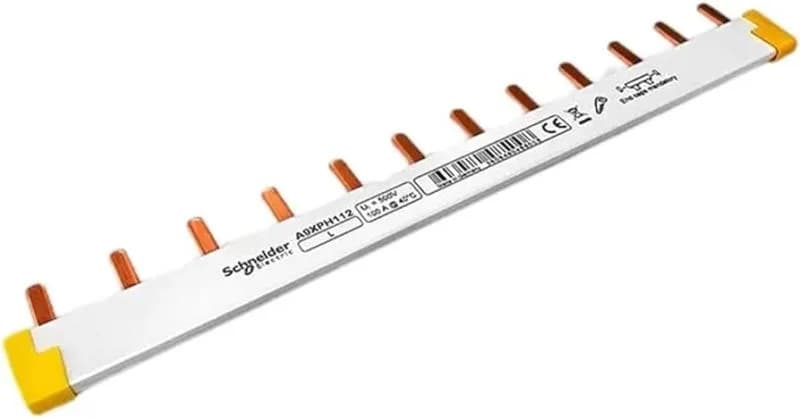

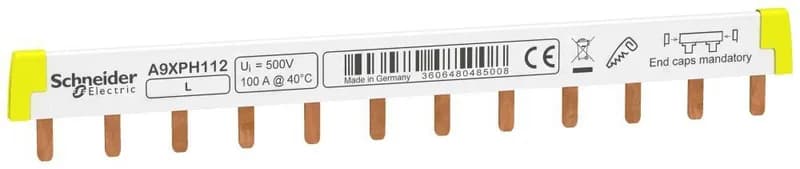

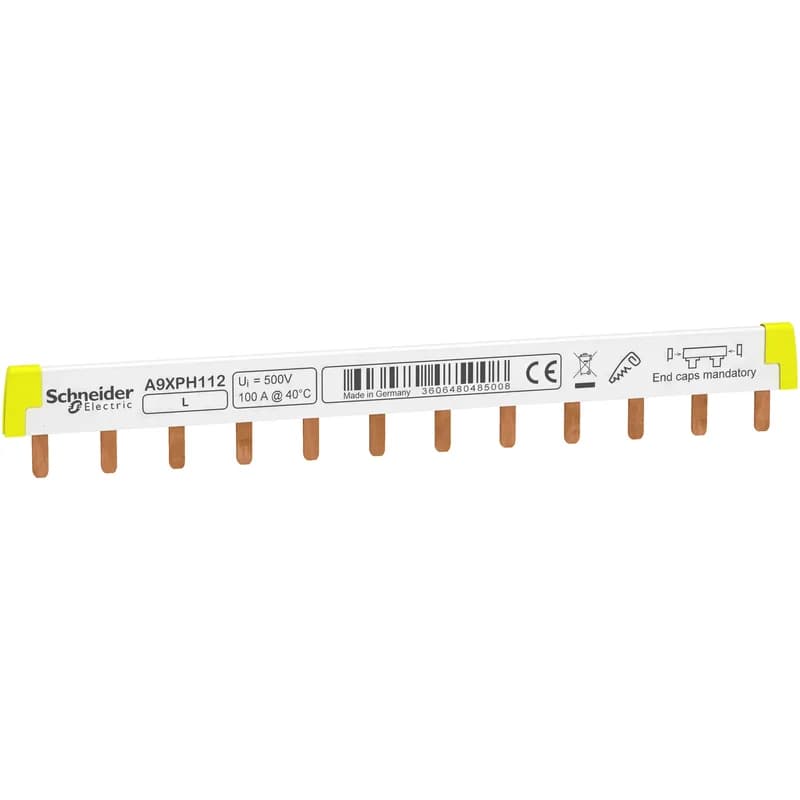

Schneider Electric A9XPH112
MPNA9XPH112
Active
Bus Bar, Acti 9/Multi 9, 100A, 1P, 12 Modules of 18mm|Bus Bar, Acti 9/Multi 9, 100 Amp, 1-Pole, 12 Modules of 18 mm
$5.98 – $15.19Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Connector type | tooth |
| Distribution type | L |
| Product or component type | Comb busbar |
| Voltage | 500 V AC IEC 61439-2 |
| [Ue] rated operational voltage | 415 V AC |
| [Ie] rated operational current | 100 A 104 °F (40 °C) |
| Poles configuration for 1 way | 1 x 1P |
| IP degree of protection | IP20 with end-pieces and tooth covers |
| Mounting mode | Horizontal |
| Mounting location | Top or bottom tunnel type terminals Top or bottom double terminal |
| Connection pitch | 0.7 in (18 mm) |
| Pollution degree | 3 IEC 60947-7-1 |
All specifications
| Parameter | Value |
|---|---|
| Color | White RAL 9003) |
| Width | 8.7 in (220 mm) |
| Standards | EN/IEC 61439-1 |
| Range | Acti9 |
| Marking | L |
| Category | US10DE200908 |
| Insulation | Insulated |
| 9 mm pitches | 24 |
| Number of ways | 12 ways 1 L |
| Fire resistance | 1760 °F (960 °C) 30 s ) IEC 60695-2-1 |
| Lines description | 1L |
| Device presentation | Cuttable |
| Distance between way | 0.7 in (18 mm) |
| Length in 18 mm modules | 12 |
| Accessory (separate part category) | Connection accessory |
MPN
A9XPH112
