Schneider Electric A9Y80725
MPNA9Y80725
Active

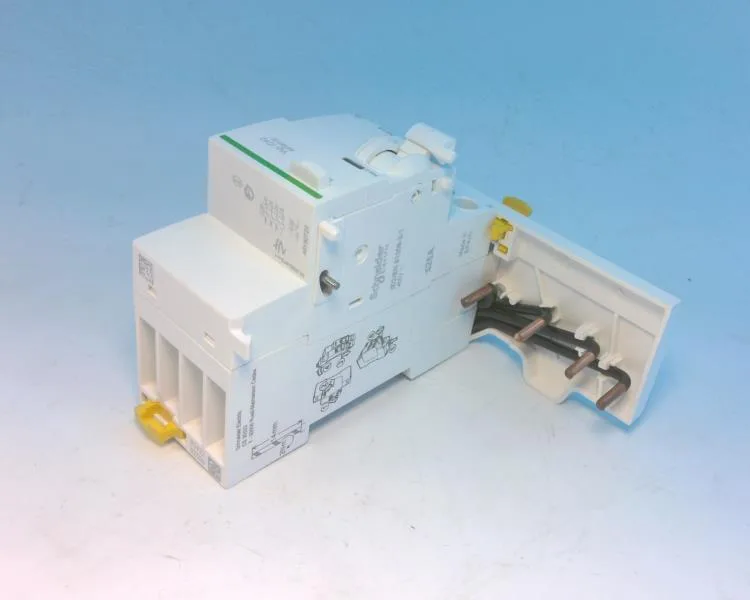

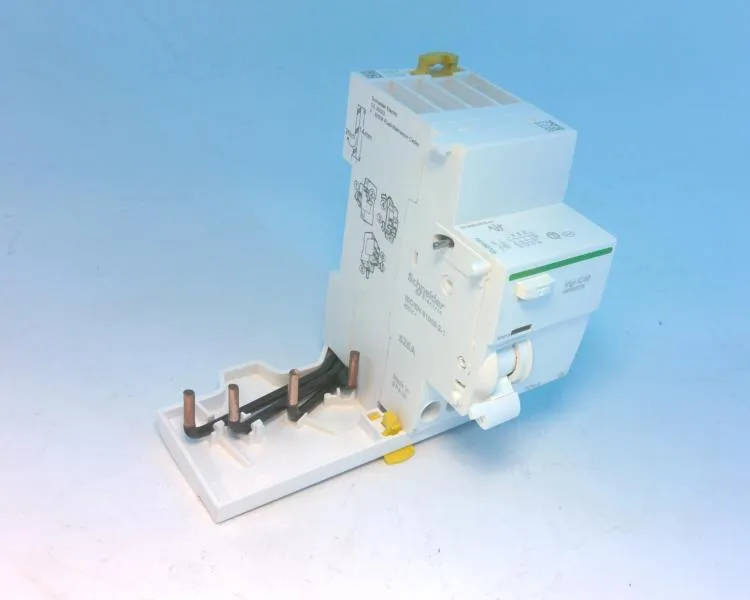

A9Y80725 - ADD-ON RESIDUAL CURRENT DEVICE by SQUARE D
$145.21Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Network type | AC |
| Product or component type | Add-on residual current device |
| Voltage | 440 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| [Ue] rated operational voltage | 400 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 61009-2-1 |
| Current | 25 A |
| Residual current tripping technology | Voltage independent |
| Network frequency | 50/60 Hz |
| Poles description | 3P + N |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
All specifications
| Parameter | Value |
|---|---|
| Wire stripping length | 14 mm for bottom connection |
| Connections - terminals | Tunnel type terminal bottom 1...16 mm² rigid Tunnel type terminal bottom 1...10 mm² flexible |
| Electrical connection to MCB | By screws |
| Pollution degree | 3 conforming to EN/IEC 61009-2-1 |
| Relative humidity | 95 % at 55 °C |
| Operating altitude | 2000 m |
| Depth | 74 mm |
| Width | 90 mm |
| Color | White |
| Height | 99.5 mm |
| Electrical durability | 10000 cycles |
| Mechanical durability | 20000 cycles |
| Standards | EN/IEC 61009-2-1 |
| Range | Acti9 |
| 9 mm pitches | 4 |
| Quality labels | IMQ OVE |
| Local signalling | Fault indication |
| Neutral position | Left |
| Device short name | Vigi iC40 |
| Tightening torque | 2 N.m bottom |
| Device location in system | Outgoer |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection class | Type A |
| Ambient air temperature for storage | -40...85 °C |
| Earth-leakage protection time delay | Instantaneous |
| Ambient air temperature for operation | -25...60 °C |
MPN
A9Y80725
