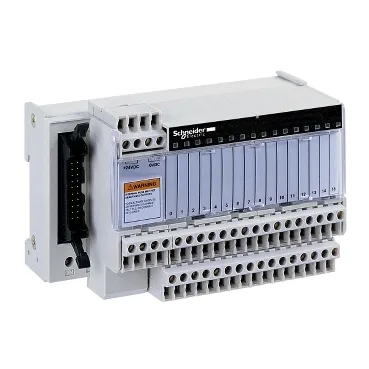

Schneider Electric ABE7-H08R10
MPNABE7-H08R10
ABE7-H08R10 by TELEMECANIQUE
$22.86Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Sub-Base type | I/O sub-base |
| Range of product | Modicon ABE7 |
| Voltage insulation | 2000 V |
| Current_max | 4.1 A |
| Short-Circuit protection | 6.3 A internal fuse, 5 x 20 mm, fast blow PLC end) |
| Installation category | II IEC 60664-1 |
| Connector_type | HE-10 |
| Connections - terminals | Screw type terminals, 1 x 0.09...1 x 1.5 mm² AWG 28...AWG 16) flexible with cable end Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12) solid Screw type terminals, 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14) flexible without cable end Screw type terminals, 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20) flexible with cable end Screw type terminals, 2 x 0.2...2 x 2.5 mm² AWG 24...AWG 14) solid |
| Number of terminal per channel | 1 |
| Shock | 15 gn 11 ms IEC 60068-2-27 |
| Pollution degree | 2 IEC 60664-1 |
| Width | 83.82 |
All specifications
| Parameter | Value |
|---|---|
| IP rating | IP2X conforming to IEC 60529 |
| Torque | 5.3 lbf.in (0.6 N.m) flat Ø 3.5 mm |
| Pin number | 20 pins |
| Status LED | 1 LED (Green) power ON |
| Fixing_mode | By clips (35 mm symmetrical DIN rail) By screws (solid plate with fixing kit) |
| Package_type | PCE |
| Channels | 8 |
| Resistance | 1382 °F (750 °C) IEC 60695-2-11 |
| Voltage | 0.2 |
| Supply voltage | 19 |
| Switching current | 0.5 |
| Storage temperature | -40...176 °F (-40...80 °C) IEC 61131-2 |
| Polarity distribution | No |
| Number of horizontal rows | 1 |
| Main_product_or_component_type | Passive discrete I/O sub-base |
| Operating temperature | 23 |
| Ordering and shipping details (Category) | 22375-INTERFACE MODULE(ABA,R,S) |
MPN
ABE7-H08R10
